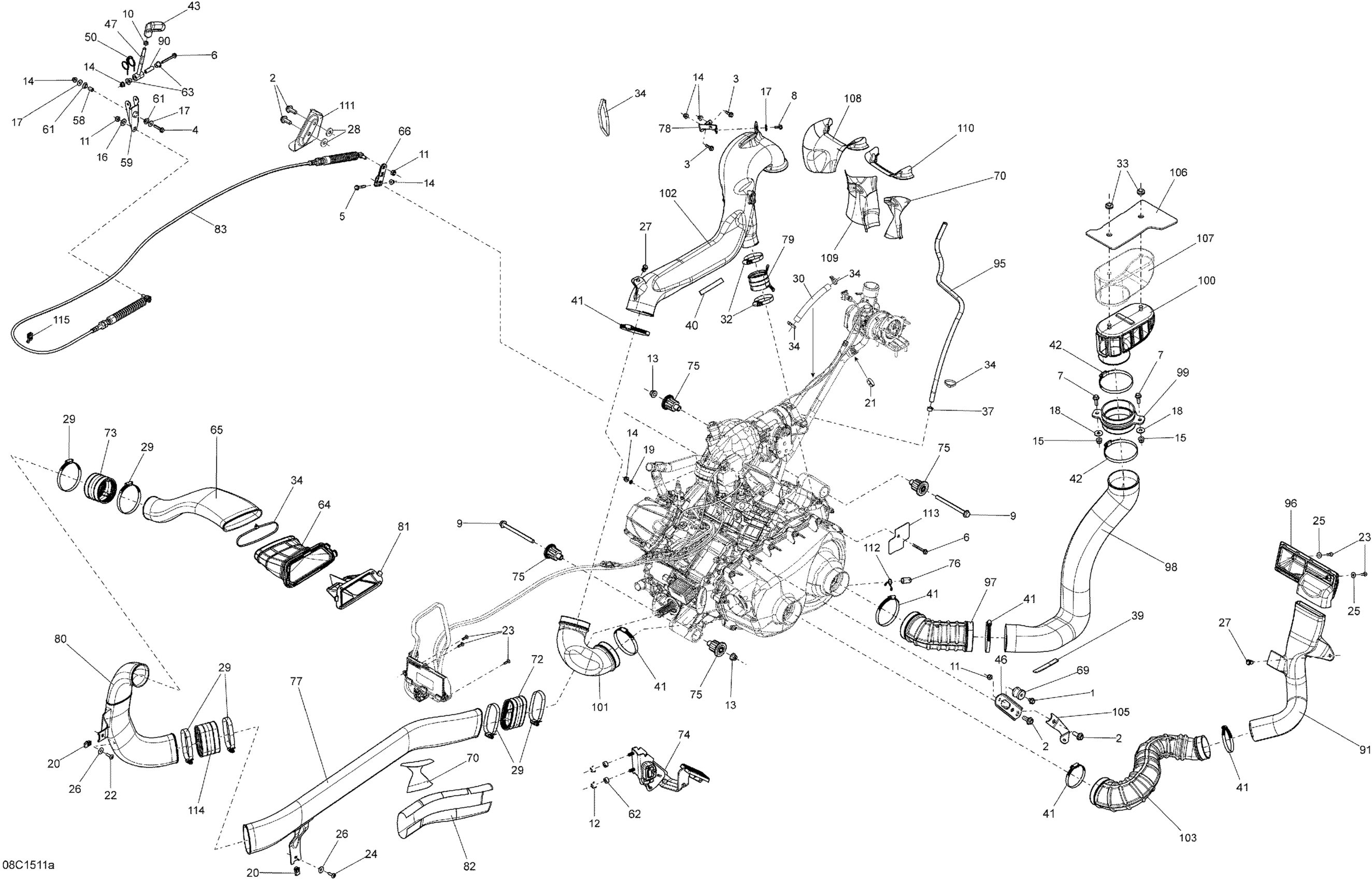

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Engine _Turbo_08C1511a Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

2

Hex. Flange Screw M10 X 25

207602544

$1.33

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 35

207663544

$0.74

6

Hex. Flange Screw M6 X 50

207665044

$3.38

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Flange Screw M6 X 16

210261650

$1.22

9

Hex. Flange Screw M10 X 125

230602546

$6.08

10

Hex. Jam Nut M8

232180491

$6.18

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Hex. Flange Nut M8

233081416

$1.63

13

Hex. Flange Elastic Nut M10

233201436

$1.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Hex. Flange Screw M8 X 25

207682534

$0.90

16

Flat Washer 10 mm

234001410

$0.98

17

Flat Washer 6 mm

234062410

$0.64

18

Flat Washer 8 mm

234082410

$1.11

19

External Serrated Lock Washer 6 mm

234461608

$0.92

20

Panel Nut M6 X 1.0

250100198

$1.73

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

22

Torx Screw M6 X 20

250000722

$1.34

23

Torx Screw K50 X 16

250000720

$1.39

24

Torx Screw M6 X 20

250000722

$1.34

25

Washer M5

250200025

$0.61

26

Flat Washer

250200082

$0.35

27

Tuflok Plastic Rivet

293150230

$1.21

28

Washer

503190439

$5.82

29

Norma Clamp

293650091

$4.60

30

Tubing 16 Mm 1000Mm Long

219704408

$6.23

32

Norma Gear Clamp

293650118

$9.74

33

Grommet

709000582

$4.38

34

Tie Wrap 368 mm

293750008

$0.85

37

Spring Clamp

414415200

$0.83

39

Gasket, Neoprene 2000Mm Long

219704476

$12.64

40

Gasket, Neoprene 2000Mm Long

219704476

$12.64

41

Norma Clamp

514052924

$10.58

42

Norma Gear Clamp

514052983

$11.39

43

Lever Handle

707000284

$18.43

46

Upper Engine Bracket

707000707

$5.54

47

Upper Lever Arm

707000711

$36.89

50

Lever Arm Spring

707000750

$2.75

58

Bushing

707000801

$2.48

59

Lower Lever Arm

707000828

$16.89

61

Flanged Bushing

707000847

$1.00

62

Bushing

707000848

$1.08

63

Flanged Bushing

707000869

$2.20

64

Adaptor

707000908

$36.89

65

Primary Air Intake

707000909

$23.05

66

Lever

707000911

$18.43

69

Rubber Isolator

707000949

$9.00

70

Reflective Sheet

707000991

$9.29

72

Flexibale Adaptor

707002585

$14.75

73

Flexibale Adaptor

707002585

$14.75

74

Accelerator Pedal

707001166

$281.51

75

Anti Vibration Buffer

707001170

$23.05

76

Plug

707001185

$1.37

77

Air Inlet

707001228

$50.74

78

Rear Support

707001232

$8.46

79

Adaptor

707001274

$15.35

80

Air Inlet

707001339

$16.89

81

CVT Filter

707001344

$14.75

82

Reflector

707001346

$27.66

83

Shifting Cable

707001348

$64.58

90

Bushing

707001376

$4.22

91

Air Inlet

707001401

$46.12

95

Hose

219704549

$47.66

96

Filter

707001422

$19.20

97

AIR INLET - Call your local BRP dealership

707001727

Unavailable

98

Air Inlet

707001728

$59.20

99

AIR INLET - Call your local BRP dealership

707001729

Unavailable

100

AIR INLET - Call your local BRP dealership

707001730

Unavailable

101

CVT OUTLET - Call your local BRP dealership

707001732

Unavailable

102

CVT OUTLET - Call your local BRP dealership

707001733

Unavailable

103

Hose

707001734

$64.58

105

FRONT SUPPORT - Call your local BRP dealership

707001735

Unavailable

106

COVER - Call your local BRP dealership

707001741

Unavailable

107

CVT Filter

707001742

$39.97

108

REFLECTIVE SHEET - Call your local BRP dealership

707001745

Unavailable

109

REFLECTIVE SHEET - Call your local BRP dealership

707001746

Unavailable

110

REFLECTIVE SHEET - Call your local BRP dealership

707001752

Unavailable

111

Cable Support | Engine 1000

707000919

Unavailable

112

Retainer Clip

707800506

$10.98

113

Insulator Pad

710000073

$11.06

114

Flexibale Adaptor

707002585

$14.75

115

Clip Tie-Rap

710002899

$8.45
