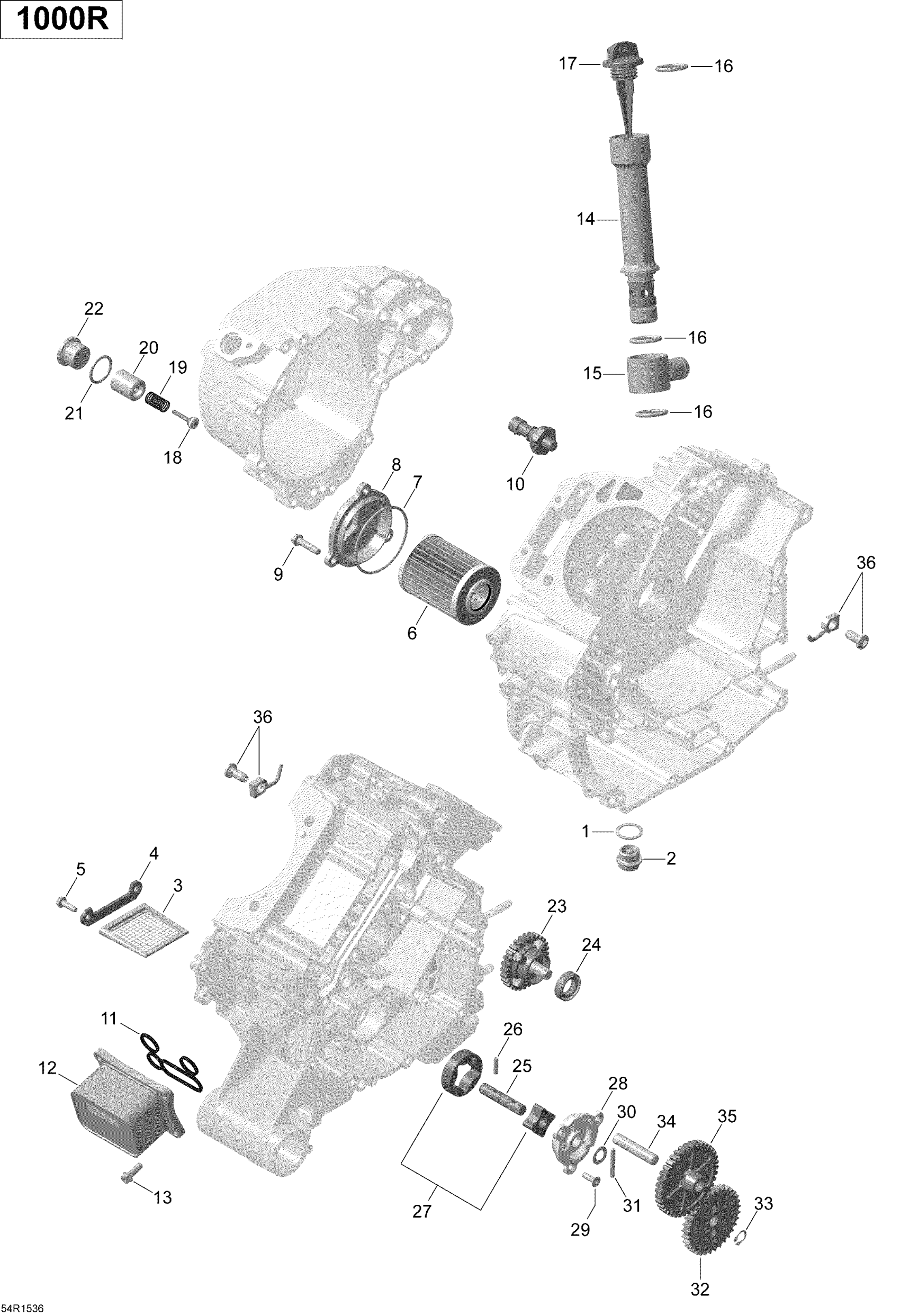

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Engine Lubrication Turbo _54R1536 Diagram

#

Description
Price

1

Crush Washer

420552280

$2.99

2

Drain Plug M18 X 1.5

420840278

$23.05

3

Oil Sieve

420256322

$27.66

4

Cover Sieve

420612070

$4.98

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$11.14

7

O-Ring

420230923

$2.59

8

Oil Filter cover

420612135

$11.11

9

Torx Flange Screw M6 X 25

420641238

$2.68

10

Oil Pressure Switch

420256915

$38.43

11

Oil Seal

420430325

$8.45

12

Radiator

420890181

$92.28

13

Torx Flange Screw M6 X 16

420641048

$2.46

14

Oil Lever Tube

420856927

$92.28

15

Hose Nipple

420456370

$36.89

16

O-Ring

420631640

$2.06

17

Oil Dipstick

420856810

$4.98

18

Pressure Relief Valve

420656370

$16.89

19

Compression Spring

420939485

$11.98

20

Housing

420256487

$7.23

21

Gasket Ring

420650465

$11.52

22

Plug Screw

420640271

$13.29

23

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$86.89

24

Oil Seal

420430555

$17.66

25

Oil Pump Shaft

420237059

$28.43

26

Needle Pin

420232731

$1.56

27

Oil Pump Rotor

420256348

$61.72

28

Oil Pump Cover

420210646

$46.89

29

Torx Head Screw M5 X 16

420640823

$1.85

30

Thrust Washer

420827590

$3.86

31

Needle Pin

420232431

$3.67

32

Oil Pump Gear, 33 Teeth

420434320

$13.29

33

Circlip

504152282

$3.11

34

Location Pin 10 M6x50

420229302

$3.11

35

Idle Gear, 38 Teeth

420434300

$13.29

36

Oil Nozzle

420656048

$36.89
