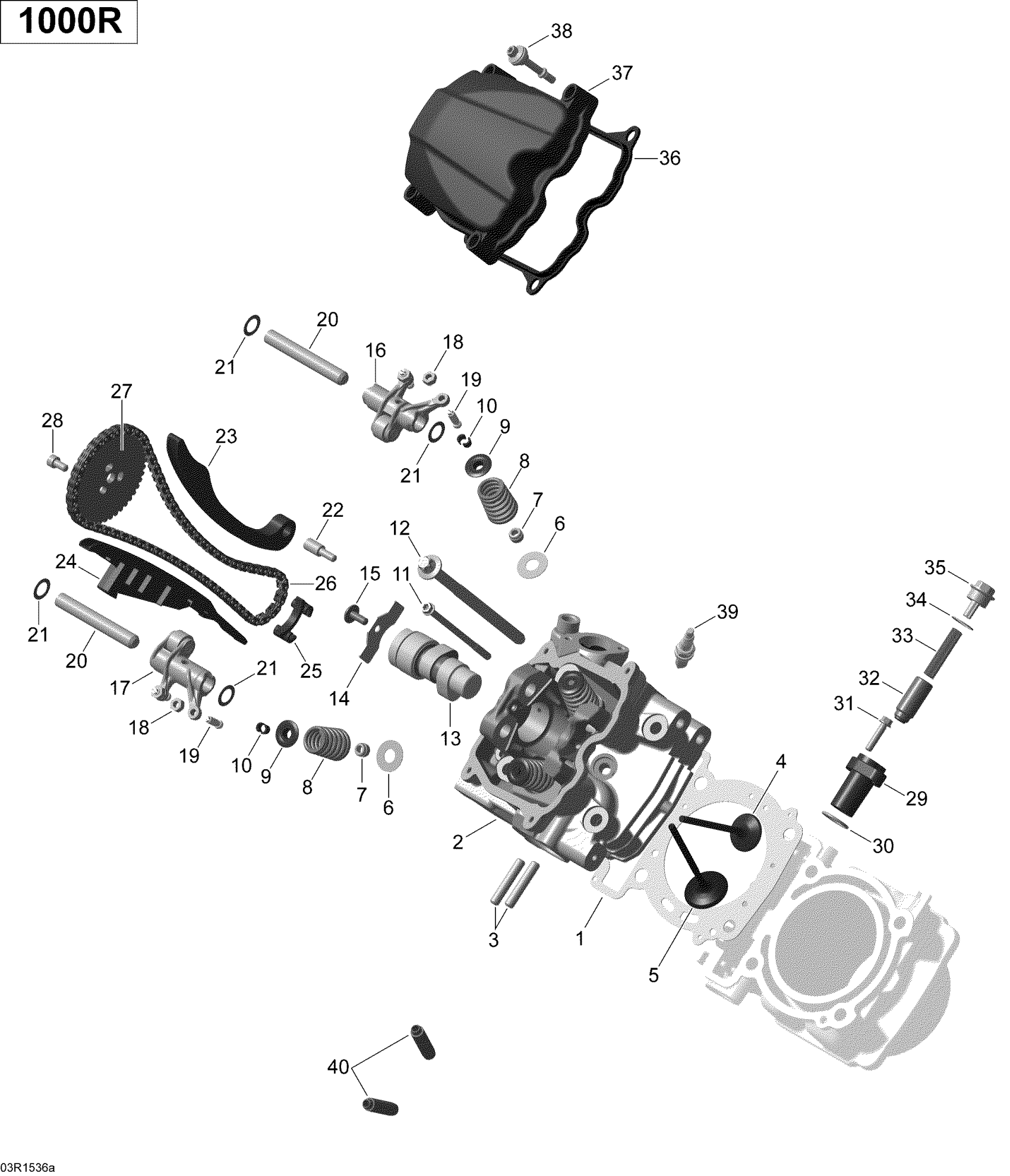

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Cylinder Head, Front Turbo _03R1536a Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$76.09

2

Cylinder Front Ass'y | Includes 2a to 3

420413106

$660.49

3

Stud M8 x 26

420941014

$12.15

4

Exhaust Valve 31MM

420253172

Unavailable

5

Intake Valve 36.5mm

420253162

$39.31

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420430420

$6.73

8

Valve Spring

420239292

$13.40

9

Valve Spring Retainer

420254137

$13.40

10

Valve Cotter

420254602

$1.88

11

Torx Flange Screw M6 X 105

420440612

$7.01

12

Torx Screw M10 X 159

420441287

$11.81

13

Camshaft

420281078

$202.96

14

Holding Strip

420627743

$17.13

15

Torx Screw M6 X 16

420241529

$1.79

16

Rocker Arm Inlet

420653067

$66.39

17

Rocker Arm Exhaust

420653075

$73.85

18

Hex Nut M6

420242913

$0.51

19

Adjustment Screw M6 X 0.75

420241337

$4.75

20

Pin 12 X 87.5

420229714

$26.09

21

Shim

420944382

$3.88

22

Bearing Screw M6

420240943

$4.16

23

Chain Tension Guide

420436019

$56.69

24

Chain Guide

420236583

$8.24

25

Chain Guide

420236351

$13.70

26

Silent Chain

420297068

$85.04

27

Timing Gear 42T

420254438

$17.13

28

Allen Screw M6 X 12

420840032

$4.15

29

Chain Tensioner Housing

420236510

$10.76

30

O-Ring

420430373

$3.01

31

Torx Flange Screw M6 X 25

420641238

$3.07

32

Chain Tensioner Plunger

420236521

$14.04

33

Spring

420238120

$7.01

34

O-Ring

420250890

$2.87

35

Plug Screw

420641150

$7.01

36

Gasket

420630260

$8.09

37

Valve Cover

420610393

$25.34

38

Hex Screw M6 X 30

420440568

$8.15

39

Spark Plug, NGK LMAR9D-J

715900357

$21.61

40

Not Available As Spare Part - Friction Washer

Unavailable
