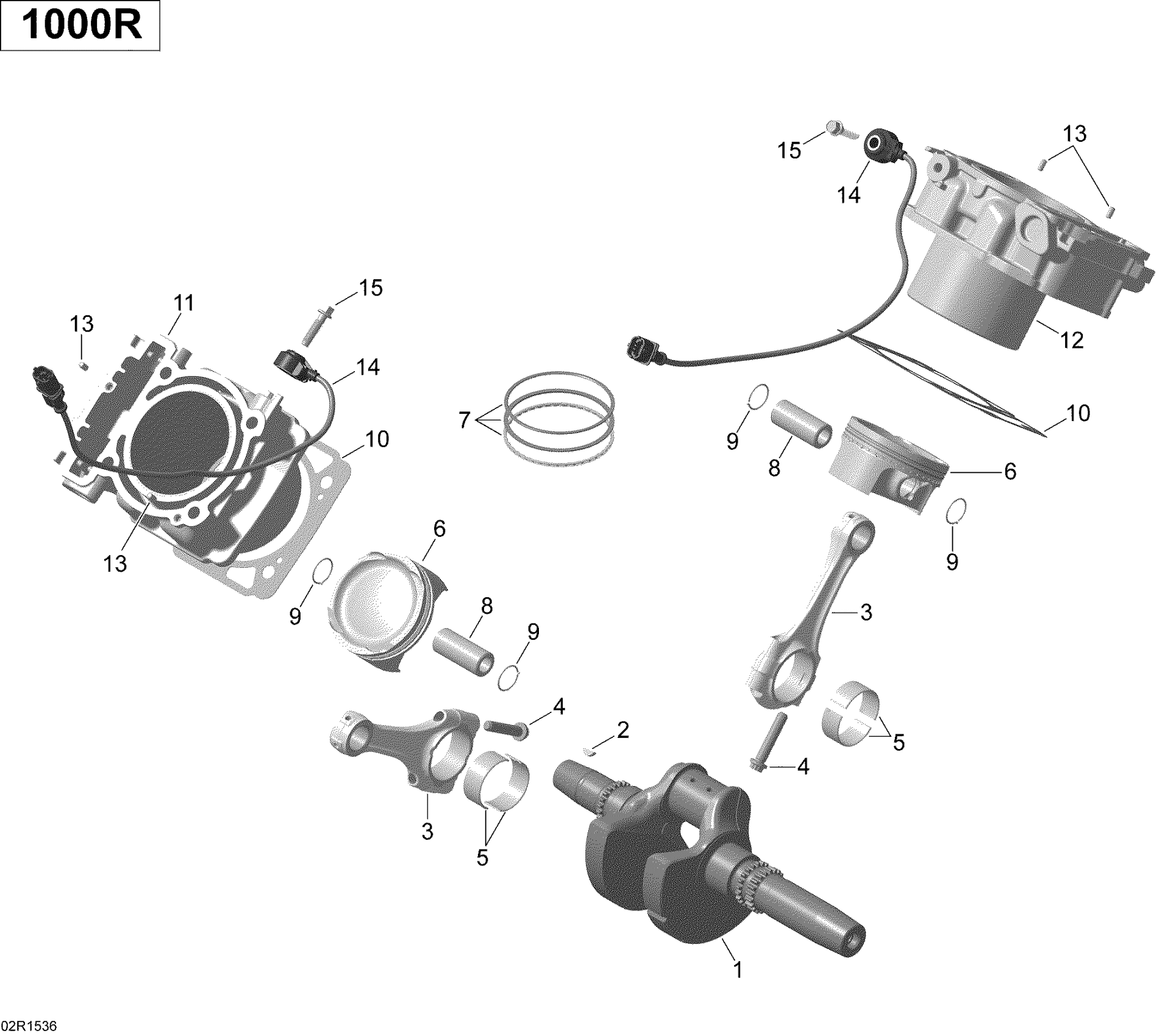

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Crankshaft, Piston And Cylinder Turbo _02R1536 Diagram

#

Description
Price

1

Crankshaft

420219738

$777.49

2

Woodruff Key 4 X 5

420246570

$3.19

3

Connecting Rod Ass'y | Includes 3 to 4

420217563

$242.72

4

Connecting Rod Screw M9 X 1

420641475

$16.30

5

Plain Bearing

420233726

$16.39

6

Piston Ass'y, 90.958 mm | Includes 6 to 7

420891895

$244.99

7

Piston Ring Set | 400HO

420296774

$80.57

8

Piston Pin

420216351

$25.94

9

Piston Circlip

420245436

$4.97

10

Gasket

420630210

$12.04

11

Cylinder Front

420413111

$462.66

12

Cylinder Rear

420413116

$444.59

13

Drive Pin 5 X 10

420929650

$1.54

14

Noise Sensor

420664031

$58.18

15

Hex. Flange Screw M8 X 30

420441751

$6.73
