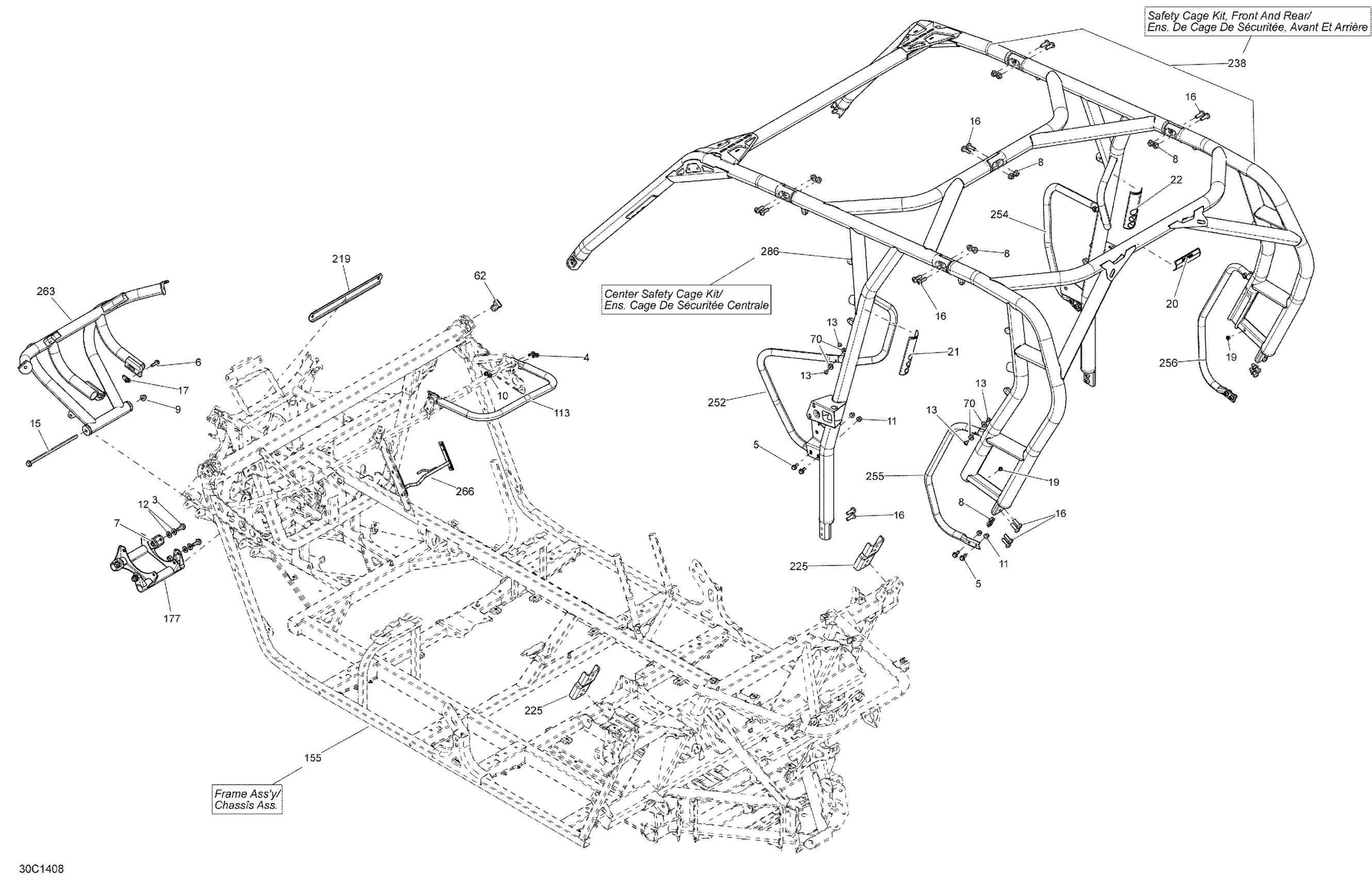

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Frame Diagram

#

Description
Price

3

Hex. Flange Screw M10 X 25

207602546

$2.00

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Screw M8 X 20

207682044

$1.06

6

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

7

Elastic Stop Nut M10

232500416

$1.79

8

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.00

9

Hex. Flange Elastic Nut M10

233201436

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Hex. Flange Elastic Nut M8

233281414

$1.31

12

Conical Spring Washer 10 mm

234201474

$1.60

13

Torx Truss M6X14

250000789

$5.06

15

Hex. Flange Screw

250000597

$11.82

16

Screw Pan M10 X 30

250000848

$1.79

17

Panel Nut M8 X 1.25

250100118

$1.87

18

Conical Spring Washer 10 mm

234201474

$1.60

19

Threaded Insert M6 X 1.0

250100242

Unavailable

20

Warning Label

704903492

Unavailable

21

Warning Label

704903679

Unavailable

22

Warning Label

704903680

Unavailable

62

Binding Block

705203415

$16.39

70

Offset Washer

705202223

$4.09

113

Black Handle

705203332

$122.36

155

Frame Ass'y, Black

705203153

Unavailable

177

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

219

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.12

225

Rear Hand Mounting

705203514

$18.63

238

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

252

Black LH Front Side Protector Tube

705203643

$43.25

254

Black RH Front Side Protector Tube

705203642

$43.25

255

Black LH Rear Side Protector Tube

705203649

$43.25

256

Black RH Rear Side Protector Tube

705203652

$43.25

263

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

266

Reinforcement Panel

705203717

$138.03

270

REINFORCEMENT - Call your local BRP dealership

705203695

Unavailable

286

Black Central Cage Kit

715003902

$779.99
