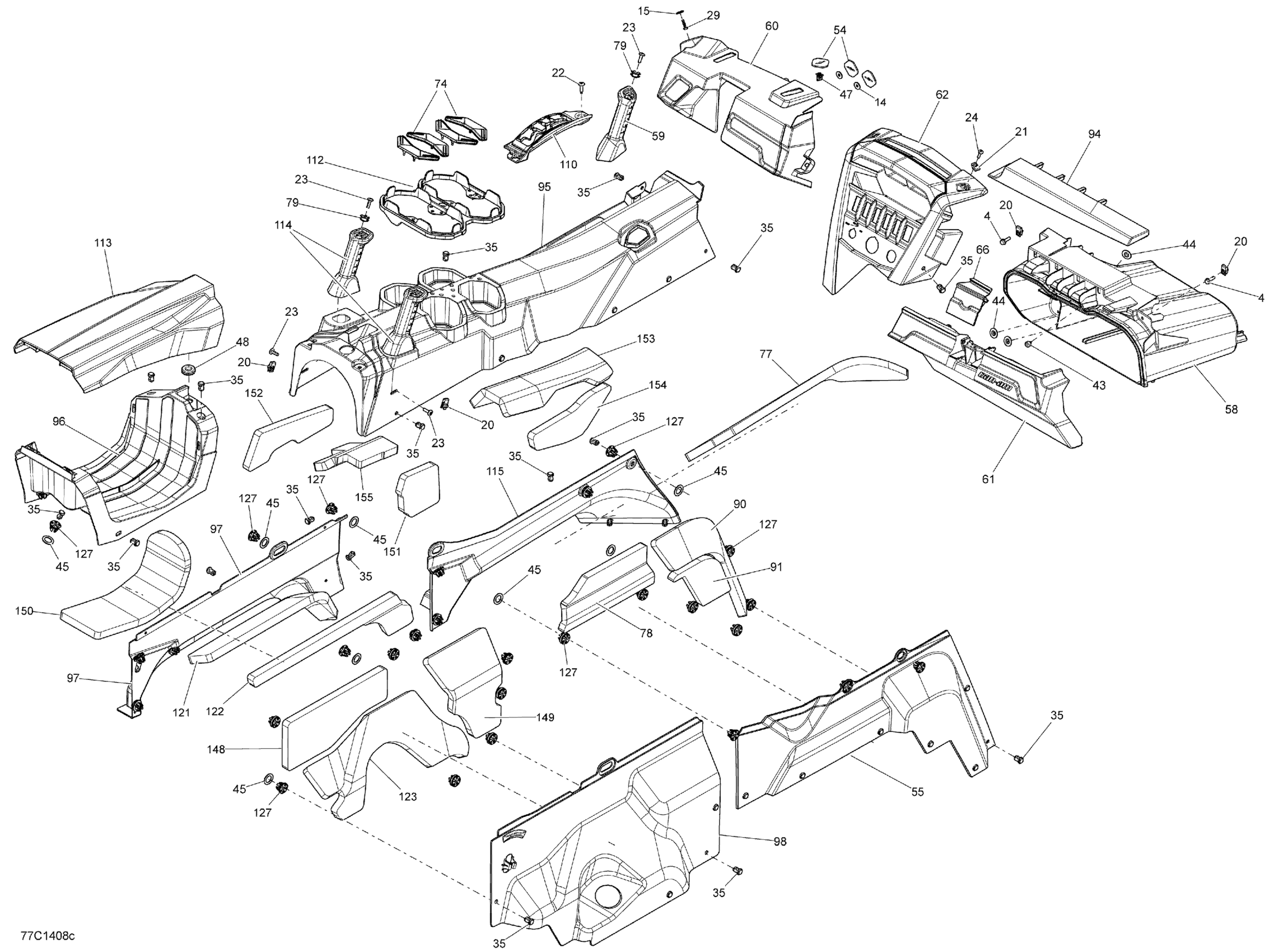

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Cab Interior Dash And Console Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20

207662034

$1.74

14

Flat Washer 6 mm

234062410

$0.64

15

Stainless Steel Flat Washer

234062670

$1.74

20

Panel Nut M6 X 1.0

250100198

$1.73

21

Panel Nut M5 X 0.8

250000958

$3.48

22

Torx Screw M6 X 25 | XT Models

250000728

$3.61

23

Torx Screw M6 X 20

250000722

$1.34

24

Torx Screw M5 X 20

250000724

$1.39

29

Truss Head Torx Screw K50 X 20

250000297

$2.06

35

Tuflok Plastic Rivet

293150230

$1.21

43

Rubber Bumper

293830005

$5.33

44

CAP - Call your local BRP dealership

414859400

Unavailable

45

Washer

503189273

$3.20

47

Edge Clip

517302785

$0.70

48

Grommet

517303756

$3.15

54

Support Plate

705003841

$0.91

55

RH Side Console

707900002

$36.89

58

Storage Bin

707900009

$110.74

59

Passenger Handle

707900011

$12.91

60

Dashboard Ass'y

715001250

$78.43

61

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

62

Central Dashboard Ass'y

715001265

$59.97

62

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

66

Latch

707900031

$8.29

74

Cup Retainer

707900036

$6.45

77

LH Lower Lateral Console Foam

707900621

$20.74

78

RH Lateral Console Foam

707900622

$15.35

79

Connector Tube

707900048

$6.45

90

RH Lateral Console Foam

707900623

$15.35

91

RH Lateral Console Foam

707900624

$15.35

94

Trim Glove Box

707900062

$17.66

95

Front Control Console

707900072

Unavailable

96

Rear Central Console

707900075

$46.12

97

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

Unavailable

98

RH Rear Console Panel

707900080

$59.20

110

Shift Lever Indicator

707900088

$14.75

112

Cup Holder

707900100

$16.89

113

Rear Console Cover Kit

707900229

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | White Model

707900195

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Black Model

707900197

Unavailable

114

Handle

707900103

$14.75

115

LH Side Console

707900001

$41.51

121

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

122

LH Rear Lateral Foam

707900626

$15.35

123

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

127

Insert

707900133

$2.75

148

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

149

RH Rear Lateral Foam

707900627

$14.37

150

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable

151

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

152

Front Central Foam

707900628

$10.14

153

Front Central Foam

707900629

$15.22

154

Front Central Foam

707900630

$10.14

155

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable
