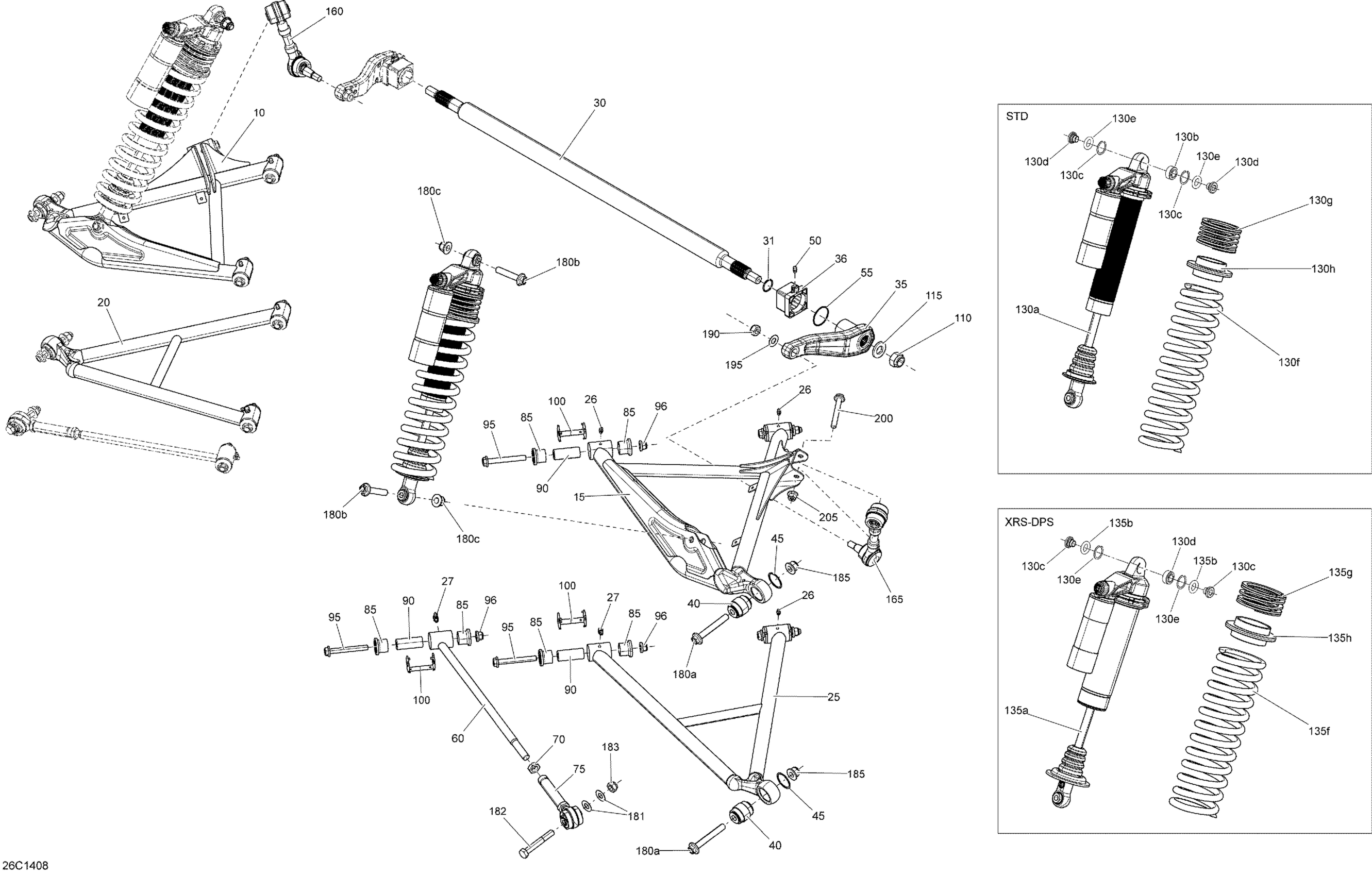

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Rear Suspension Diagram

#

Description
Price

10

Black LH Rear Upper Arm | Model-STD

706002091

$193.82

10

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002093

Unavailable

10

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS White

706002095

Unavailable

15

Black RH Rear Upper Arm | Model-STD

706002092

$193.82

15

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002094

Unavailable

15

Red RH Rear Upper Arm | Model-XRS White

706002096

$193.82

20

Black LH Rear Lower Arm

706001354

$193.82

25

Black RH Rear Lower Arm

706001355

$193.82

26

Grease Fitting

408200700

$2.80

27

Grease Fitting 90°

293550056

$1.37

30

SWAY BAR - Call your local BRP dealership

706001625

Unavailable

31

Retaining Ring

706000251

$6.45

35

Sway Bar Lever

706001371

$161.51

36

Sway Bar Housing

706001402

$14.75

40

Radial Joint

706001373

$41.51

45

Retaining Ring

293370093

$7.37

50

Grease Fitting

408200700

$2.80

55

O-Ring

293300100

$5.52

60

Rear Coupling Bar

706001357

$46.12

70

LH Hex. Lock Nut M14

232175411

$6.45

75

LH Ball Joint

706001438

$55.35

85

Suspension Arm Bushing

706204409

$8.29

90

Sleeve

706201590

$11.06

95

Hex Flange Screw M10 X 80

207608046

$4.46

96

Hex. Flange Elastic Nut M10

233201436

$1.74

100

Wear Plate

706201660

$0.89

110

Elastic Stop Nut M18

232591414

$3.48

115

Washer

250200045

$7.37

130a

Rear Shock | Model-STD , Includes 130a to 130e

706001453

Unavailable

130b

Spherical Bearing

715900266

$76.12

130c

Retaining Ring

715900252

$10.98

130d

Internal Bushing

715900267

$27.66

130e

O-Ring Bushing

715900268

$13.52

130f

YELLOW SPRING - Call your local BRP dealership | Model-STD

706001454

Unavailable

130g

YELLOW SPRING - Call your local BRP dealership | Model-STD

706001712

Unavailable

130h

Spring Spacer | Model-STD

706001711

$15.22

135a

REAR SHOCK - Call your local BRP dealership | Model-XRS-DPS , Includes 135a to 135e

706001457

Unavailable

135b

O-Ring Bushing

715900268

$13.52

135c

Internal Bushing

715900267

$27.66

135d

Spherical Bearing

715900266

$76.12

135e

Retaining Ring

715900252

$10.98

135f

YELLOW SPRING - Call your local BRP dealership | Model-XRS-DPS-Black

706001458

Unavailable

135f

RED SPRING - Call your local BRP dealership | Model-XRS-DPS-White

706001594

Unavailable

135g

YELLOW SPRING - Call your local BRP dealership | Model-XRS-DPS-Black

706001713

Unavailable

135g

Red Spring | Model-XRS-DPS-White

706001714

$73.82

135h

Spring Spacer | Model-XRS-DPS

706001710

$15.35

160

LH Double Ball Joint

706001741

$101.51

165

RH Double Ball Joint

706001742

$101.51

180a

Hex. Flange Screw M12 X 85

207628546

$5.54

180b

Hex. Flange Screw M12 X 60

207626046

$6.08

180c

Elastic Flange Nut M12

233221416

$2.33

181

Hardened Washer

706200281

$2.34

182

Hex. Screw M12 X 80

207028046

$3.25

183

Elastic Stop Nut M12

232521416

$1.40

185

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Elastic Nut M12

250000047

$1.56

195

Hardened Washer

706200281

$2.34

200

Hex. Flange Screw M10 X 70

207607046

$2.91

205

Hex. Flange Elastic Nut M10

233201436

$1.74
