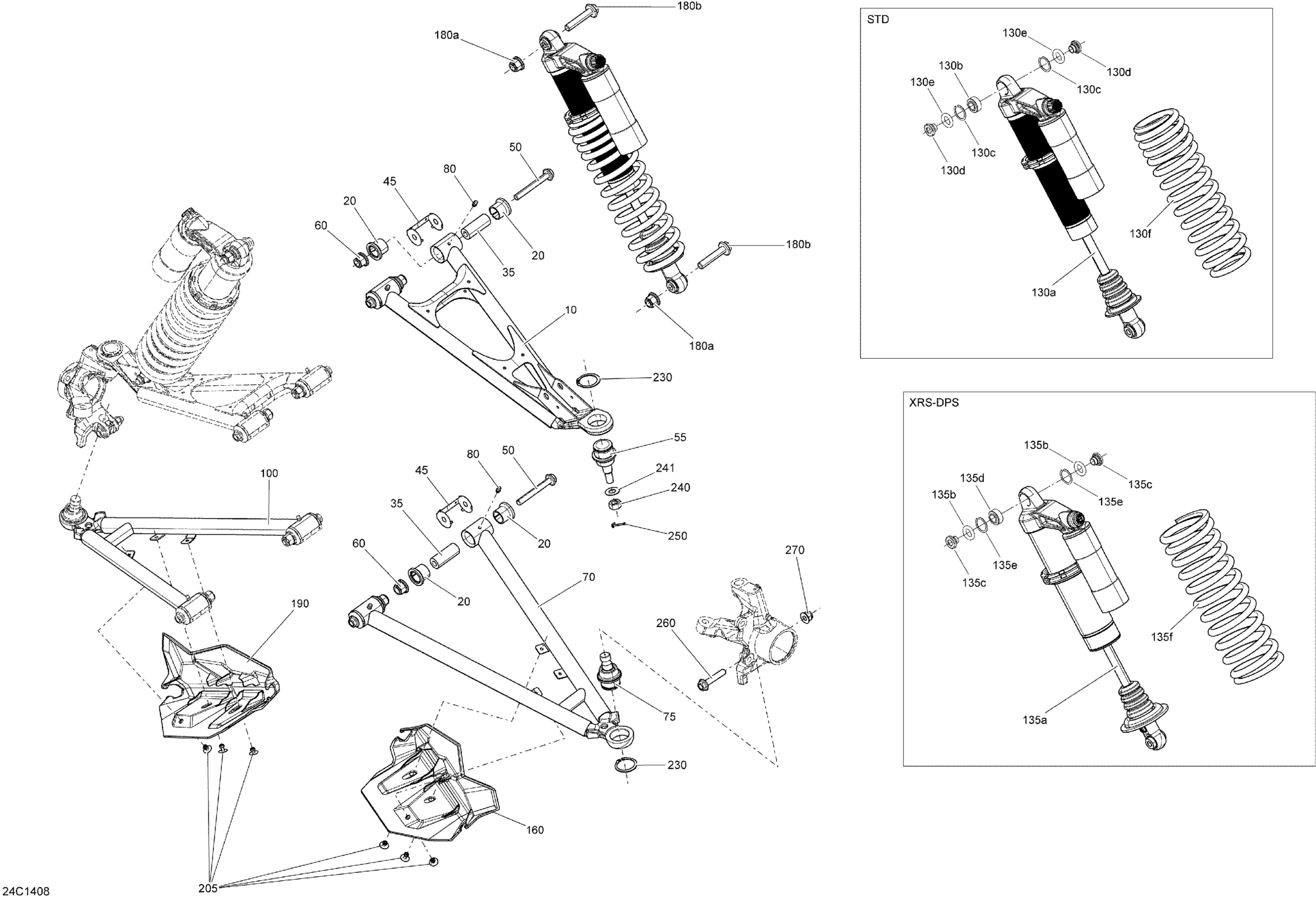

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Front Suspension Diagram

Black Front Upper Arm | Model-STD

706202086

$193.82

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XRS Black, XRP-DPS Black

706202090

Unavailable

RED FRONT UPPER ARM - Call your local BRP dealership | Model-XRS White, XRS-DPS White

706202091

Unavailable

Suspension Arm Bushing

706204409

$8.29

Sleeve

706201590

$11.06

Wear Plate

706201660

$0.89

Hex Flange Screw M10 X 80

207608046

$4.46

Ball Joint

706202044

$35.14

Hex. Flange Elastic Nut M10

233201436

$1.74

RH Front Lower Arm

706201862

$193.82

Ball Joint

706202045

$35.35

Grease Fitting

408200700

$2.80

LH Front Lower Arm

706201861

$193.82

FRONT SHOCK - Call your local BRP dealership | Model-STD , Includes 130a to 130e

706201706

Unavailable

Spherical Bearing

715900266

$76.12

Retaining Ring

715900252

$10.98

Internal Bushing

715900267

$27.66

O-Ring Bushing

715900268

$13.52

YELLOW FRONT SPRING - Call your local BRP dealership | Model-STD

706201707

Unavailable

FRONT SHOCK - Call your local BRP dealership | Model-XRS-DPS , Includes 135a to 135e

706201710

Unavailable

O-Ring Bushing

715900268

$13.52

Internal Bushing

715900267

$27.66

Spherical Bearing

715900266

$76.12

Retaining Ring

715900252

$10.98

YELLOW FRONT SPRING - Call your local BRP dealership | Model-XRS-DPS-Black

706201711

Unavailable

RED FRONT SPRING - Call your local BRP dealership | Model-XRS-DPS-White

706201827

Unavailable

RH Joint Protector

706202809

$9.29

Elastic Flange Nut M12

233221416

$2.33

Hex. Flange Screw M12 X 60

207626046

$6.08

LH Joint Protector

706202808

$9.29

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Circlip

293370035

$2.55

Nut M12

250100099

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Screw M10 X 50

207605044

$4.39

Hex. Flange Elastic Nut M10

233201414

$1.26
