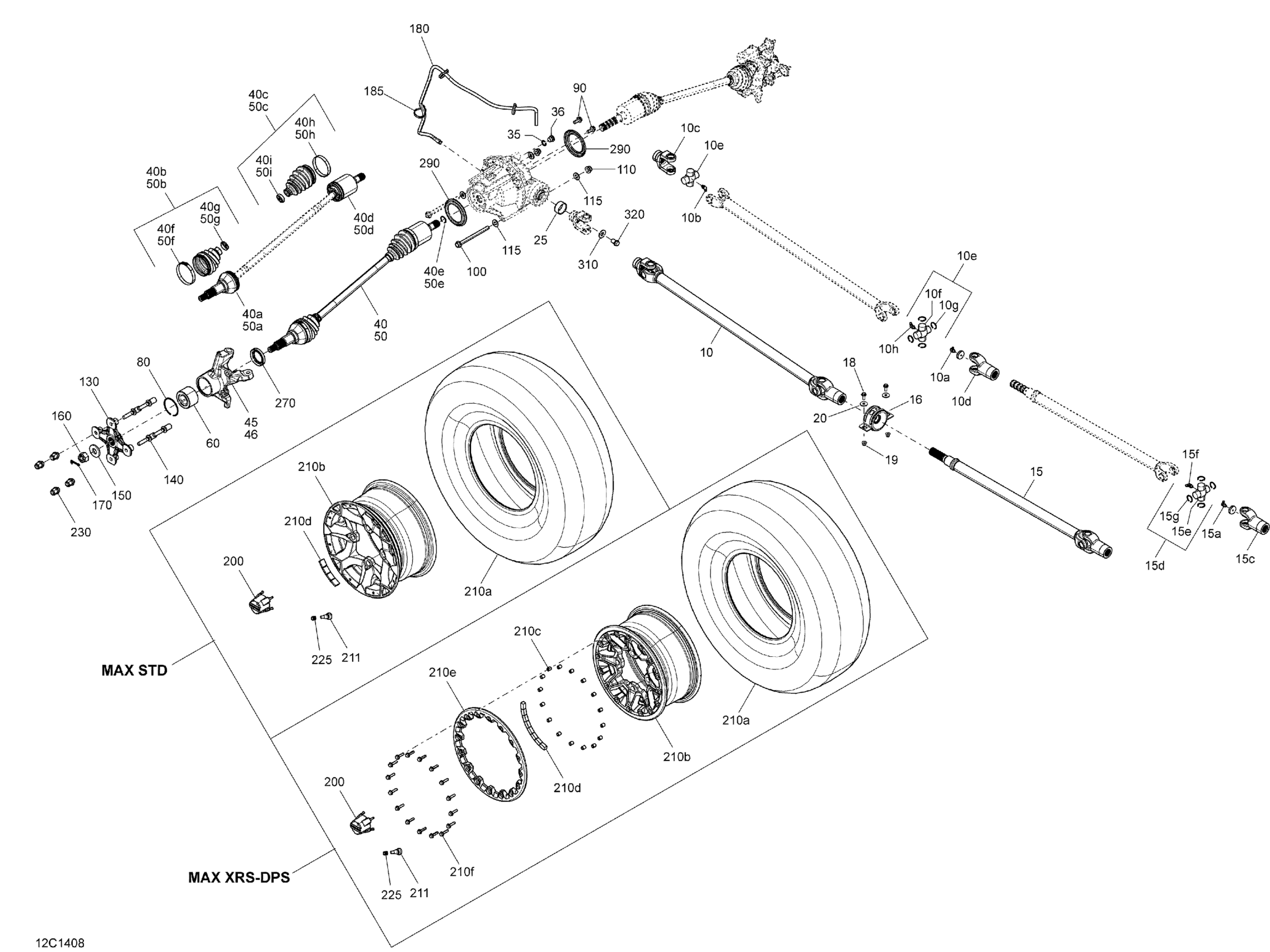

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Drive System, Front Diagram

#

Description
Price

10

Drive Shaft Assembly

705402068

$230.74

10a

Grease Fitting

703500815

$4.62

10b

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

10c

Yoke Joint | Cover 715900483

715900231

$27.66

10d

Fixed Yoke Joint

715900116

$59.97

10e

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

10f

U-Joint

715900183

$27.66

10g

SNAP RING - Call your local BRP dealership

715900117

Unavailable

10h

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

15

Drive Axle Ass'y | Model-COM-MAX

705402041

$401.51

15a

Grease Fitting

703500815

$4.62

15c

Yoke Joint | Cover 715900483

715900231

$27.66

15d

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

15e

U-Joint

715900183

$27.66

15f

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

15g

SNAP RING - Call your local BRP dealership

715900117

Unavailable

16

Ball Bearing | Model-COM-MAX

705401646

$59.37

18

Hex. Flange Screw M10 X 25

207602544

$1.33

19

Hex. Flange Elastic Nut M10

233201414

$1.26

20

Washer

503032900

$3.20

25

Wear Ring | 4X4

705400036

$25.35

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH CV Joint

705401874

$232.74

40a

CV Joint

705401344

$253.82

40b

Boot Kit, Wheel Side

705401345

$41.51

40c

Boot Kit, Differential Side

705401346

$41.51

40d

RH Plunging Joint

705401348

$249.20

40e

Circlip Joint | Not shown

705401349

$5.38

40f

Oetiker Clamp

715900282

$4.39

40g

Oetiker Clamp, Small

715900283

$4.39

40h

Oetiker Clamp, Large

715900284

$4.39

40i

Oetiker Clamp, Small

715900261

$4.39

45

LH Front Knuckle

705401548

$129.20

46

RH Front Knuckle

705401549

$106.12

50

LH CV Joint

705401873

$232.74

50a

CV Joint

705401344

$253.82

50b

Boot Kit, Wheel Side

705401345

$41.51

50c

Boot Kit, Differential Side

705401346

$41.51

50d

LH Plunging Joint

705401350

$249.20

50e

Circlip Joint | Not shown

705401349

$5.38

50f

Oetiker Clamp

715900282

$4.39

50g

Oetiker Clamp, Small

715900283

$4.39

50h

Oetiker Clamp, Large

715900284

$4.39

50i

Oetiker Clamp, Small

715900261

$4.39

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Hex. Flange Screw, M10 X 130

230603046

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705501900

$129.20

140

Wheel Stud

250300060

$9.58

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400036

$1.74

180

Polyurethane Hose 10000Mm Long

219704410

$46.12

185

Tie-Rap 180 mm

414115200

$0.09

200

Wheel Cap

705400928

$11.06

210a

Front Tire 27X9X12 | X

705402560

$198.43

210a

Front Tire | X Model, Europe

705401386

$228.43

210a

Front Tire 27X9X12 | X

705402560

$198.43

210a

Front Tire 27X9X12 | X

705402560

$198.43

210b

Black, Rim | XXC

705401678

$244.58

210b

Deep Black, 12" X 6 Rim | STD

705401417

$132.99

210c

Insert | XXC

293450317

$6.69

210d

1/2 Oz Weight

219704465

$4.35

210e

Yellow Reinforcement Disc

705401329

$78.43

210e

Red Reinforcement Disc | XRS-DPS White, Except EUR

705401445

$81.69

210f

Hex. Flange Screw M6 X 25

250000787

$1.83

211

Rim Valve With Cap

705400193

$6.69

225

Valve Cap

293000110

$1.18

230

Black, Wheel Nut M10 X 1.25

250100184

$2.48

270

O-Ring

293250246

$7.37

290

Wear Sleeve

705400780

$7.28

310

Flat Washer M12

250200102

$1.74

320

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable
