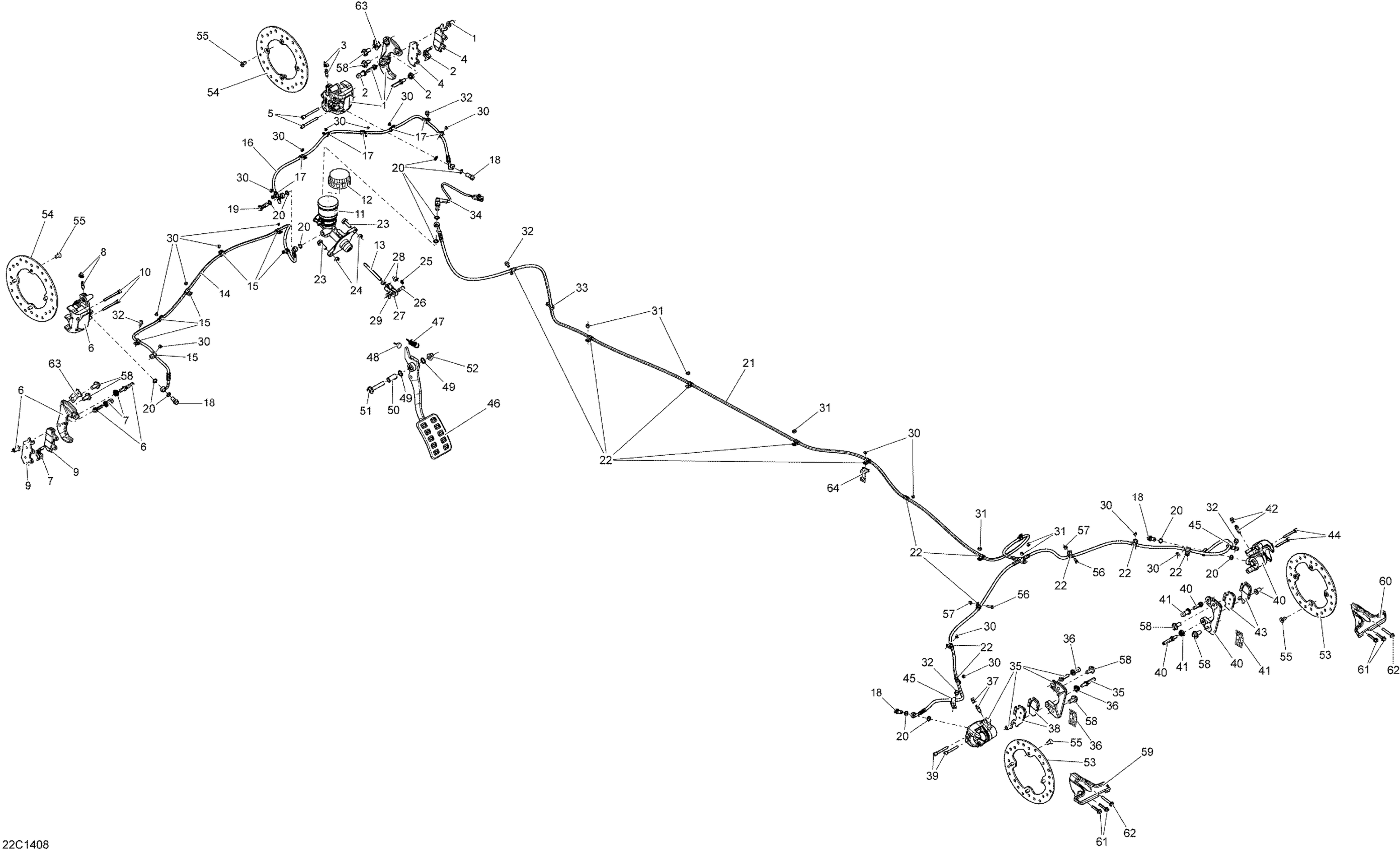

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Brakes Diagram

#

Description
Price

1

RH Caliper Ass'y | Includes 71 to 71d

705601129

$286.89

2

Spring And Bolt Kit

715500385

$23.05

3

Bleeding Screw

705600080

$15.22

4

RH Brake Pad Kit

705601150

$49.39

5

Hanger Pin Kit

705601151

$17.66

6

LH Caliper Ass'y | Includes 57 to 57d

705601128

$286.89

7

Spring And Bolt Kit

715500385

$23.05

8

Bleeding Screw

705600080

$15.22

9

LH Brake Pad Kit

705601149

$49.39

10

Hanger Pin Kit

705601151

$17.66

11

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

12

Diaphragm Cap Kit

715500332

$27.66

13

Master Cylinder Rod

705600833

$18.43

14

LH Front Flexible Hose Ass'y

705601192

$83.05

15

Clamp

293650256

$4.36

16

RH Front Flexible Hose Ass'y

705601193

$83.05

17

Clamp

293650256

$4.36

18

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

19

Banjo Bolt

705600958

$7.60

20

Copper Washer

705601628

$4.34

21

Rear Flexible Hose Ass'y | Includes 21 to 22

705601119

$156.89

22

Clamp

293650256

$4.36

23

Hex. Flange Screw M8 X 25

207682544

$0.90

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Cotter Pin

371800700

$0.98

26

Pin | Not Shown

250400058

$7.12

27

Yoke | Not Shown

705601142

$14.75

28

Hex. Nut M8

232081414

$0.60

29

Flat Washer M8

234081430

$1.74

30

Pop Rivet 3/16"

390402200

$0.26

31

Elastic Stop Nut M6

232561414

$1.55

32

Hex. Flange Screw M6 X 10

210261040

$1.25

33

Tie-Rap 180 mm

414115200

$0.09

34

Brake Switch

705601250

$59.97

35

LH Caliper Ass'y | Includes 70 to 70d

705601089

$208.99

36

Spring, Protector And Bolt Kit

715500384

$23.05

37

Bleeding Screw

705600080

$15.22

38

LH Brake Pad Kit

705600398

$49.39

39

Pin Set (2)

705600081

$19.20

40

RH Caliper Ass'y | Includes 80 to 80d

705601090

$208.99

41

Spring, Protector And Bolt Kit

715500384

$23.05

42

Bleeding Screw

705600080

$15.22

43

RH Brake Pad Kit

705601147

$49.39

44

Pin Set (2)

705600081

$19.20

45

Open Clamp

518321570

$6.03

46

Brake Pedal

705600724

$55.35

47

Brake Pedal Spring

705600792

$9.22

48

Rubber Stopper

708000759

$3.61

49

O-Ring

293300144

$3.98

50

Inner Spacer

705600815

$10.98

51

Hex. Flange Screw M10 X 55

207605544

$2.78

52

Hex. Flange Elastic Nut M10

233201414

$1.26

53

Disc Brake

705600999

$85.49

54

Disc Brake

705601178

$103.82

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

56

Hex. Forming Screw M5 X 16

210251650

$0.92

57

Hex. Flange Elastic Nut M5

233251414

$1.66

58

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

59

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

60

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

61

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

62

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

63

Bracket

705601337

$2.69

64

Bracket

705601337

$2.69
