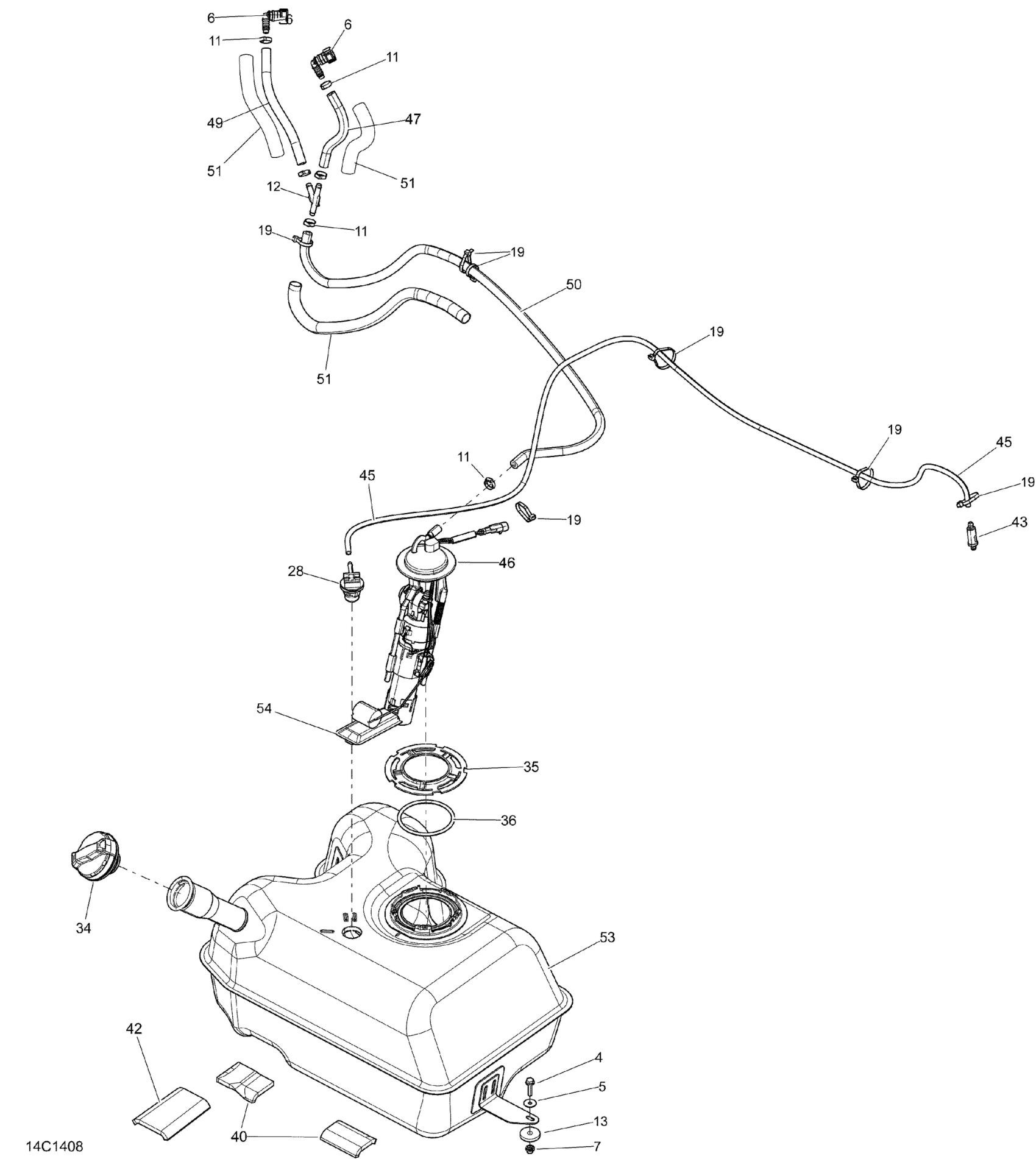

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Fuel System Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 25

207662544

$0.61

5

Flat Washer

224060201

$1.12

6

Quick Attach 90°

275500700

$14.48

7

Threaded Insert M6 X 1.0

250100242

Unavailable

11

Crimp Clamp, 15.3-706R

293650047

$3.03

12

Y-Fitting, 5/16''

293710136

$5.76

13

Rubber Washer

293830037

$2.68

19

Tie-Rap 180 mm

414115200

$0.10

28

Rollover Valve

709000413

$50.72

34

Fuel Cap | Except Europe

709000529

$28.18

35

Ring

709000274

$14.40

36

O-Ring

709000275

$15.64

40

Neoprene Pad

709000288

$12.49

42

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

43

Filter

709000330

$7.48

45

Polyurethane Hose 10000Mm Long

219704410

$52.96

46

Fuel Pump | Includes 5 to 6

709000759

$353.87

47

Was 709000163 Fuel Line

219704440

$25.34

49

Was 709000163 Fuel Line

219704440

$25.34

50

Was 709000163 Fuel Line

219704440

$25.34

51

Tubing 16 Mm 1000Mm Long

219704408

$7.15

53

Fuel Tank

709000753

Unavailable

54

Fuel Pre-Filter Kit

709000389

$73.85
