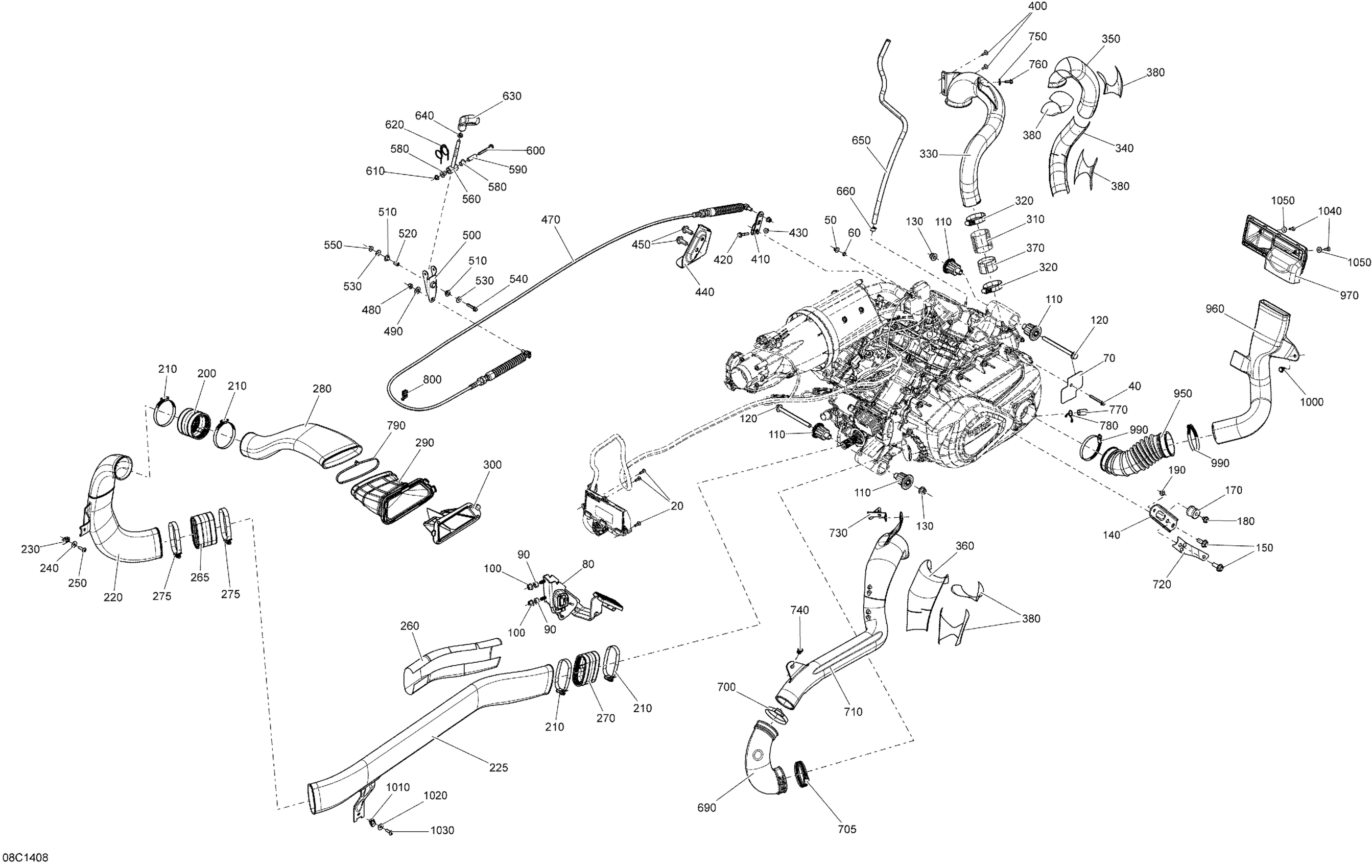

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Engine And Engine Support Diagram

#

Description
Price

20

Torx Screw K50 X 16

250000720

$1.69

40

Hex. Flange Screw M6 X 50

207665044

$4.12

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

60

External Serrated Lock Washer 6 mm

234461608

$1.15

70

Insulator Pad

710000073

$11.12

80

Accelerator Pedal

707001166

$274.99

90

Bushing

707000848

$1.35

100

Hex. Flange Nut M8

233081416

$1.15

110

Vibration Damper

707001169

$42.99

120

Hex. Flange Screw M10 X 125

230602546

$7.41

130

Hex. Flange Elastic Nut M10

233201436

$2.11

140

Upper Engine Bracket

707000707

$8.79

150

Hex. Flange Screw M10 X 25

207602544

$1.69

170

Rubber Isolator

707000949

$11.49

180

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

190

Hex. Elastic Stop Nut M8

232581414

$0.56

200

Flexibale Adaptor

707002585

$10.99

210

Norma Clamp

293650091

$11.12

220

Air Inlet

707001339

$20.99

225

Air Inlet

707001228

$54.99

230

Panel Nut M6 X 1.0

250100198

$2.11

240

Flat Washer

250200082

$0.42

250

Torx Screw M6 X 20

250000722

$1.68

260

Reflector

707001346

$30.99

265

Flexibale Adaptor

707002585

$10.99

270

Flexibale Adaptor

707002585

$10.99

275

Norma Clamp

293650091

$11.12

280

Primary Air Intake

707000909

$22.49

290

Adaptor

707000908

$35.99

300

CVT Filter

707001344

$15.49

310

Adaptor

707000789

$12.12

320

Norma Gear Clamp

293650118

$13.16

330

CVT Outlet

707001243

$66.99

340

Reflector

707001284

$9.23

350

Reflector

707001360

$9.23

360

Reflector

707001286

$9.23

370

Reflector

707000988

$4.14

380

Reflective Sheet

707000991

$10.49

400

Screw M4 X 16

250000725

$3.49

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support | Engine 1000

707000919

$16.87

450

Hex. Flange Screw M10 X 25

207602544

$1.69

470

Shifting Cable

707001348

$66.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

Lower Lever Arm

707000828

$19.99

510

Flanged Bushing

707000847

$1.25

520

Bushing

707000801

$2.68

530

Flat Washer 6 mm

234062410

$0.77

540

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

550

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

560

Upper Lever Arm

707000711

$39.99

580

Flanged Bushing

707000869

$2.89

590

Bushing

707001376

$5.24

600

Hex. Flange Screw M6 X 50

207665044

$4.12

610

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

620

Lever Arm Spring

707000750

$2.68

630

Lever Handle

707000284

$19.99

640

Hex. Jam Nut M8

232180491

$7.51

650

Hose

219704549

$50.99

660

Spring Clamp

414415200

$0.88

690

Front Adaptor

707001229

$22.49

700

Norma Gear Clamp

293650118

$13.16

705

Norma Clamp

293650091

$11.12

710

CVT Outlet

707001230

$49.99

720

Front Support

707001231

$15.81

730

Rear Support

707001232

$10.99

740

Tuflok Plastic Rivet

293150230

$1.47

750

Flat Washer 6 mm

234062410

$0.77

760

Hex. Flange Screw M6 X 16

210261650

$1.67

770

Plug

707001185

$1.15

780

Retainer Clip

707800506

$12.63

790

Tie Wrap 368 mm

293750008

$1.04

800

Clip Tie-Rap

710002899

$8.49

950

Flexible Adaptor

707001400

$24.49

960

Air Inlet

707001401

$48.99

970

Filter

707001422

$20.49

990

Norma Clamp

293650091

$11.12

1000

Tuflok Plastic Rivet

293150230

$1.47

1010

Panel Nut M6 X 1.0

250100198

$2.11

1020

Flat Washer

250200082

$0.42

1030

Torx Screw M6 X 20

250000722

$1.68

1040

Torx Screw K50 X 16

250000720

$1.69

1050

Washer M5

250200025

$0.74
