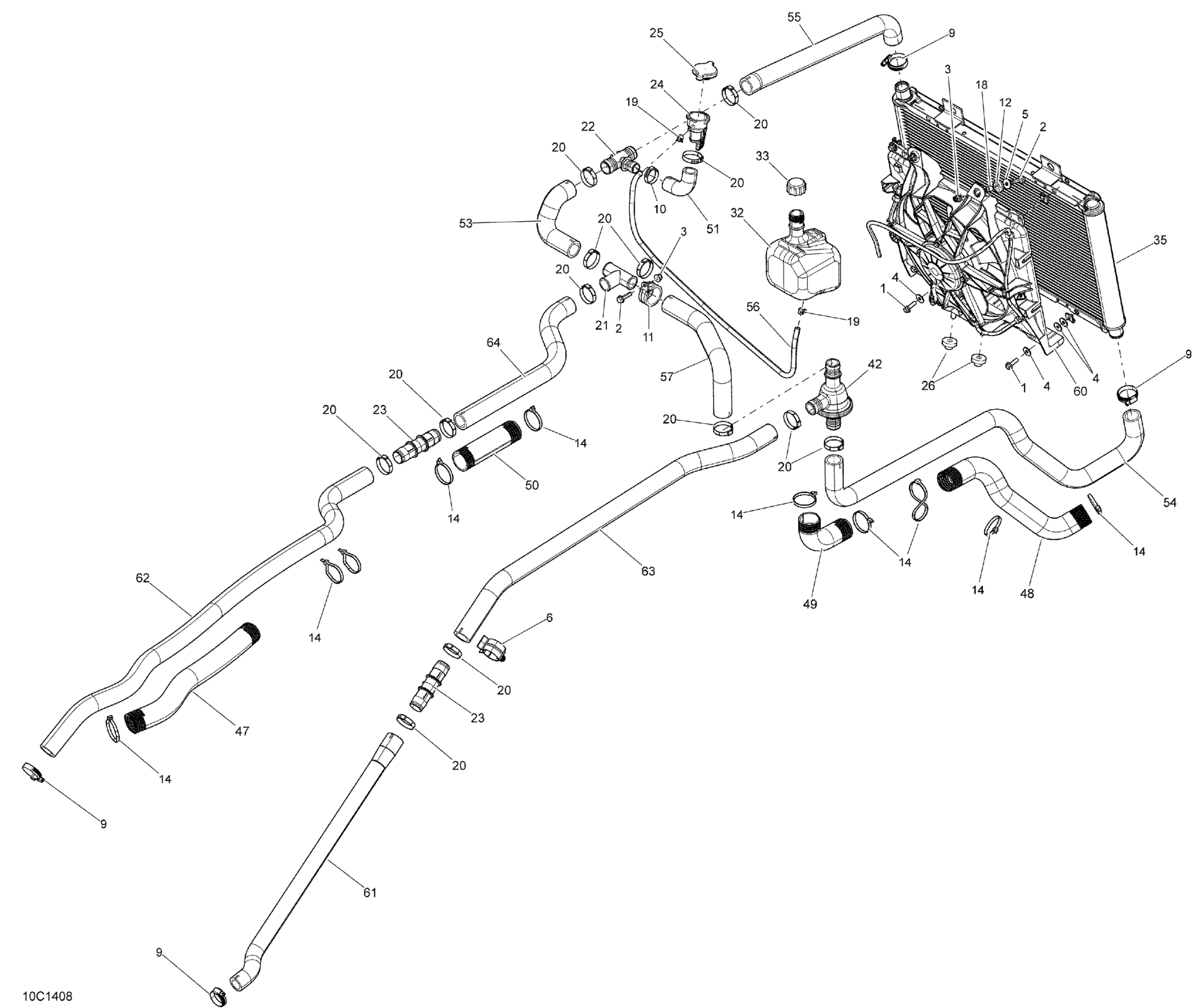

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS, 2014 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.66

2

Hex. Flange Screw M6 X 25

207662534

$1.74

3

Flange Elastic Nut M6

233261434

$3.61

4

Flat Washer 6 mm

234062410

$0.64

5

Flat Washer

250200082

$0.35

6

Retainer

275500590

$7.18

9

Norma Gear Clamp

293650098

$4.28

10

Crimp Clamp

293650099

$4.60

11

Hose Retainer

293650218

$8.45

12

Grommet

709000582

$4.38

14

Tie Wrap 368 mm

293750008

$0.85

18

Bushing

293900105

$6.26

19

Spring Clamp

414554800

$0.83

20

Gear Clamp

509000162

$5.84

21

T-Fitting

509000219

$15.35

22

T-Fitting

509000372

$7.87

23

Fitting

509000914

$7.37

24

Filler Neck

709200179

$17.66

25

Radiator Pressure Cap

709200207

$18.82

26

Grommet

709200285

$7.09

32

Coolant Tank Ass'y

709200624

$96.89

33

Tank Cap

709200587

$5.29

35

Radiator

709200395

$359.97

42

Thermostat

709200406

$77.32

47

Tubing 35 MM 1000MM Long

219704428

$8.57

48

Tubing 35 MM 1000MM Long

219704428

$8.57

49

Tubing 35 MM 1000MM Long

219704428

$8.57

50

Tubing 35 MM 1000MM Long

219704428

$8.57

51

Filler Neck Hose

709200439

$10.14

53

Hose

709200443

$13.83

54

Radiator Inlet Hose

709200444

$63.05

55

Outlet Hose

709200445

$23.05

56

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

57

Hose

709200447

$24.58

60

Fan Ass'y

709200564

$226.12

61

Pump Hose

709200496

$27.66

62

Hose

709200497

$50.74

63

Pump Hose

709200519

$27.66

64

Intermediate Hose

709200520

$23.05
