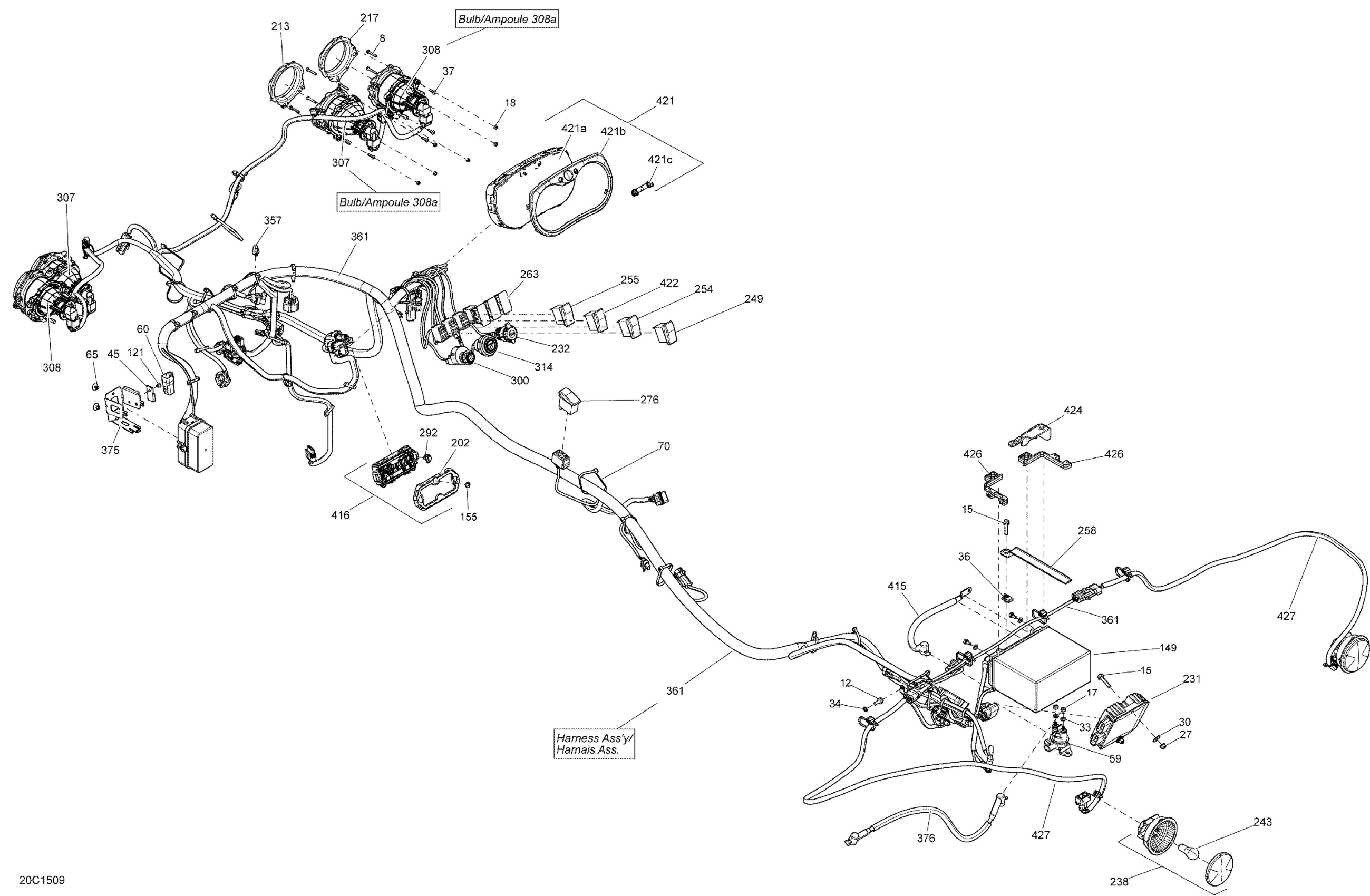

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Electrical System _20C1509 Diagram

#

Description
Price

8

Hex. Screw M4 X 25

207142544

$1.87

12

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

15

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

17

Hex. Nut M6

232061600

$1.04

18

Elastic Stop Nut M4

232541414

$0.55

27

Hex. Flange Elastic Nut M6

233261494

$1.45

30

Stainless Steel Flat Washer

234062670

$2.00

33

Lock Washer Helical M6

234161601

$1.06

34

External Serrated Lock Washer 6 mm

234461608

$1.06

36

Panel Nut M6 X 1.0

250100198

$1.99

37

Phillips Screw K40 X 16

250000723

$0.93

45

Clip

270000141

$9.57

59

Starter Relay

278003012

$40.27

60

Diagnostic Connector

278002704

$17.88

65

Pop Rivet 3/16"

293150103

$0.52

70

Tie Wrap 368 mm

293750008

$0.97

121

Pop Rivet 3/16"

390402400

$0.28

149

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

155

BRP Logo13 mm

704904615

$11.09

202

Trim Ring Ass'y

710001183

$17.88

213

RH Low Front Housing

710001081

$16.39

213

LH Low Front Housing

710001083

$16.39

217

RH High Front Housing

710001085

$16.39

217

LH High Front Housing

710001087

$16.39

231

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

232

DC Outlet

710001248

$35.79

238

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

243

Bulb

520000758

$8.60

249

Hi/Low Switch | Except Europe

710001725

$21.49

254

4X4 Switch

710001737

$29.82

255

Switch DPS

710001781

$22.24

258

Battery Holder

710001916

$16.39

263

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

276

Switch, Over ride

710002053

$19.27

292

Button

715900265

$11.81

300

Ignition Switch

710008400

$72.36

307

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

308

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

308a

Halogen Bulb

415129249

$38.78

314

Engine Start Button

710002594

$55.94

357

Dart Tie Rap 200MM

710003168

$6.57

361

Wiring Harness Assembly

710004343

$1,299.97

375

Fuse Holder

710003335

$8.60

376

Positive Cable

710004390

$32.81

415

Positive Cable | Model-DPS

710004393

$32.06

416

Speedometer

710005087

Unavailable

421

Multifunction Speedometer | XRS, XRS DPS

710004547

$394.00

421a

Lens | XTP

415129349

$22.36

421b

Gauge Ring

415129348

$11.36

421c

Speedometer Button | XTP

415129355

$13.52

422

Switch PPS Sport

710003541

$17.88

424

Cap

710003582

$9.58

426

Battery Rubber Pad

710003602

$11.51

427

Rear Harness

710003680

$26.09
