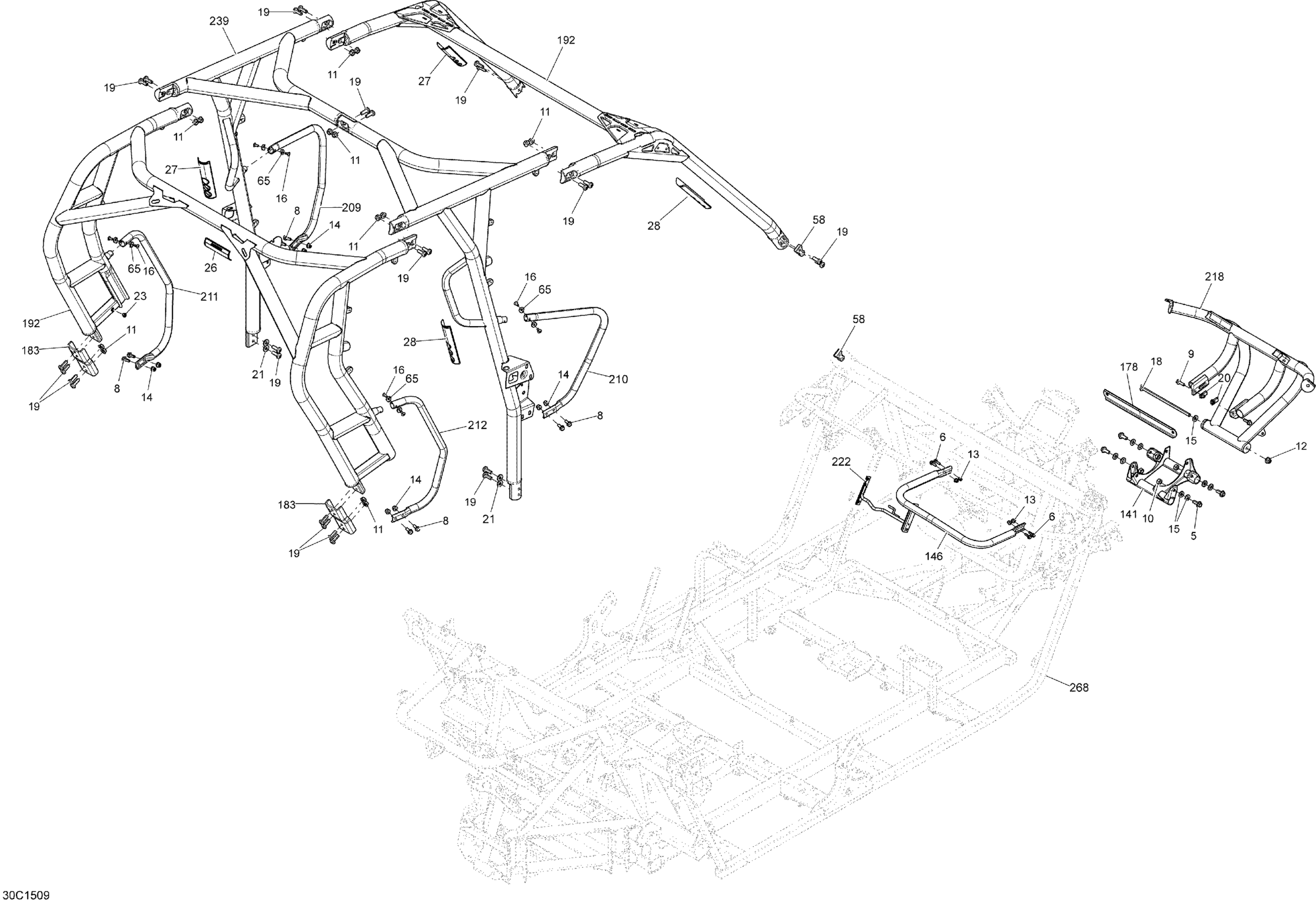

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Frame _30C1509 Diagram

#

Description
Price

5

Hex. Flange Screw M10 X 25

207602546

$2.00

6

Hex. Flange Screw M6 X 20

207662046

$2.00

8

Hex. Flange Screw M8 X 20

207682044

$1.06

9

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

10

Elastic Stop Nut M10

232500416

$1.79

11

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.00

12

Hex. Flange Elastic Nut M10

233201436

$2.00

13

Elastic Flange Nut M6 X 1.0

233261416

$2.00

14

Hex. Flange Elastic Nut M8

233281414

$1.31

15

Conical Spring Washer 10 mm

234201474

$1.60

16

Torx Truss M6X14

250000789

$5.06

18

Hex. Flange Screw

250000597

$11.82

19

Screw Pan M10 X 30

250000848

$1.79

20

Panel Nut M8 X 1.25

250100118

$1.87

21

Washer

250200154

$3.48

23

Threaded Insert M6 X 1.0

250100242

Unavailable

26

Warning Label

704903492

Unavailable

27

Warning Label

704903679

Unavailable

27

Warning Label

704903679

Unavailable

28

Warning Label

704903680

Unavailable

28

Warning Label

704903680

Unavailable

58

Binding Block

705203415

$16.39

65

Offset Washer

705202223

$4.09

141

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

146

Black Handle

705203332

$122.36

178

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.12

183

Rear Hand Mounting

705203514

$18.63

183

Rear Hand Mounting

705203514

$18.63

192

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

192

Red Cage Kit

715003905

$1,039.99

209

Black LH Front Side Protector Tube

705203643

$43.25

209

RED LH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204068

Unavailable

210

Black RH Front Side Protector Tube

705203642

$43.25

210

RED RH FRONT SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204069

Unavailable

211

Black LH Rear Side Protector Tube

705203649

$43.25

211

RED LH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204064

Unavailable

212

Black RH Rear Side Protector Tube

705203652

$43.25

212

RED RH REAR SIDE PROTECTOR TUBE - Call your local BRP dealership | Models with Red Cage

705204065

Unavailable

218

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

222

Reinforcement Panel

705203717

$138.03

239

Black Central Cage Kit

715003902

$779.99

239

Red Central Cage Kit | Models with Red Cage

715003906

$779.99

268

Frame Kit

715003946

$2,969.99
