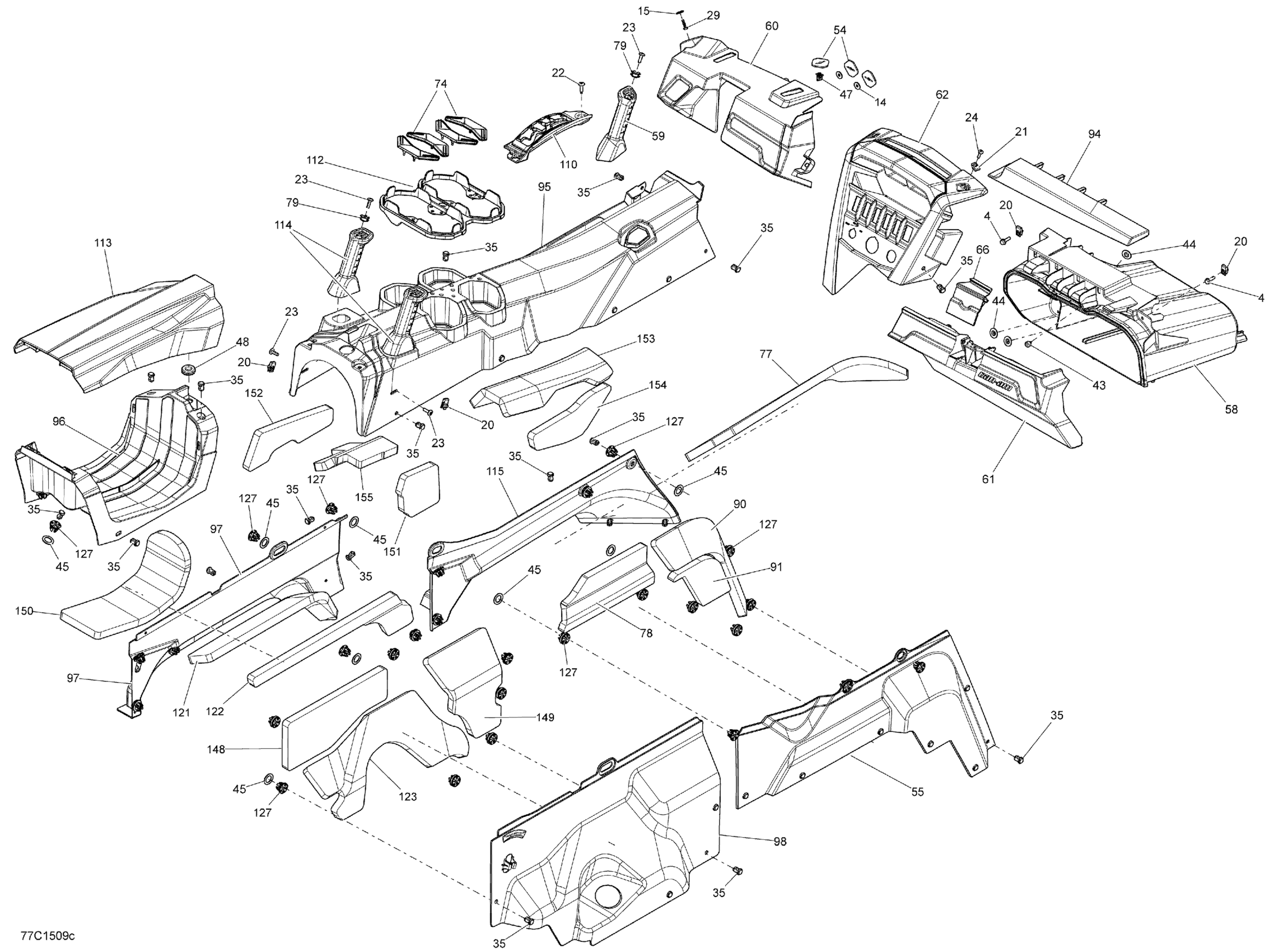

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Cab Interior Dash And Console_77C1509c Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20

207662034

$2.00

14

Flat Washer 6 mm

234062410

$0.73

15

Stainless Steel Flat Washer

234062670

$2.00

20

Panel Nut M6 X 1.0

250100198

$1.99

21

Panel Nut M5 X 0.8

250000958

$4.00

22

Torx Screw M6 X 25 | XT Models

250000728

$4.15

23

Torx Screw M6 X 20

250000722

$1.54

24

Torx Screw M5 X 20

250000724

$1.60

29

Truss Head Torx Screw K50 X 20

250000297

$2.00

35

Tuflok Plastic Rivet

293150230

$1.39

43

Rubber Bumper

293830005

$6.12

44

CAP - Call your local BRP dealership

414859400

Unavailable

45

Washer

503189273

$3.10

47

Edge Clip

517302785

$0.81

48

Grommet

517303756

$3.61

54

Support Plate

705003841

$0.91

55

RH Side Console

707900002

$32.81

58

Storage Bin

707900009

$103.70

59

Passenger Handle

707900011

$12.43

60

Dashboard Ass'y

715001250

$71.61

61

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

62

Central Dashboard Ass'y

715002178

Unavailable

66

Latch

707900031

$7.57

74

Cup Retainer

707900036

$6.19

77

LH Lower Lateral Console Foam

707900621

$19.37

78

RH Lateral Console Foam

707900622

$14.49

79

Connector Tube

707900048

$5.52

90

RH Lateral Console Foam

707900623

$14.49

91

RH Lateral Console Foam

707900624

$14.49

94

Trim Glove Box

707900062

$16.39

95

CENTRAL CONSOLE KIT - Call your local BRP dealership

715002914

Unavailable

96

Rear Central Console

707900075

$41.76

97

LH REAR CONSOLE PANEL - Call your local BRP dealership

707900298

Unavailable

98

RH Rear Console Panel

707900080

$56.69

110

Shift Lever Indicator

707900088

$13.78

112

Cup Holder

707900100

$16.39

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Model-Red

707900196

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Model-Red

707900196

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Black Model

707900197

Unavailable

113

REAR CENTRAL CONSOLE COVER - Call your local BRP dealership | Black Model

707900197

Unavailable

114

Handle

707900103

$14.33

115

LH Side Console

707900001

$40.27

121

INSULATION_ACOUSTIC - Call your local BRP dealership

707900119

Unavailable

122

LH Rear Lateral Foam

707900626

$14.76

123

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

127

Insert

707900133

$2.89

148

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

149

RH Rear Lateral Foam

707900627

$13.52

150

INSULATION_ACOUSTIC - Call your local BRP dealership

707900307

Unavailable

151

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

152

Front Central Foam

707900628

$9.48

153

Front Central Foam

707900629

$14.43

154

Front Central Foam

707900630

$9.48

155

INSULATION_ACOUSTIC - Call your local BRP dealership

707900213

Unavailable
