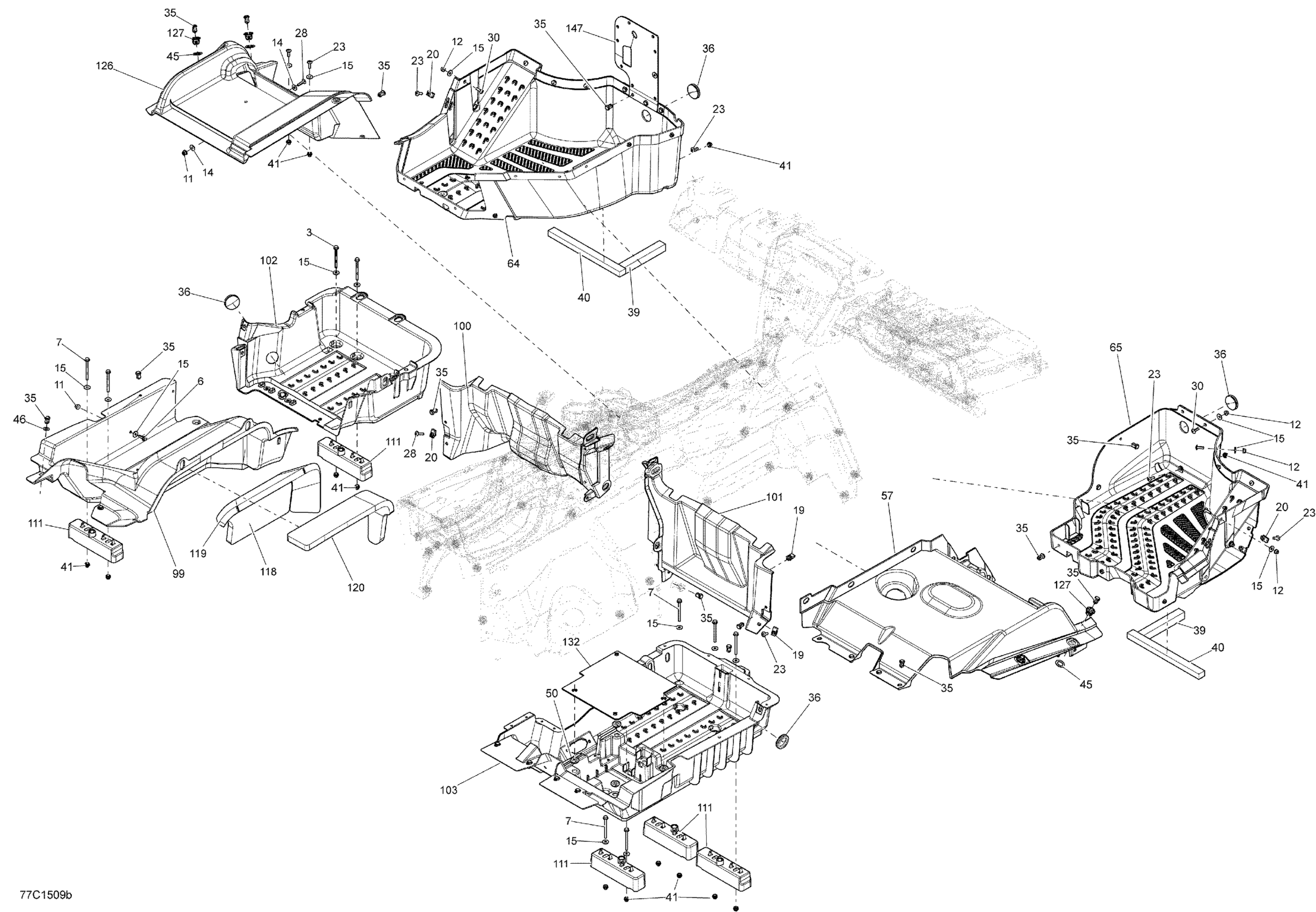

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Cab Interior Bottom Pan_77C1509b Diagram

#

Description
Price

3

Hex. Flange Screw M6 X 70

207667056

$3.61

6

Hex. Flange Screw M6 X 20

207662054

$0.83

7

Hex. Flange Screw M6 X 70

207667056

$3.61

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Hex. Flange Elastic Nut M6

233261494

$1.26

14

Flat Washer 6 mm

234062410

$0.64

15

Stainless Steel Flat Washer

234062670

$1.74

19

Panel Nut M6 X 1.0

250100198

$1.73

20

Panel Nut M6 X 1.0

250100198

$1.73

23

Torx Screw M6 X 20

250000722

$1.34

28

Torx Screw M6 x 25

250000284

$1.74

30

Torx Screw M6 X 20

250000712

$1.74

35

Tuflok Plastic Rivet

293150230

$1.21

36

Rubber Cover

293250242

$5.38

39

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

40

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

41

Threaded Insert M6 X 1.0

250100242

Unavailable

45

Washer

503189273

$3.20

46

Washer

506151252

$3.11

50

Grommet

705003264

$3.43

57

RH Under Seat Plate

707900006

$106.12

64

LH Lower Floor

707900022

$253.82

65

RH Lower Floor

707900023

$184.58

99

LH REAR BOTTOM PAN - Call your local BRP dealership

707900081

Unavailable

100

LH Rear Upper Floor Cover

707900082

$50.74

101

Seat Cover

707900083

$46.12

102

LH MID FLOOR - Call your local BRP dealership

707900084

Unavailable

103

RH Lower Rear Floor

707900670

$184.58

111

Support Plate

707900099

$15.35

118

INSULATION_ACOUSTIC - Call your local BRP dealership

707900116

Unavailable

119

INSULATION_ACOUSTIC - Call your local BRP dealership

707900117

Unavailable

120

INSULATION_ACOUSTIC - Call your local BRP dealership

707900118

Unavailable

126

Under Seat Cover

707900130

$78.43

127

Insert

707900133

$2.75

132

Battery Cover

707900163

$17.66

147

Deflector | XRS-DPS

707900204

Unavailable
