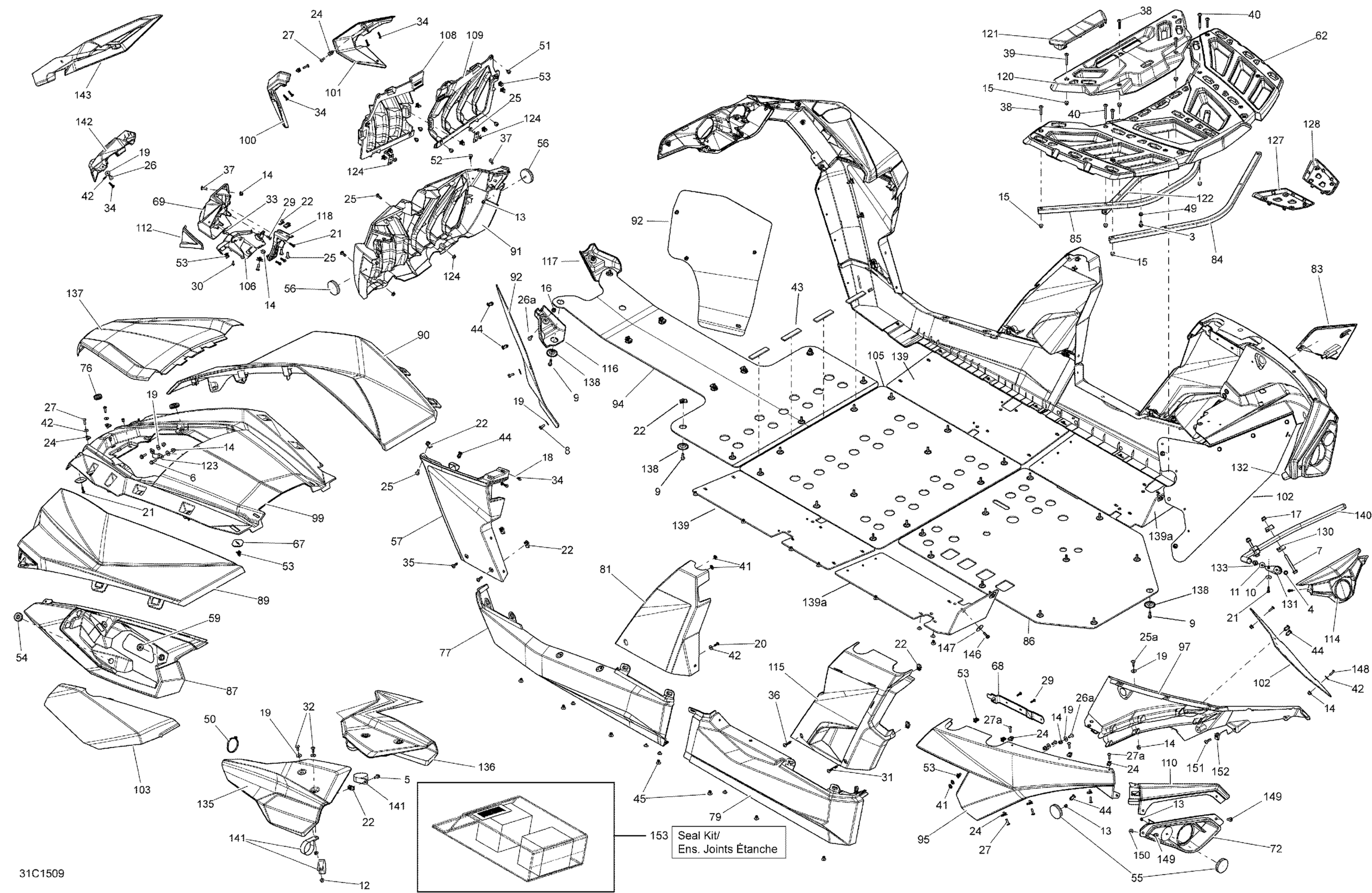

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Body And Accessories _31C1509 Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Screw M6 X 20

210262040

$2.06

Hex. Flange Screw M6 X 20

207662084

$0.83

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Screw M6 X 16

210261650

$1.22

Hexagonal Head Screw

210262050

$1.74

Flat Washer

224060201

$1.15

Flat Washer

224061201

$1.11

Hex. Flange Nut M6

233061414

$1.34

Elastic Flange Nut M5

233251494

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M6

233261494

$1.26

Hex. Flange Elastic Nut M8

233281414

$1.14

Flat Washer M5

234051410

$0.44

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

Hex. Flange Screw K50 X 20

241152060

$1.57

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M5 X 20

250000724

$1.39

Torx Screw K50 X 16

250000720

$1.39

Self Tapping Screw #8 X 5/8

250000202

$1.25

Torx Screw M6 X 45

250000215

$1.56

Torx Screw M6 X 16

250000755

$0.72

Torx Screw M6 x 25

250000284

$1.74

Truss Head Torx Screw K50 X 20

250000297

$2.06

Torx Screw M6 X 20

250000712

$1.74

Torx Truss Screw M6 X 20

250000350

$4.39

Torx Truss Screw M6 X 30

250000843

$1.74

Torx Truss Screw M6 X 20

250000488

$1.74

Black, Torx Screw M6 X 35

250000646

$0.78

Torx Screw M6 X 45

250000647

$4.76

Torx Screw M6 X 60

250000648

$6.15

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

Washer M5

250200025

$0.61

Pad

291001932

$8.57

Tuflok Plastic Rivet

293150230

$1.21

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Threaded Insert M6 X 1.0

250100242

Unavailable

Tie Wrap 368 mm

293750008

$0.85

Rubber Bumper

293830005

$5.33

Black, Dart

414644300

$0.78

Edge Clip

517302785

$0.70

Grommet

517303756

$3.15

Red Reflector

705011221

$12.32

Amber Reflector | Except Europe Model

705011222

$12.32

White, LH Front Lateral Pannel | Model-White

705007358

$41.51

PANEL BODY FL B-101 PAINTED - Call your local BRP dealership | Model-Red

705011640

Unavailable

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

White, RH Front Lateral Pannel | Model-White

705007359

$41.51

Can-Am Red, RH Front Body Panel

705011641

$355.35

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

Grommet

705003264

$3.43

Rear Rack KIT

715002367

Unavailable

Support Plate

705003841

$0.91

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$11.52

LH Front Facia

705004508

$47.66

RH Front Facia

705004509

$47.66

LH Rear Facia | North America, International

705004731

$16.89

RH Rear Facia | North America, International

705004732

$16.89

Oval Washer

705005156

$4.85

Black, LH Lower Panel | Model-DPS

705005423

$59.97

Black, RH Lower Panel | Model-DPS

705005424

$59.97

Black, LH Rear Lower Panel

705005425

$106.12

Black, RH Rear Lower Panel

705005426

$110.74

PANEL_CAGE CTRL L B-190 - Call your local BRP dealership | Model-Yellow

705005427

Unavailable

White LH Center Cage Panel

705007421

$69.20

RED LH CENTER CAGE PANEL - Call your local BRP dealership

705007424

Unavailable

Yellow RH Center Cage Panel | Model-Yellow

705005428

$69.20

White RH Center Cage Panel

705007422

$69.20

RED RH CENTER CAGE PANEL - Call your local BRP dealership

705007423

Unavailable

YELLOW RH PANEL COVER - Call your local BRP dealership | Model-Yellow

705005437

Unavailable

WHITE RH PANEL COVER - Call your local BRP dealership

705007419

Unavailable

Red RH Panel Cover

705007420

$89.97

Sectional Bent Tube

705016640

$35.35

Bent Sectional Tube

705016092

$39.20

Rear Skid Plate

705005480

$83.05

FENDER FL B-190 - Call your local BRP dealership

705005779

Unavailable

Black LH Front Fender

705006558

$128.43

FENDER FL B-101 PAINTED - Call your local BRP dealership | Model-Red

705011793

Unavailable

Yellow RH Front Fender

705005780

$128.43

Black RH Front Fender

705006559

$128.43

RED RH FRONT FENDER - Call your local BRP dealership | Model-Red

705007337

Unavailable

Yellow LH Fixe Hood

705005781

$514.58

White LH Fixe Hood | Model-White

705007348

$125.35

HOOD FIXED LH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011785

Unavailable

Yellow RH Fixe Hood

705005782

$514.58

White RH Fixe Hood | Model-White

705007349

$125.35

HOOD FIXED RH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011786

Unavailable

Front Radiator Grille

705005784

$59.97

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

Front Skid Plate

705005798

$92.28

FENDER REAR L B-190 - Call your local BRP dealership

705009033

Unavailable

FENDER REAR L B-160 - Call your local BRP dealership

705009035

Unavailable

FENDER REAR L B-101 - Call your local BRP dealership | Model-Can-Am Red

705009041

Unavailable

Yellow RH Rear Fender

705009034

$128.43

Black RH Rear Fender

705009036

$128.43

FENDER REAR R B-101 - Call your local BRP dealership | Model-Red

705009042

Unavailable

LH Inner Fender

705009548

$55.35

RH Inner Fender

705009549

$55.35

Fixe Center Hood

705005821

$369.20

YELLOW LH BUMPER CAP - Call your local BRP dealership

705005824

Unavailable

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

705010791

Unavailable

TRIM BUMPER LH B-101 PAINTED - Call your local BRP dealership

705011810

Unavailable

YELLOW RH BUMPER CAP - Call your local BRP dealership

705005825

Unavailable

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

705010792

Unavailable

TRIM BUMPER RH B-101 PAINTED - Call your local BRP dealership

705011811

Unavailable

Deflector

705007828

$51.51

Yellow LH Cover Front Fender

705005852

$22.28

Black LH Cover Front Fender

705006566

$23.05

Red LH Cover Front Fender | Model-Red

705007340

$136.89

Yellow RH Cover Front Fender

705005853

$23.05

Black RH Cover Front Fender

705006567

$23.05

COVER FENDER RH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011800

Unavailable

Skid Plate

705009447

$115.35

Yellow LH Front Fender Trim

705005953

$26.12

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

705006562

$23.82

RED LH FRONT FENDER TRIM - Call your local BRP dealership | Model-Red

705007338

Unavailable

TRIM FR B-101 PAINTED - Call your local BRP dealership | Model-Red

705011807

Unavailable

YELLOW RH FRONT FENDER TRIM - Call your local BRP dealership

705005954

Unavailable

Black RH Front Fender Trim

705006563

$26.12

LH Rear Radiator Grille

705005983

$18.43

RH Rear Radiator Grille

705005984

$18.43

YELLOW LH REAR FACIA TRIM - Call your local BRP dealership

705005990

Unavailable

TRIM_HEADLIGHT REAR L B-160 - Call your local BRP dealership

705006583

Unavailable

RED LH REAR FACIA TRIM - Call your local BRP dealership | Model-Red

705007372

Unavailable

Yellow RH Rear Facia Trim

705005991

$11.63

TRIM_HEADLIGHT REAR R B-160 - Call your local BRP dealership

705006584

Unavailable

TRIM RR B-101 PAINTED - Call your local BRP dealership | Model-Red

705011832

Unavailable

LH Front Facia Trim

705005992

$9.77

RH Front Facia Trim

705005993

$9.77

LOGO Support

705005994

$13.83

White LH Rear Lateral Panel | Model-White

705007362

$106.12

RED LH REAR LATERAL PANEL - Call your local BRP dealership | Model-Red

705007364

Unavailable

Yellow LH Rear Lateral Panel

705007872

$101.51

PANEL BODY RR B-101 PAINTED - Call your local BRP dealership

705011706

Unavailable

YELLOW RH REAR LATERAL PANNEL - Call your local BRP dealership

705007880

Unavailable

White RH Rear Lateral Panel

705008458

$110.74

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

Unavailable

LH Front Facia Support

705006078

$10.14

RH Front Facia Support

705006079

$10.14

Bagage Central Rack

705006128

$50.74

Central Bagage Rack Cap

705006132

$9.29

Bagage Rack Tube

705006279

$35.35

Clamp

705006623

$3.08

Radiator Grille Bracket

705006635

$10.14

LH Bagage Rack Cover

705006713

$9.29

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

Rear Support Facia Clip

705007044

$2.99

LH Rear Facia Support

705007045

$10.14

RH Rear Facia Support

705007046

$10.14

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

YELLOW LH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007058

Unavailable

Black, LH Top Center Cage Cover | Model-Camo

705008452

$36.89

PANEL_CAGE UP L B-101 - Call your local BRP dealership

705008977

Unavailable

YELLOW RH TOP CENTER CAGE COVER - Call your local BRP dealership | Model-XT Yellow

705007059

Unavailable

Black, RH Top Center Cage Cover | Model-Camo

705008453

$36.89

PANEL_CAGE UP R B-101 - Call your local BRP dealership

705008978

Unavailable

Black Removable Hood | Black Models

705007060

$314.58

Cup | Package Hunter

705007171

$6.18

Side Protector Plate

705008421

$50.74

Body Tube

705007299

$62.28

"P" Bracket, 2" Dia.

705005626

$25.35

LH Bumper Grille

705007497

$23.05

RH Bumper Grille

705007498

$23.05

Hexagonal Head Screw

210262050

$1.74

Flat Washer

224081301

$0.86

Torx Screw M5 X 20

250000724

$1.39

Torx Screw M6 X 20

250000712

$1.74

Flange Elastic Nut M6

233261434

$3.61

Torx Screw M5 X 20

250000724

$1.39

Panel Nut M5 X 0.8

250000958

$3.48

Seal Kit

705008208

Unavailable

RH Lateral Skid Plate

705007038

$64.58

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M6 X 20

250000722

$1.34

Torx Screw M5 X 20

250000724

$1.39
