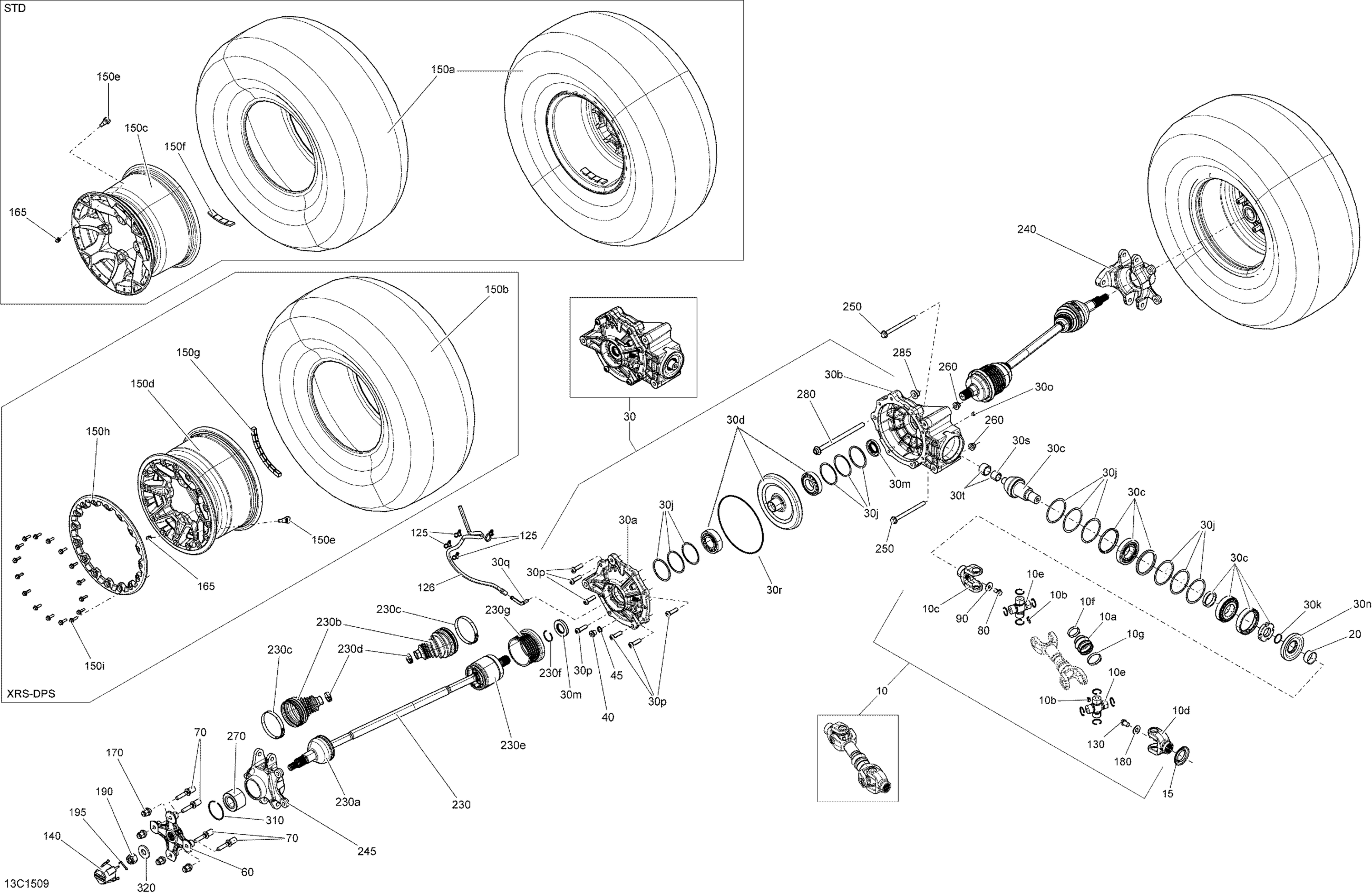

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Drive System, Rear _13C1509 Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

10a

Rubber Boot

715900118

$13.83

10b

Grease Fitting

715900184

$4.62

10b

Grease Fitting | T3

715900295

$4.62

10c

Joint

715900271

$23.05

10d

Joint

715900272

$23.05

10e

Universal Joint Ass'y | T3

703500846

$78.43

10f

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

15

Protector

705501123

$7.37

20

Wear Ring | 4X4

705400036

$25.35

30

Final Drive Unit | Includes 30 to 30m

705502275

$1,324.99

30a

REAR COVER - Call your local BRP dealership

705502171

Unavailable

30b

PINION COVER - Call your local BRP dealership

705502172

Unavailable

30c

Pinion Kit

703500867

$406.12

30d

Gear Kit

703500868

$406.12

30j

Differential Shim Kit

703500839

$50.74

30k

O-Ring

705501554

$4.62

30m

Oil Seal

705501556

$17.66

30n

Oil Seal

705502276

$14.75

30o

Plug Drain

705501724

$5.98

30p

Screw

705502063

$3.08

30q

Breather Tube

705501584

$13.86

30r

Oil Seal

705501749

$8.45

30s

Needle Bearing

703500840

$59.97

30t

Needle Bearing

703500840

$59.97

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

60

Wheel Hub

705501900

$129.20

70

Wheel Stud

250300060

$9.58

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

125

Dart Tie Rap 200MM

710003168

$5.72

126

Polyurethane Hose 10000Mm Long

219704410

$46.12

130

Hex Flange Screw M12 X 16

250001039

$1.74

140

Wheel Cap

705400928

$11.06

150a

Rear Tire 27X11X12 | X

705502938

$221.51

150b

Rear Tire 27X11X12 | X

705502938

$221.51

150c

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$139.97

150d

Black, Rim | XXC

705502244

$139.97

150e

Rim Valve With Cap

705400193

$6.69

150f

1/2 Oz Weight

219704465

$4.35

150g

Not Available As Spare Part - Friction Washer

Unavailable

150h

Yellow Reinforcement Disc

705401329

$78.43

150h

Red Reinforcement Disc | XRS-DPS White, Except EUR

705401445

$81.69

150i

Hex. Flange Screw M6 X 25

250000787

$1.83

165

Valve Cap

293000110

$1.18

170

Black, Wheel Nut M10 X 1.25

250100184

$2.48

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400036

$1.74

230

CV Joint

705502414

$261.24

230a

CV Joint

715900391

$253.82

230b

Boot Kit

705501864

$41.51

230c

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

Plunging Joint

705501865

$249.20

230f

Circlip

705501781

$5.38

230g

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

240

LH Rear Knuckle

705501730

$184.58

245

RH Rear Knuckle

705501731

$193.82

250

Hex. Flange Screw M10 X 125

230602546

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

280

Hex. Flange Screw M12 X 190

230629087

Unavailable

285

Elastic Flange Nut M12

233221416

$2.33

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28
