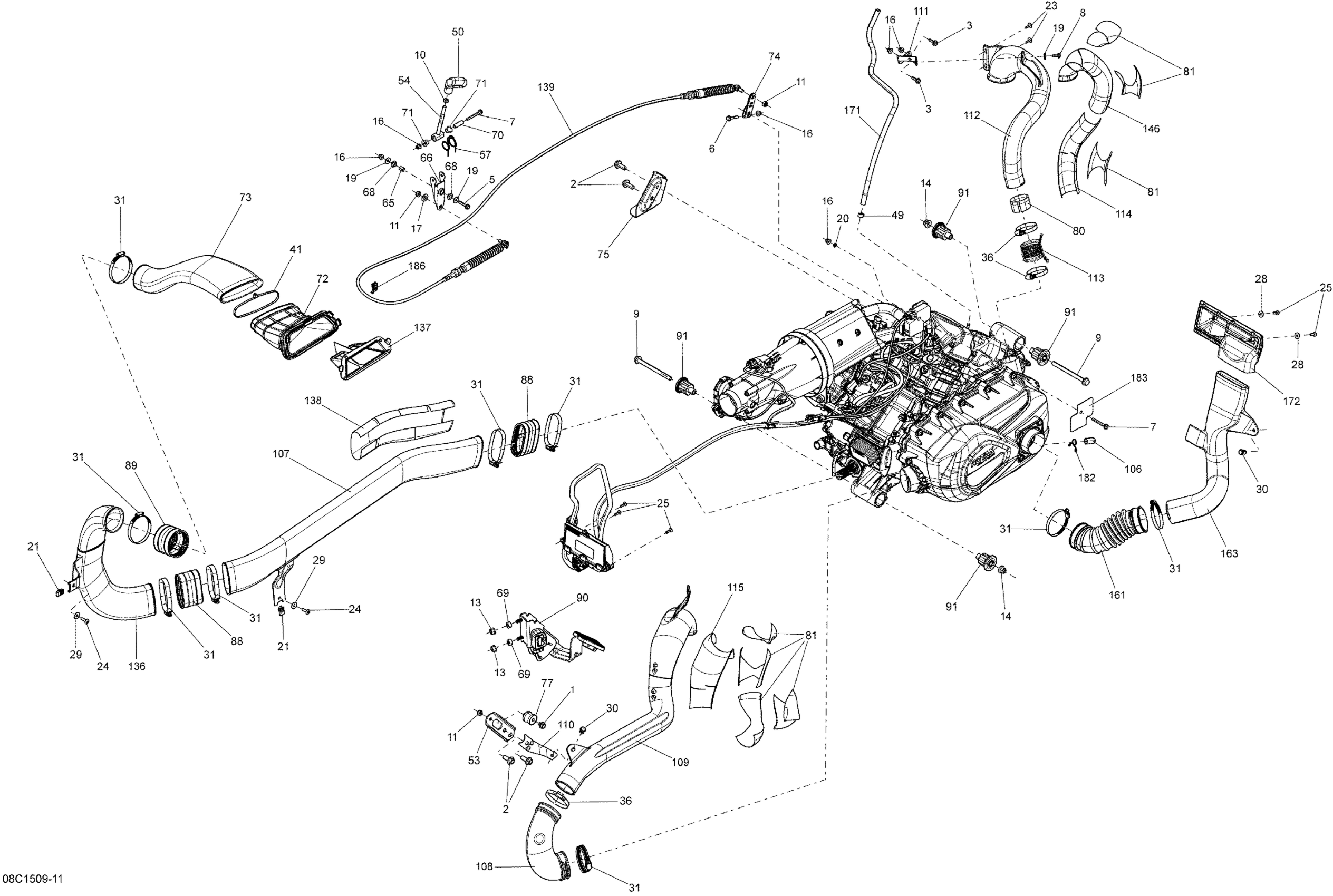

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Engine _08C1509 Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

2

Hex. Flange Screw M10 X 25

207602544

$1.52

3

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

6

Hex. Flange Screw M6 X 35

207663544

$0.85

7

Hex. Flange Screw M6 X 50

207665044

$3.88

8

Hex. Flange Screw M6 X 16

210261650

$1.40

9

Hex. Flange Screw M10 X 125

230602546

$6.99

10

Hex. Jam Nut M8

232180491

$7.09

11

Hex. Elastic Stop Nut M8

232581414

$0.54

13

Hex. Flange Nut M8

233081416

$1.87

14

Hex. Flange Elastic Nut M10

233201436

$2.00

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Flat Washer 10 mm

234001410

$1.12

19

Flat Washer 6 mm

234062410

$0.73

20

External Serrated Lock Washer 6 mm

234461608

$1.06

21

Panel Nut M6 X 1.0

250100198

$1.99

23

Screw M4 X 16

250000725

$3.30

24

Torx Screw M6 X 20

250000722

$1.54

25

Torx Screw K50 X 16

250000720

$1.60

28

Washer M5

250200025

$0.70

29

Flat Washer

250200082

$0.40

30

Tuflok Plastic Rivet

293150230

$1.39

31

Norma Clamp

293650091

$10.54

36

Norma Gear Clamp

293650118

$11.18

41

Tie Wrap 368 mm

293750008

$0.97

49

Spring Clamp

414415200

$0.81

50

Lever Handle

707000284

$17.88

53

Upper Engine Bracket

707000707

$5.25

54

Upper Lever Arm

707000711

$35.79

57

Lever Arm Spring

707000750

$2.68

65

Bushing

707000801

$2.68

66

Lower Lever Arm

707000828

$17.13

68

Flanged Bushing

707000847

$0.97

69

Bushing

707000848

$1.04

70

Bushing

707001376

$4.09

71

Flanged Bushing

707000869

$2.13

72

Adaptor

707000908

$32.81

73

Primary Air Intake

707000909

$20.12

74

Lever

707000911

$18.63

75

Cable Support | Engine 1000

707000919

$14.43

77

Rubber Isolator

707000949

$10.33

80

Reflector

707000988

$4.09

81

Reflective Sheet

707000991

$8.48

88

Flexibale Adaptor

707002585

$14.31

89

Flexibale Adaptor

707002585

$14.31

90

Accelerator Pedal

707001166

$261.24

91

Vibration Damper

707001169

$42.99

106

Plug

707001185

$1.04

107

Air Inlet

707001228

$49.22

108

Front Adaptor

707001229

$20.12

109

CVT Outlet

707001230

$44.75

110

Front Support

707001231

$13.40

111

Rear Support

707001232

$8.24

112

CVT Outlet

707001243

$59.67

113

Adaptor

707001274

$14.90

114

Reflector

707001284

$7.21

115

Reflector

707001286

$7.21

136

Air Inlet

707001339

$17.13

137

CVT Filter

707001344

$13.90

138

Reflector

707001346

$27.58

139

Shifting Cable

707001348

$59.67

146

Reflector

707001360

$7.21

161

Flexible Adaptor

707001400

$20.12

163

Air Inlet

707001401

$43.25

171

Hose

219704549

$46.24

172

Filter

707001422

$18.63

182

Retainer Clip

707800506

$10.51

183

Insulator Pad

710000073

$10.30

186

Clip Tie-Rap

710002899

$7.84
