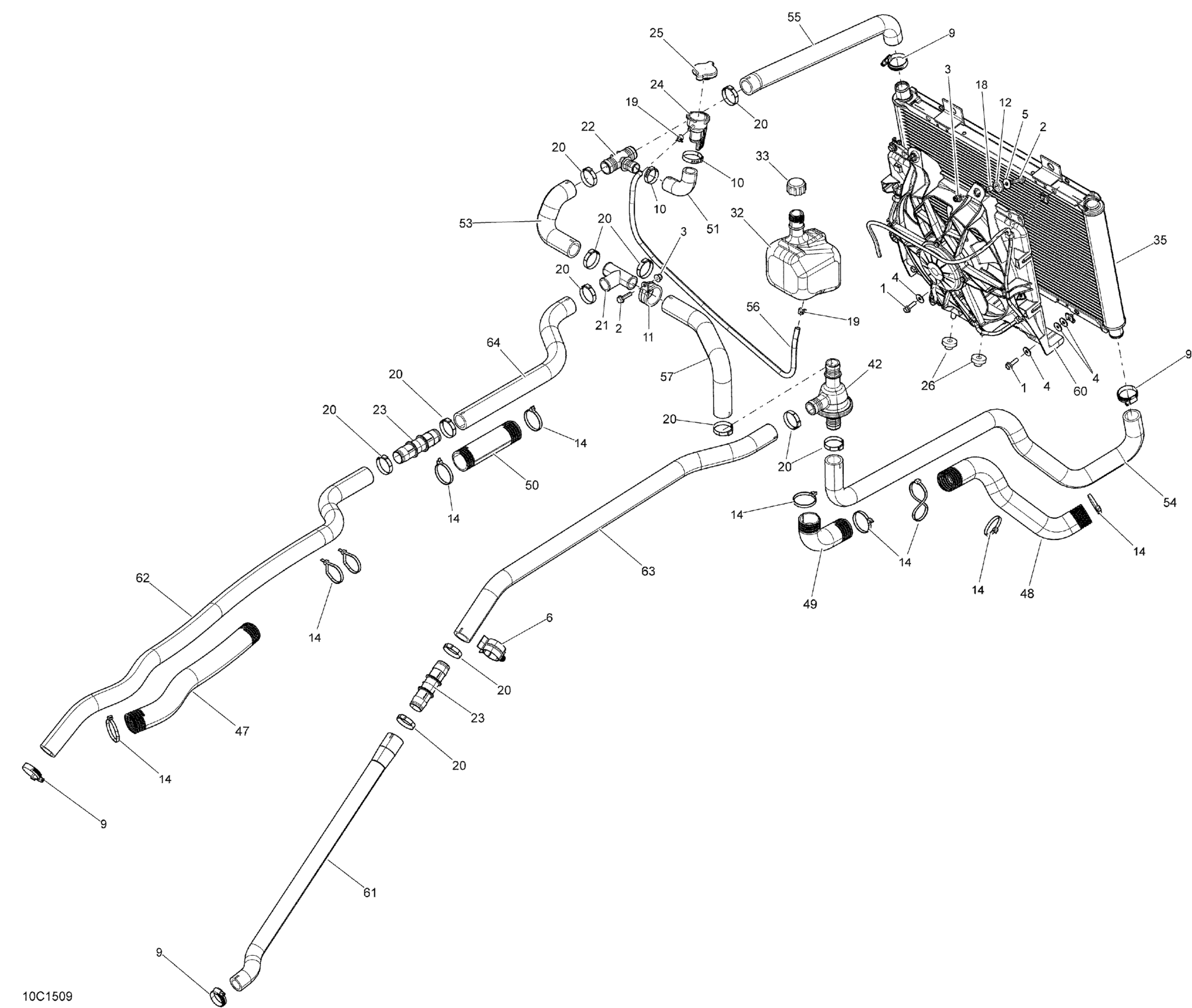

Can-Am Maverick MAX 1000_STD_XRS-DPS, 2015 Cooling System _10C1509 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Screw M6 X 25

207662534

$2.00

3

Flange Elastic Nut M6

233261434

$4.15

4

Flat Washer 6 mm

234062410

$0.73

5

Flat Washer

250200082

$0.40

6

Retainer

275500590

$8.24

9

Norma Gear Clamp

293650098

$4.15

10

Crimp Clamp

293650099

$4.07

11

Hose Retainer

293650218

$7.72

12

Grommet

709000582

$4.25

14

Tie Wrap 368 mm

293750008

$0.97

18

Bushing

293900105

$6.07

19

Spring Clamp

414554800

$0.81

20

Gear Clamp

509000162

$4.90

21

T-Fitting

509000219

$14.90

22

T-Fitting

509000372

$9.03

23

Fitting

509000914

$6.75

24

Filler Neck

709200179

$17.13

25

Radiator Pressure Cap

709200207

$21.61

26

Grommet

709200285

$8.13

32

Coolant Tank Ass'y

709200624

$91.76

33

Tank Cap

709200587

$5.15

35

Radiator

709200395

$346.24

42

Thermostat

709200406

$88.78

47

Tubing 35 MM 1000MM Long

219704428

$9.84

48

Tubing 35 MM 1000MM Long

219704428

$9.84

49

Tubing 35 MM 1000MM Long

219704428

$9.84

50

Tubing 35 MM 1000MM Long

219704428

$9.84

51

Filler Neck Hose

709200439

$9.54

53

Hose

709200443

$13.39

54

Radiator Inlet Hose

709200444

$60.42

55

Outlet Hose

709200445

$22.36

56

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

57

Hose

709200447

$22.36

60

Fan Ass'y

709200564

$217.88

61

Pump Hose

709200496

$24.60

62

Hose

709200497

$46.24

63

Pump Hose

709200519

$24.60

64

Intermediate Hose

709200520

$22.36
