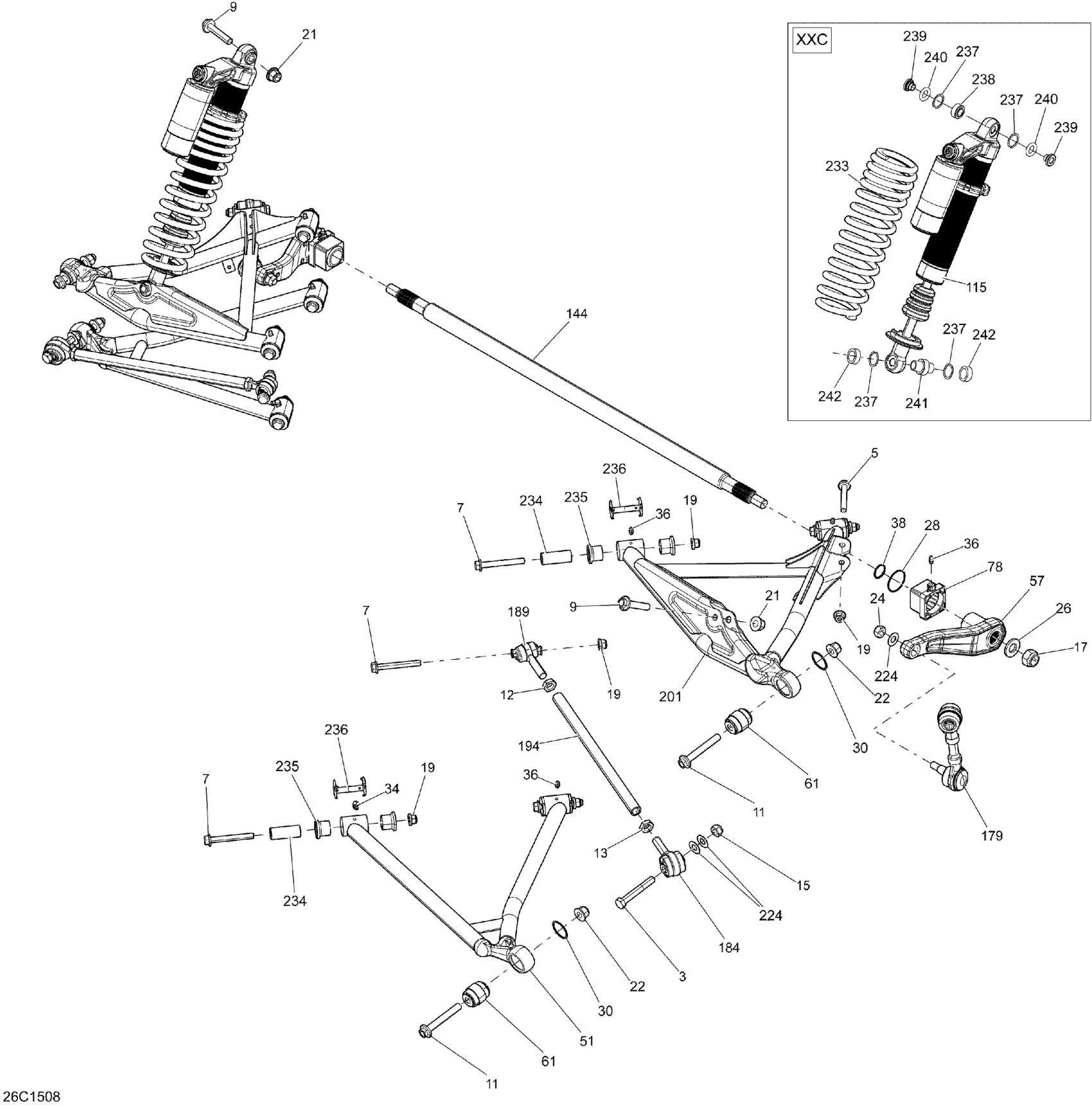

Can-Am Maverick 1000_XXC, 2015 Rear Suspension _26C1508 Diagram

#

Description
Price

3

Hex. Screw M12 X 80

207028046

$3.73

5

Hex. Flange Screw M10 X 70

207607046

$2.82

7

Hex Flange Screw M10 X 80

207608046

$5.12

9

Hex. Flange Screw M12 X 60

207626046

$6.99

11

Hex. Flange Screw M12 X 85

207628546

$6.36

12

LH Hex. Lock Nut M14

232175411

$6.21

13

Hex. Jam Nut M14

232170411

$1.43

15

Elastic Stop Nut M12

232521416

$1.61

17

Elastic Stop Nut M18

232591414

$4.00

19

Hex. Flange Elastic Nut M10

233201436

$2.00

19

Hex. Flange Elastic Nut M10

233201436

$2.00

21

Elastic Flange Nut M12

233221416

$2.67

22

Elastic Flange Nut M12

233221416

$2.67

24

Hex. Flange Elastic Nut M12

250000047

$1.79

26

Washer

250200045

$7.21

28

O-Ring

293300100

$5.34

30

Retaining Ring

293370093

$6.75

34

Grease Fitting 90°

293550056

$1.04

36

Grease Fitting

408200700

$3.21

36

Grease Fitting

408200700

$3.21

38

Retaining Ring

706000251

$5.90

51

LH REAR PAINTED LOWER ARM - Call your local BRP dealership

706001484

$161.16

51

Black RH Rear Lower Arm

706001485

$177.58

57

Sway Bar Lever

706001371

$152.96

61

Radial Joint

706001373

$49.22

78

Sway Bar Housing

706001402

$13.78

115

Rear Shock

706002056

Unavailable

144

Sway Bar

706001356

$170.87

179

LH Double Ball Joint

706001741

$95.49

179

RH Double Ball Joint

706001742

$95.49

184

Ball Joint | Package-STD, XRS, XRSDPS

706001437

$46.24

189

Ball Joint | Package-STD, XRS, XRSDPS

706001798

$46.24

194

Adjustment Rod

706001801

Unavailable

201

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XXC Black

706001881

Unavailable

201

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XXC Black

706001883

Unavailable

201

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001882

Unavailable

201

RED RH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001884

Unavailable

224

Hardened Washer

706200281

$2.69

233

YELLOW REAR SPRING - Call your local BRP dealership | Model-XXC Black

706001462

Unavailable

233

RED REAR SPRING - Call your local BRP dealership | Model-XXC White

706001591

Unavailable

234

Sleeve

706201590

$9.76

235

Suspension Arm Bushing

706204409

$8.40

236

Wear Plate

706201660

$0.85

237

Retaining Ring

715900252

$10.24

238

Spherical Bearing

715900266

$73.85

239

Internal Bushing

715900267

$24.60

240

O-Ring Bushing

715900268

$12.49

241

Spherical Bearing

715900330

$79.07

242

Protector

715900331

$12.49
