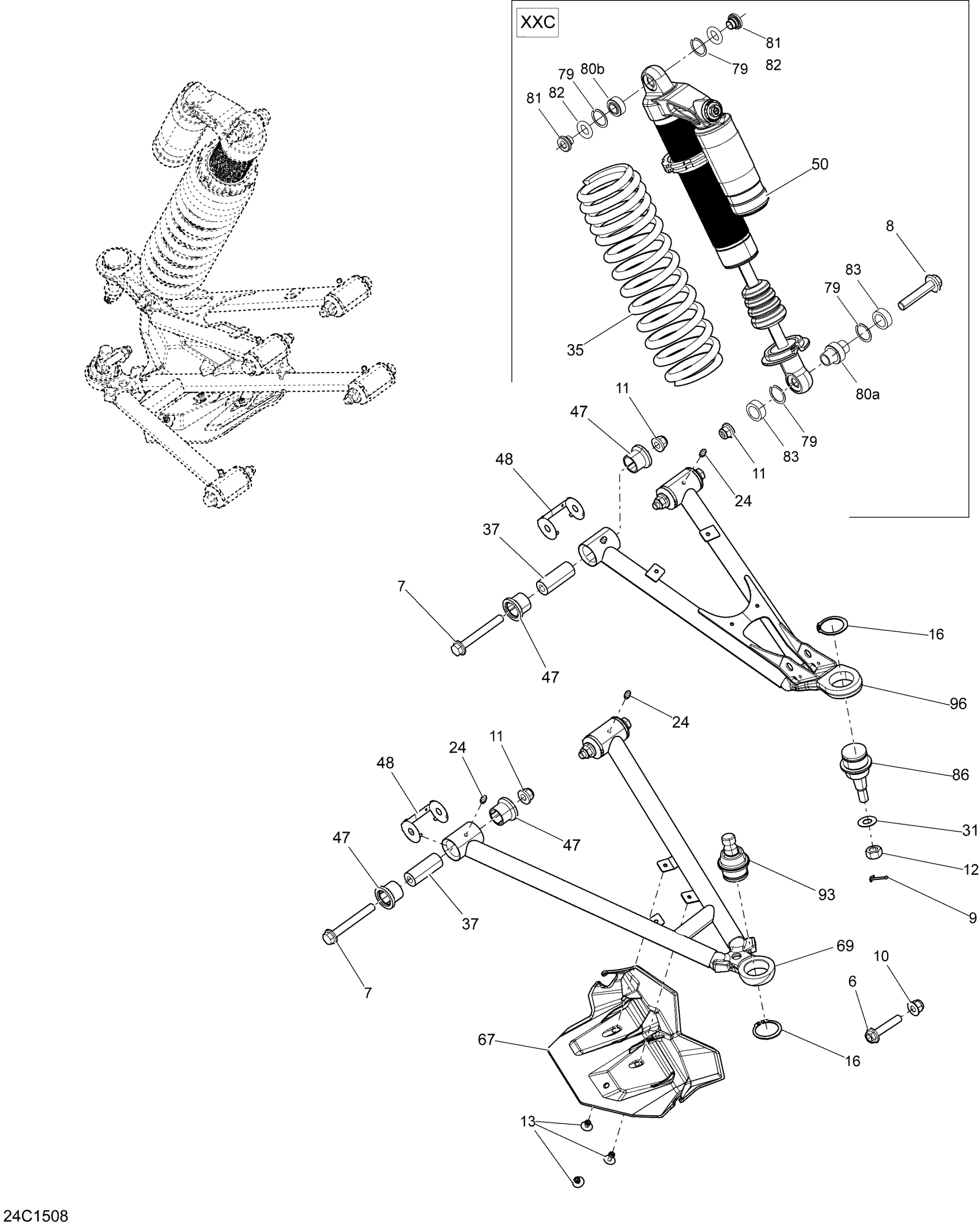

Can-Am Maverick 1000_XXC, 2015 Front Suspension _24C1508 Diagram

#

Description
Price

6

Hex. Flange Screw M10 X 50

207605044

$4.39

7

Hex Flange Screw M10 X 80

207608046

$4.46

8

Hex. Flange Screw M12 X 60

207626046

$6.08

9

Cotter Pin

211400017

$0.25

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Hex. Flange Elastic Nut M10

233201436

$1.74

12

Nut M12

250100099

$1.64

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

16

Circlip

293370035

$2.55

24

Grease Fitting

408200700

$2.80

31

Hardened Washer

706200281

$2.34

35

YELLOW FRONT SPRING - Call your local BRP dealership | Model-XXC Black

706201715

$87.66

35

RED FRONT SPRING - Call your local BRP dealership | Model-XXC White

706201825

Unavailable

37

Sleeve

706201590

$11.06

47

Suspension Arm Bushing

706204409

$8.29

48

Wear Plate

706201660

$0.89

50

Front Shock

706202249

$601.51

67

LH Joint Protector

706202808

$9.29

67

RH Joint Protector

706202809

$9.29

69

LH Front Lower Arm

706201726

$184.58

69

RH Front Lower Arm

706201727

$184.58

79

Retaining Ring

715900252

$10.98

80a

Spherical Bearing

715900330

$81.51

80b

Spherical Bearing

715900266

$76.12

81

Internal Bushing

715900267

$27.66

82

O-Ring Bushing

715900268

$13.52

83

Protector

715900331

$13.83

86

Ball Joint

706202044

$35.14

93

Ball Joint

706202045

$35.35

96

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XXC Black

706202094

Unavailable
