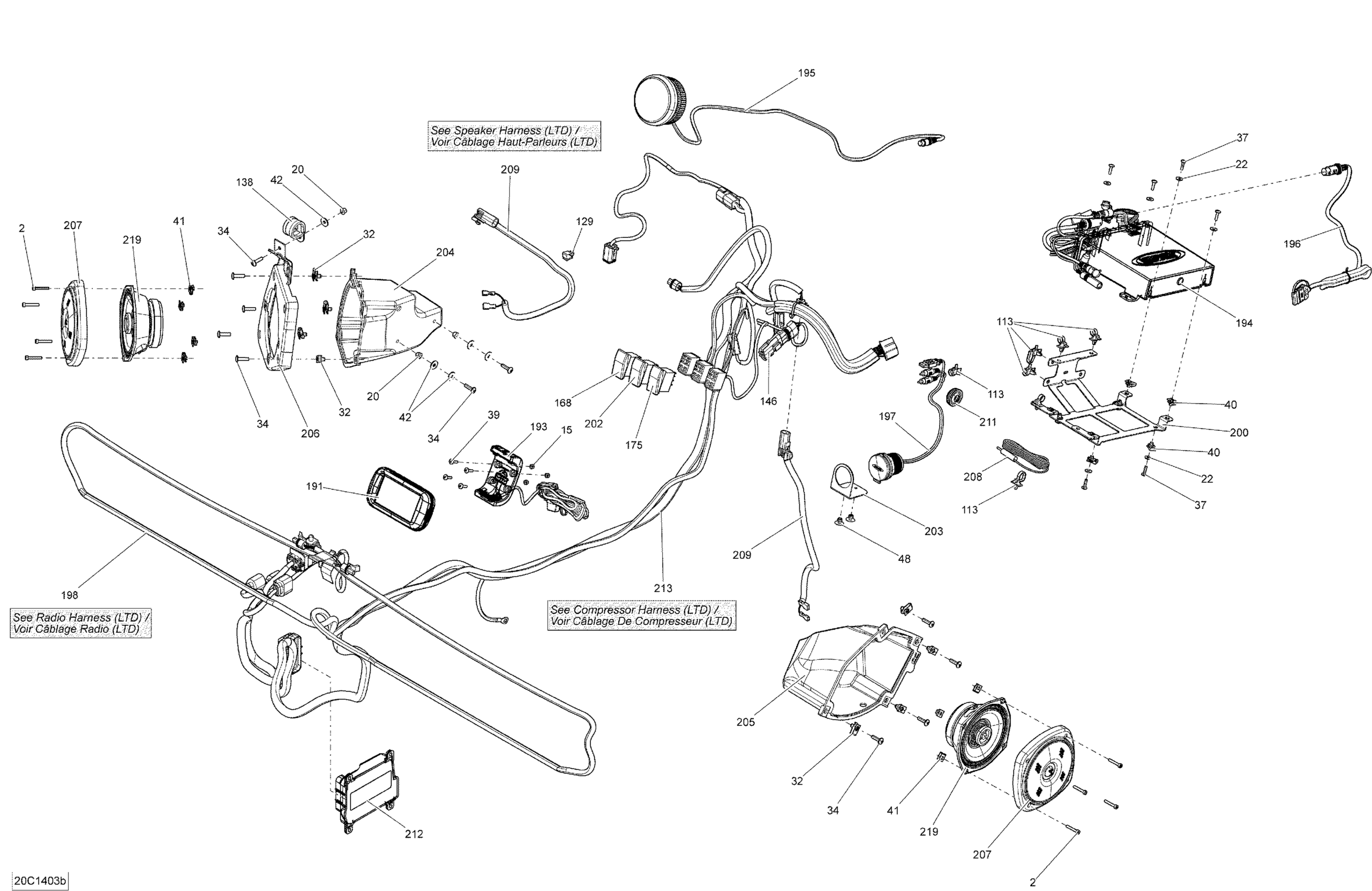

Can-Am Maverick 1000, XXC, 2014 Electrical System Diagram

#

Description
Price

4

Hex. Screw M4 X 25

207142544

$1.63

5

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

6

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8

Hex. Flange Screw M6 X 16

207661644

$0.61

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

11

Hex. Forming Screw M5 X 16

210251650

$0.92

12

Hex. Nut M6

232061600

$0.91

13

Elastic Stop Nut M4

232541414

$0.48

14

Not Available As Spare Parts

XXX

Unavailable

15

Elastic Stop Nut M6

232561414

$1.55

20

Hex. Flange Elastic Nut M5

233251414

$1.66

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Hex. Flange Elastic Nut M6

233261494

$1.26

23

Flat Washer M5

234051410

$0.44

24

Flat Washer 6 mm

234061410

$1.04

25

Stainless Steel Flat Washer

234062670

$1.74

27

Lock Washer 5 mm | Europe

234151401

$0.46

28

Lock Washer Helical M6

234161601

$0.92

29

External Serrated Lock Washer 6 mm

234461608

$0.92

32

Phillips Screw K40 X 16

250000723

$0.81

36

Torx Truss M6X14

250000789

$4.41

39

Clip

270000141

$8.33

41

Diagnostic Connector

278002704

$15.57

43

Pop Rivet 3/16"

293150103

$0.54

44

Threaded Insert M6 X 1.0

250100242

Unavailable

45

Mount Dart

293730040

$0.86

46

Tie Wrap 142 mm

293750002

$0.88

47

Tie Wrap 368 mm

293750008

$0.85

98

Clip Tie-Rap

293750063

$8.45

99

Pop Rivet 3/16"

390402400

$0.25

100

Tie-Rap 180 mm

414115200

$0.09

106

Clip

414227300

$1.45

107

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

108

Not Available As Spare Parts

XXX

Unavailable

109

Flasher Decal | Europe

704902614

$16.89

117

Flasher Arm Support | Europe

709400810

$27.66

118

Horn

710004791

$37.66

121

RH High Light Support

710001115

$5.52

121

LH High Light Support

710001036

$5.52

122

RH Low Light Support

710001094

$9.22

122

LH Low Light Support

710001037

$9.22

126

RH Low Front Housing

710001081

$16.89

126

LH Low Front Housing

710001083

$16.89

127

RH Low Rear Housing

710001082

$10.98

127

LH Low Rear Housing

710001084

$10.98

130

RH High Front Housing

710001085

$16.89

130

LH High Front Housing

710001087

$16.89

131

RH High Rear Housing

710001086

$10.98

131

LH High Rear Housing

710001088

$10.98

134

Setting Screw

710001147

$12.91

136

Not Available As Spare Parts

XXX

Unavailable

137

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

138

DC Outlet

710001248

$31.17

139

Starter Relay

710007777

$46.89

140

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

140a

Bulb

520000758

$7.49

141

Turn Signal | Europe

710001721

$198.43

142

Hi/Low Switch | Except Europe

710001725

$23.74

143

Day Light | Europe

710001726

$36.89

144

4X4 Switch

710001737

$32.28

145

Switch DPS

710001781

$23.74

146

Battery Holder

710001916

$19.20

147

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

148

Flasher | Europe

710002047

$32.28

153

Switch, Over ride

710002053

$19.27

154

License Light

710002055

$59.99

154a

Bulb

219800128

$2.99

156

Switch Hazard | Europe

710002076

$18.43

159

Ignition Switch

710008400

$78.43

160

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

161

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

161a

Halogen Bulb

415129249

$39.97

162

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

162a

Halogen Bulb

415129249

$39.97

163

Engine Start Button

710002594

$59.97

165

Tie-Rap Clip

710002896

$4.60

168

Hi/Low Switch | Except Europe

710001725

$23.74

169

Harness Ass'y | Europe

710004346

$406.12

170

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

171

LIGHT SUPPORT - Call your local BRP dealership | Europe

710003150

Unavailable

172

Cable Positif *Cable-Positive

710004389

$36.89

173

Dart Tie Rap 200MM

710003168

$5.72

175

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

177

Flasher Unit

710003239

$78.43

178

Heat Deflector

710003265

$15.22

179

Fuse Holder

710003335

$9.29

183

WIRING HARNESS ASSY - Call your local BRP dealership | Main Harness

710004342

Unavailable

201

Multifunction Speedometer | XRS, XRS DPS

710004547

$415.35

201a

Speedometer Button | XTP

415129355

$13.94

201b

Gauge Ring

415129348

$11.71

201c

Lens | XTP

415129349

$23.05

202

Switch PPS Sport

710003541

$18.43

206

Rear Harness

710003680

$27.66

206

WIRING HARNESS REAR - Call your local BRP dealership | Europe

710003681

Unavailable
