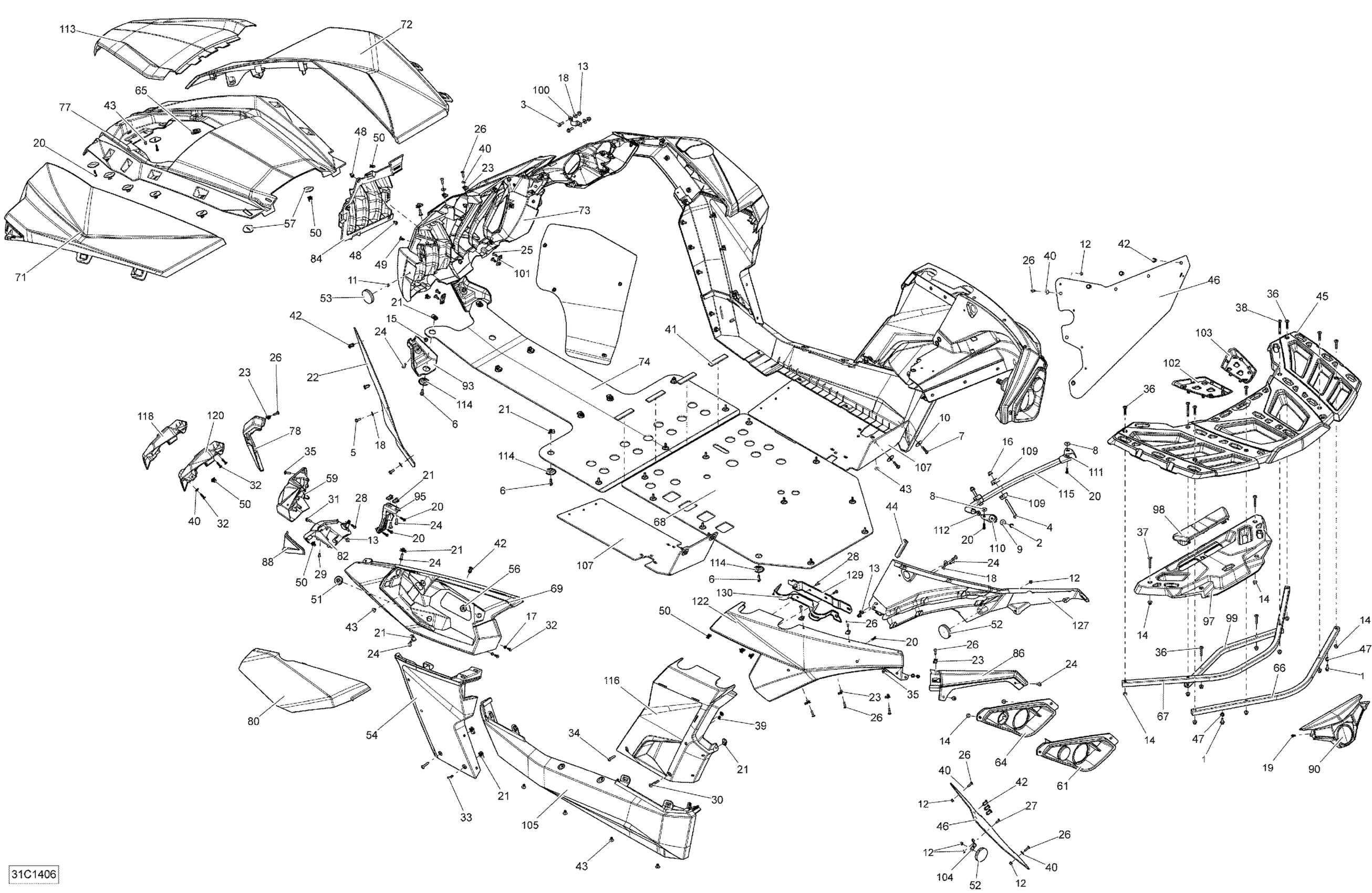

Can-Am Maverick 1000_XMR, 2014 Body And Accessories _31C1406 Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.00

Hex. Flange Screw M6 X 25

207562544

$1.60

Hex. Flange Screw M6 X 20

207662084

$0.96

Hex. Flange Screw M8 X 70

207687044

$7.01

Hex. Flange Screw M6 X 16

210261650

$1.40

Hexagonal Head Screw

210262050

$2.00

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

Flat Washer

224060201

$1.12

Flat Washer

224061201

$1.27

Flat Washer

224081301

$0.84

Hex. Flange Elastic Nut M5

233251414

$1.91

Elastic Flange Nut M5

233251494

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M6

233261494

$1.45

Hex. Flange Elastic Nut M8

233281414

$1.31

Flat Washer M5

234051410

$0.51

Stainless Steel Flat Washer

234062670

$2.00

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

Hex. Flange Screw K50 X 20

241152060

$1.81

Panel Nut M6 X 1.0

250100198

$1.99

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M6 X 20

250000722

$1.54

Torx Truss Screw M6 X 16

250000721

$1.60

Torx Screw M5 X 20

250000724

$1.60

Not Available As Spare Parts

XXX

Unavailable

Torx Screw K50 X 16

250000720

$1.60

Self Tapping Screw #8 X 5/8

250000202

$1.43

Torx Screw M6 X 45

250000215

$1.79

Torx Screw M6 x 25

250000284

$2.00

Truss Head Torx Screw K50 X 20

250000297

$2.00

Torx Truss Screw M6 X 20

250000350

$5.04

Torx Truss Screw M6 X 30

250000843

$2.00

Torx Truss Screw M6 X 20

250000488

$2.00

Black, Torx Screw M6 X 35

250000646

$0.90

Torx Screw M6 X 45

250000647

$5.46

Torx Screw M6 X 60

250000648

$7.06

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

Washer M5

250200025

$0.70

Pad

291001932

$9.84

Tuflok Plastic Rivet

293150230

$1.39

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Was 293200017 Neoprene Seal

219704365

$135.79

Rear Rack KIT

715002367

Unavailable

Deflector

705007828

$49.97

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Bumper

293830005

$6.12

Black, Dart

414644300

$0.90

Edge Clip

517302785

$0.81

Grommet

517303756

$3.61

Red Reflector

705011221

$11.96

Amber Reflector | Except Europe Model

705011222

$11.96

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

Grommet

705003264

$3.94

Support Plate

705003841

$0.91

Not Available As Spare Parts

XXX

Unavailable

LH Front Facia

705004508

$46.24

RH Front Facia

705004509

$46.24

LH Rear Facia | North America, International

705004731

$16.39

RH Rear Facia | North America, International

705004732

$16.39

Not Available As Spare Parts

XXX

Unavailable

Oval Washer

705005156

$4.70

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Rear Skid Plate

705005480

$80.57

Black LH Front Fender

705006558

$124.60

Black RH Front Fender

705006559

$124.60

Yellow LH Fixe Hood

705005781

$499.22

Yellow RH Fixe Hood

705005782

$499.22

Front Radiator Grille

705005784

$57.43

Front Skid Plate

705005798

$88.03

FIXE CENTER HOOD - Call your local BRP dealership

705007960

Unavailable

YELLOW LH BUMPER CAP - Call your local BRP dealership

705005824

Unavailable

YELLOW RH BUMPER CAP - Call your local BRP dealership

705005825

Unavailable

Black LH Cover Front Fender

705006566

$21.61

Black RH Cover Front Fender

705006567

$21.61

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

705006562

Unavailable

Black RH Front Fender Trim

705006563

$25.34

LH Rear Radiator Grille

705005983

$18.63

RH Rear Radiator Grille

705005984

$18.63

TRIM_HEADLIGHT REAR L B-160 - Call your local BRP dealership

705006583

Unavailable

TRIM_HEADLIGHT REAR R B-160 - Call your local BRP dealership

705006584

Unavailable

LH Front Facia Trim

705005992

$9.48

RH Front Facia Trim

705005993

$9.48

LOGO Support

705005994

$12.49

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

$13.87

LH Front Facia Support

705006078

$9.48

RH Front Facia Support

705006079

$9.48

Bagage Central Rack

705006128

$48.48

Central Bagage Rack Cap

705006132

$8.84

Bagage Rack Tube

705006279

$34.30

Clamp

705006623

$3.07

Radiator Grille Bracket

705006635

$9.28

LH Bagage Rack Cover

705006713

$8.84

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

Not Available As Spare Parts

XXX

Unavailable

LH Lateral Middle Panel | STD

705006991

$65.64

RH Lateral Middle Panel | STD

705006992

$65.64

RH Lateral Skid Plate

705007038

$59.67

Rear Support Facia Clip

705007044

$2.79

LH Rear Facia Support

705007045

$9.48

RH Rear Facia Support

705007046

$9.48

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

Black Removable Hood | Black Models

705007060

$305.19

Cup | Package Hunter

705007171

$6.00

Body Tube

705007299

$60.42

Yellow LH Rear Lateral Panel

705007872

$96.99

Yellow RH Rear Lateral Panel

705007873

$96.99

LH Bumper Grille

705007497

$19.37

RH Bumper Grille

705007498

$19.37

Not Available As Spare Parts

XXX

Unavailable

FENDER REAR L B-160 - Call your local BRP dealership

705009035

Unavailable

Black RH Rear Fender

705009036

$124.60

LH Inner Fender

705009548

$49.97

RH Inner Fender

705009549

$49.97

Support Plate

705007917

$12.30

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$11.18
