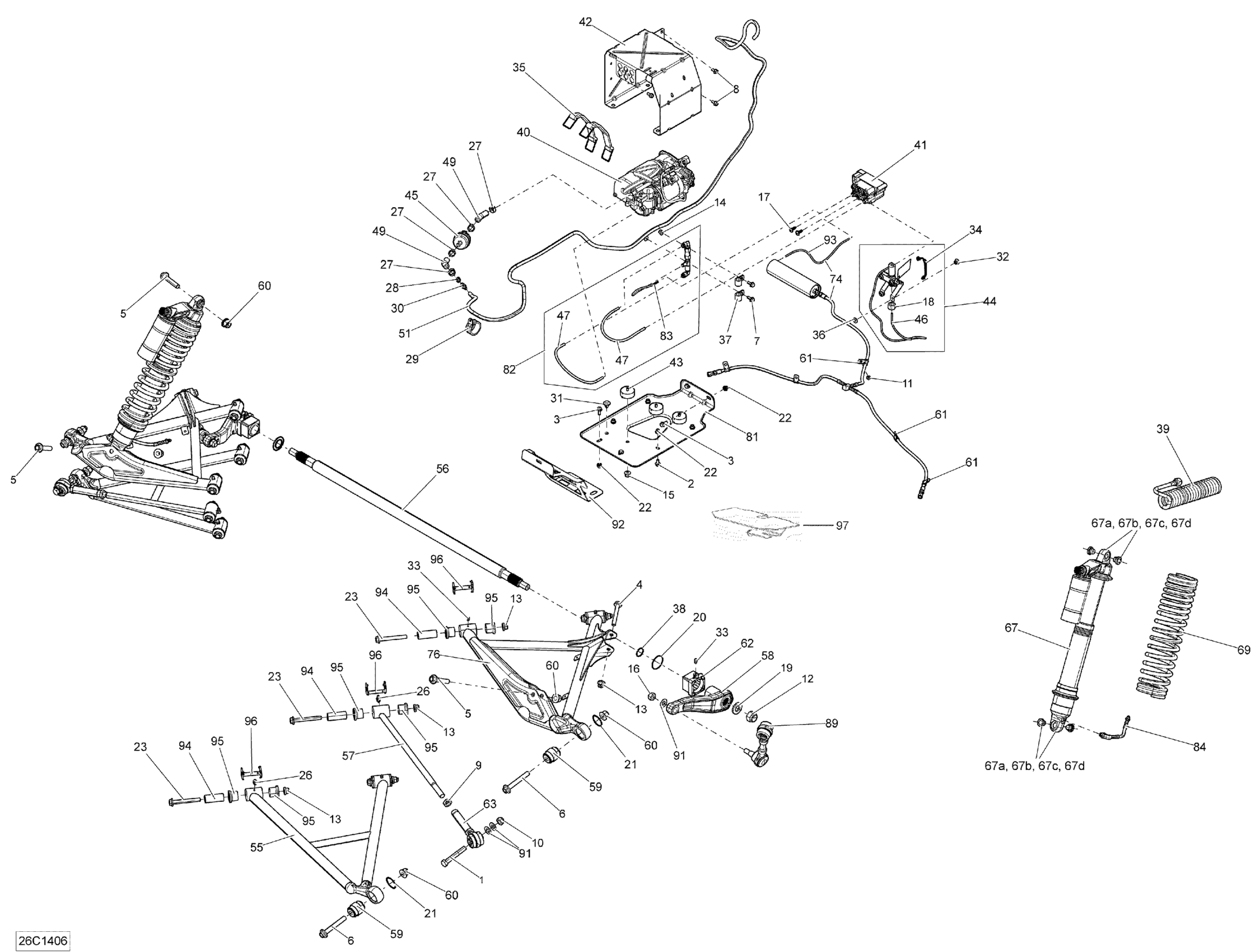

Can-Am Maverick 1000_XMR, 2014 Rear Suspension _26C1406 Diagram

#

Description
Price

1

Hex. Screw M12 X 80

207028046

$3.25

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

4

Hex. Flange Screw M10 X 70

207607046

$2.91

5

Hex. Flange Screw M12 X 60

207626046

$6.08

6

Hex. Flange Screw M12 X 85

207628546

$5.54

7

Hex. Flange Screw M6 X 16

207661644

$0.61

8

Hex. Flange Screw M6 X 12

210261250

$1.56

9

LH Hex. Lock Nut M14

232175411

$6.45

10

Elastic Stop Nut M12

232521416

$1.40

11

Elastic Stop Nut M6

232561414

$1.55

12

Elastic Stop Nut M18

232591414

$3.48

13

Hex. Flange Elastic Nut M10

233201436

$1.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Hex. Flange Elastic Nut M8

233281414

$1.14

16

Hex. Flange Elastic Nut M12

250000047

$1.56

17

Oval Head Torx Screw K60 X 16

250000546

$1.74

18

Hex. Nut With Nylon 1/2" X 20

250100124

$7.28

19

Washer

250200045

$7.37

20

O-Ring

293300100

$5.52

21

Retaining Ring

293370093

$7.37

22

Threaded Insert M6 X 1.0

250100242

Unavailable

23

Hex Flange Screw M10 X 80

207608046

$4.46

26

Grease Fitting 90°

293550056

$1.37

27

Crimp Clamp

293650053

$2.42

28

Clamp, Oetiker

293650195

$1.37

29

Hose Retainer

293650218

$8.45

30

Straight Fitting

293710035

$8.63

31

Mount Dart

293730040

$0.86

32

Pop Rivet 3/16"

390406500

$0.70

33

Grease Fitting

408200700

$2.80

34

O-Ring

414811400

$6.34

35

Battery Strap

515176044

$14.27

36

Washer

517124300

$0.16

37

Open Clamp

705600040

$12.91

38

Retaining Ring

706000251

$6.45

39

Auxiliary Hose

706000808

$101.51

40

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

40a

Solenoid Valve

706001104

Unavailable

40b

Pressure Connector 4mm

715900198

$9.23

40c

PRESSURE CONNECTOR 6MM - Call your local BRP dealership

715900199

Unavailable

41

Solenoid Valve

706001104

Unavailable

42

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

43

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

44

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

45

Air Filter

706001141

$32.28

46

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

47

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$9.72

49

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

51

Polyurethane Hose 10000Mm Long

219704410

$46.12

55

Black LH Rear Lower Arm

706001354

$193.82

55

Black RH Rear Lower Arm

706001355

$193.82

56

Sway Bar

706001356

$179.97

57

Rear Coupling Bar

706001357

$46.12

58

Sway Bar Lever

706001371

$161.51

59

Radial Joint

706001373

$41.51

60

Elastic Flange Nut M12

233221416

$2.33

61

Bracket

705601337

$2.69

62

Sway Bar Housing

706001402

$14.75

63

LH Ball Joint

706001438

$55.35

67

REAR SHOCKS - Call your local BRP dealership

706001465

Unavailable

67a

Spherical Bearing

715900251

$76.12

67b

Retaining Ring

715900252

$10.98

67c

Interior Bushing | XTP

715900210

$14.75

67d

O-Ring Bushing

715900209

$13.52

69

YELLOW SPRING - Call your local BRP dealership

706001466

Unavailable

74

REAR SHOCKS DISTRIBUTOR - Call your local BRP dealership

706001565

Unavailable

76

YELLOW LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002093

Unavailable

76

YELLOW RH REAR UPPER ARM - Call your local BRP dealership | Model-XRS Black

706002094

Unavailable

81

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

82

PRESSURE DISTRIBUTOR - Call your local BRP dealership

706001716

Unavailable

83

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

84

HOSE - Call your local BRP dealership

706001937

Unavailable

89

LH Double Ball Joint

706001741

$101.51

89

RH Double Ball Joint

706001742

$101.51

91

Hardened Washer

706200281

$2.34

92

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

93

HOSE 4.0MM - Call your local BRP dealership

706001874

$9.72

94

Sleeve

706201590

$11.06

95

Suspension Arm Bushing

706204409

$8.29

96

Wear Plate

706201660

$0.89

97

Heat Deflector

706001768

Unavailable
