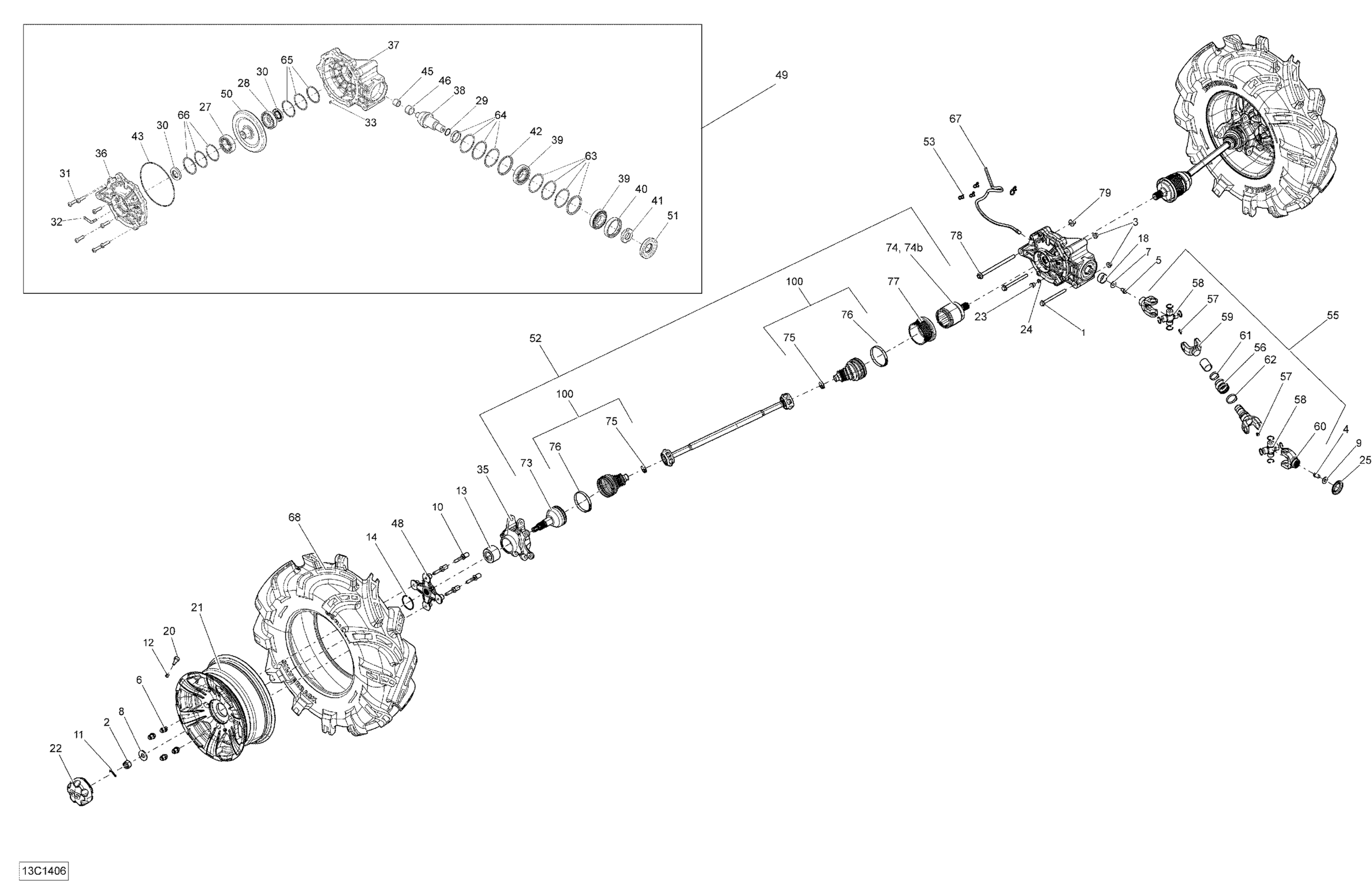

Can-Am Maverick 1000_XMR, 2014 Drive System, Rear _13C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$6.99

2

Hex. Flange Castellated Nut M18

232291413

$3.24

3

Hex. Flange Elastic Nut M10

233201436

$2.00

4

Hex Flange Screw M12 X 16

250001039

$2.00

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

6

Black, Wheel Nut M10 X 1.25

250100184

$3.54

7

Flat Washer M10 | 4X4

250200014

$1.34

8

Conical Spring Washer M18

250200171

$6.06

9

Flat Washer M12

250200102

$2.00

10

Wheel Stud

250300060

$9.30

11

Cotter Pin

250400036

$2.00

12

Valve Cap

293000110

$1.15

13

Ball Bearing

293350150

$50.34

14

Circlip

293370019

$4.68

18

Wear Ring | 4X4

705400036

$24.60

20

Rim Valve With Cap

705400193

$6.49

21

Matte Black Rim

705401552

$146.24

22

Wheel Cap

705401318

$20.12

23

Fill Level Plug | 4X4

705500504

$8.73

24

Copper Washer | 4X4

705500506

$0.42

25

Protector

705501123

$5.90

27

Final Drive Unit

705502546

$1,064.15

28

Final Drive Unit

705502546

$1,064.15

29

O-Ring

705501554

$3.94

30

Oil Seal

705501556

$16.39

31

Bolt

705501562

$5.00

32

Breather Tube

705501584

$13.45

33

Plug Drain

705501724

$5.94

35

LH Rear Knuckle

705501730

$172.36

35

RH Rear Knuckle

705501731

$182.06

36

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

37

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

38

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

39

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

40

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

41

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

42

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

43

Oil Seal

705501749

$7.94

45

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

46

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

48

Wheel Hub

705501900

$123.10

49

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

50

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

51

Oil Seal

705502276

$13.93

52

Half Shaft | Includes 230 to 230e

705502356

$226.84

53

Dart Tie Rap 200MM

710003168

$6.57

55

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$284.30

56

Rubber Boot

715900118

$13.28

57

Grease Fitting

715900184

$4.09

58

Universal Joint Ass'y | T3

703500846

$55.19

59

Joint

715900271

$23.10

60

Joint

715900272

$23.10

61

Oetiker Gear Clamp 36.1MM

509000045

$4.07

62

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

63

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

64

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

65

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

66

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

67

Polyurethane Hose 10000Mm Long

219704410

$52.96

68

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

73

CV_JOINT EXT - Call your local BRP dealership

705501863

Unavailable

74

Plunging Joint

705501865

$240.27

74b

Circlip

705501781

$5.10

75

Oetiker Clamp, 82.1 mm

715900241

$9.00

76

Oetiker Clamp, 27.3 mm

715900242

$9.00

77

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

78

Hex. Flange Screw M12 X 190

230629087

Unavailable

79

Elastic Flange Nut M12

233221416

$2.67

100

Boot Kit

705501864

$39.52
