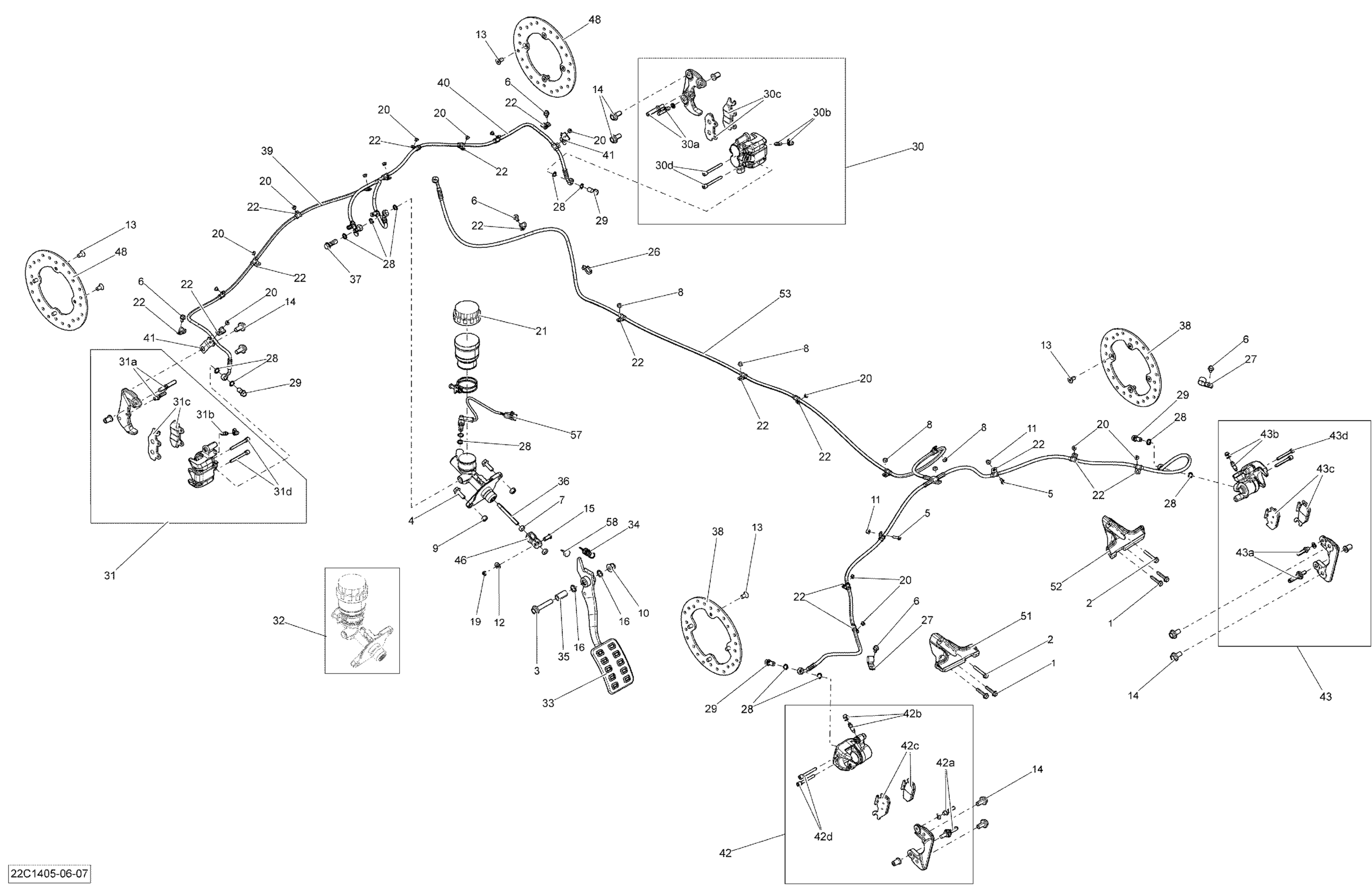

Can-Am Maverick 1000_XMR, 2014 Brakes _22C1406 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

2

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

3

Hex. Flange Screw M10 X 55

207605544

$2.78

4

Hex. Flange Screw M8 X 25

207682544

$0.90

5

Hex. Forming Screw M5 X 16

210251650

$0.92

6

Hex. Flange Screw M6 X 10

210261040

$1.25

7

Hex. Nut M8

232081414

$0.60

8

Elastic Stop Nut M6

232561414

$1.55

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Hex. Flange Elastic Nut M5

233251414

$1.66

12

Flat Washer M8

234081430

$1.74

13

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

14

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

15

Pin | Not Shown

250400058

$7.12

16

O-Ring

293300144

$3.98

19

Cotter Pin

371800700

$0.98

20

Pop Rivet 3/16"

390402200

$0.26

21

Diaphragm Cap Kit

715500332

$27.66

22

Clamp

293650256

$4.36

26

Tie-Rap 180 mm

414115200

$0.09

27

Open Clamp

518321570

$6.03

28

Copper Washer

705601628

$4.34

29

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

30

RH Caliper Ass'y | Includes 71 to 71d

705601129

$286.89

30a

Spring And Bolt Kit

715500385

$23.05

30b

Bleeding Screw

705600080

$15.22

30c

RH Brake Pad Kit

705601150

$49.39

30d

Hanger Pin Kit

705601151

$17.66

31

LH Caliper Ass'y | Includes 57 to 57d

705601128

$286.89

31a

Spring And Bolt Kit

715500385

$23.05

31b

Bleeding Screw

705600080

$15.22

31c

LH Brake Pad Kit

705601149

$49.39

31d

Hanger Pin Kit

705601151

$17.66

32

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

33

Brake Pedal

705600724

$55.35

34

Brake Pedal Spring

705600792

$9.22

35

Inner Spacer

705600815

$10.98

36

Master Cylinder Rod

705600833

$18.43

37

Banjo Bolt

705600958

$7.60

38

Disc Brake

705600999

$85.49

39

LH Front Flexible Hose Ass'y

705601192

$83.05

40

RH Front Flexible Hose Ass'y

705601193

$83.05

41

Bracket

705601337

$2.69

42

LH Caliper Ass'y | Includes 70 to 70d

705601089

$208.99

42a

Spring, Protector And Bolt Kit

715500384

$23.05

42b

Bleeding Screw

705600080

$15.22

42c

LH Brake Pad Kit

705600398

$49.39

42d

Pin Set (2)

705600081

$19.20

43

RH Caliper Ass'y | Includes 80 to 80d

705601090

$208.99

43a

Spring, Protector And Bolt Kit

715500384

$23.05

43b

Bleeding Screw

705600080

$15.22

43c

RH Brake Pad Kit

705601147

$49.39

43d

Pin Set (2)

705600081

$19.20

46

Yoke | Not Shown

705601142

$14.75

48

Disc Brake

705601178

$103.82

51

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

52

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

53

Rear Flexible Hose

705601218

$156.89

57

Brake Switch

705601250

$59.97

58

Rubber Stopper

708000759

$3.61
