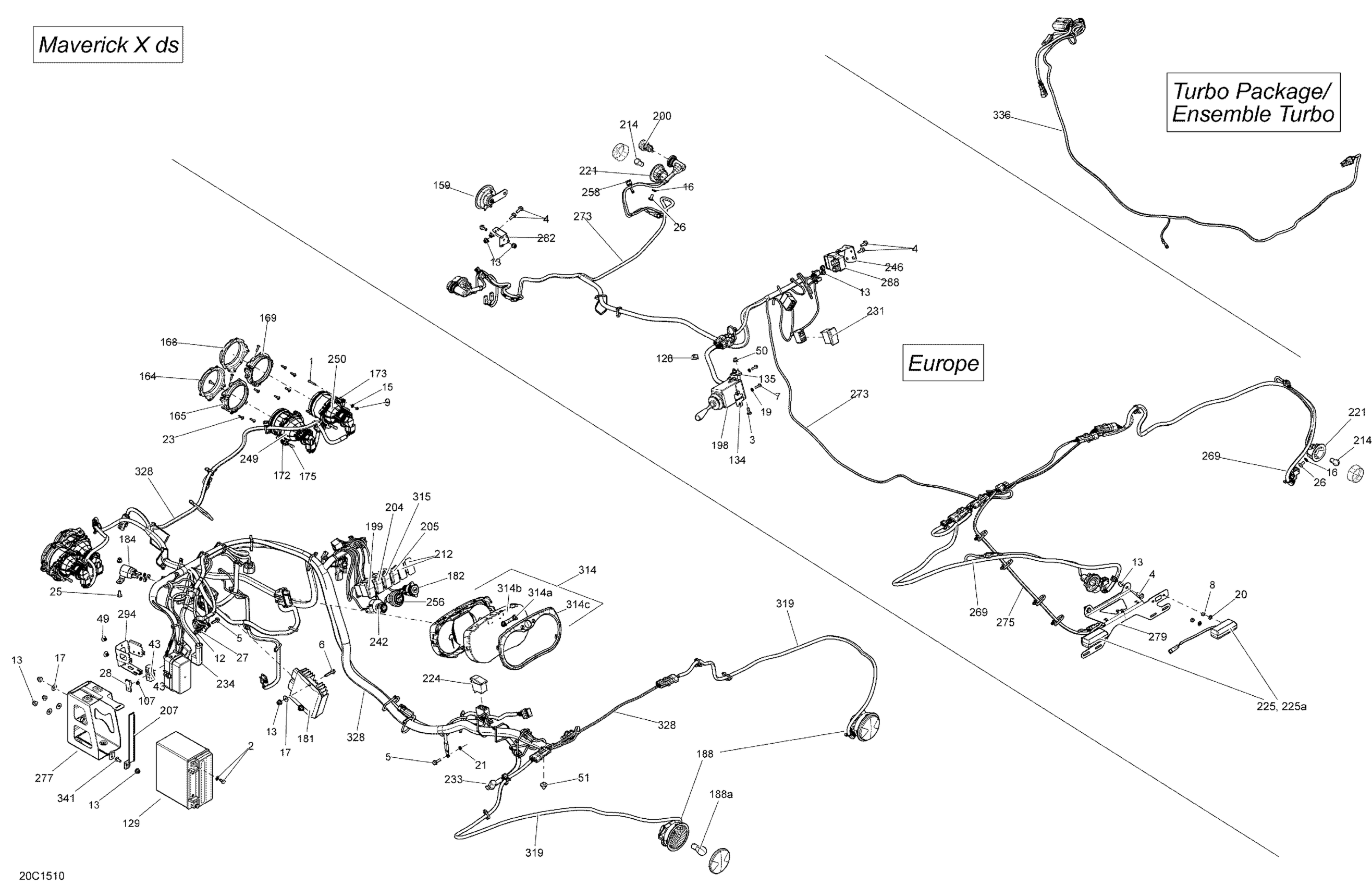

Can-Am Maverick 1000_XDS-DPS, 2015 Electrical System _20C1510 Diagram

Hex. Screw M4 X 25

207142544

$1.63

Battery Bolt Kit

250000282

$2.95

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Forming Screw M5 X 16

210251650

$0.92

Hex. Nut M6

232061600

$0.91

Elastic Stop Nut M4

232541414

$0.48

Hex. Flange Nut M6

233061414

$1.34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer M5

234051410

$0.44

Flat Washer 6 mm

234061410

$1.04

Stainless Steel Flat Washer

234062670

$1.74

Lock Washer 5 mm | Europe

234151401

$0.46

Lock Washer Helical M6

234161601

$0.92

External Serrated Lock Washer 6 mm

234461608

$0.92

Phillips Screw K40 X 16

250000723

$0.81

Torx Head Screw M6 X 16

250000717

$1.74

Torx Truss M6X14

250000789

$4.41

External Serrated Lock Washer 6 mm

234461608

$0.92

Clip

270000141

$8.33

Diagnostic Connector

278002704

$15.57

Pop Rivet 3/16"

293150103

$0.54

Threaded Insert M6 X 1.0

250100242

Unavailable

Mount Dart

293730040

$0.86

Pop Rivet 3/16"

390402400

$0.25

Clip

414227300

$1.45

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Flasher Decal | Europe

704902614

$16.89

Flasher Arm Support | Europe

709400810

$27.66

Horn

710004791

$37.66

RH Low Front Housing

710001081

$16.89

LH Low Front Housing

710001083

$16.89

RH Low Rear Housing

710001082

$10.98

LH Low Rear Housing

710001084

$10.98

RH High Front Housing

710001085

$16.89

LH High Front Housing

710001087

$16.89

RH High Rear Housing

710001086

$10.98

LH High Rear Housing

710001088

$10.98

LH Low Light Support

710001037

$9.22

RH Low Light Support

710001094

$9.22

LH High Light Support

710001036

$5.52

RH High Light Support

710001115

$5.52

Setting Screw

710001147

$12.91

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

DC Outlet

710001248

$31.17

Starter Relay

710007777

$46.89

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Turn Signal | Europe

710001721

$198.43

Hi/Low Switch | Except Europe

710001725

$23.74

Day Light | Europe

710001726

$36.89

4X4 Switch

710001737

$32.28

Switch DPS

710001781

$23.74

Battery Holder

710001916

$19.20

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Not Available As Spare Part - Friction Washer

Unavailable

Flasher | Europe

710002047

$32.28

Switch, Over ride

710002053

$19.27

License Light

710002055

$59.99

Bulb

219800128

$2.99

Switch Hazard | Europe

710002076

$18.43

Positive Cable

710004383

$41.51

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

Ignition Switch

710008400

$78.43

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Engine Start Button

710002594

$59.97

Tie-Rap Clip

710002896

$4.60

WIRING HARNESS REAR - Call your local BRP dealership | Europe

710003681

Unavailable

Harness Ass'y | Europe

710004346

$406.12

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

Battery Support

710003129

$46.12

LIGHT SUPPORT - Call your local BRP dealership

710004573

Unavailable

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

Flasher Unit

710003239

$78.43

Fuse Holder

710003335

$9.29

Multifunction Speedometer | XRS, XRS DPS

710004547

$415.35

Speedometer Button | XTP

415129355

$13.94

Lens | XTP

415129349

$23.05

Gauge Ring

415129348

$11.71

Switch PPS Sport

710003541

$18.43

Rear Harness

710003680

$27.66

WIRING HARNESS ASSY - Call your local BRP dealership | Includes 1 to SWWRC

710004699

Unavailable

WIRING HARNESS ASSY - Call your local BRP dealership

710004349

Unavailable
