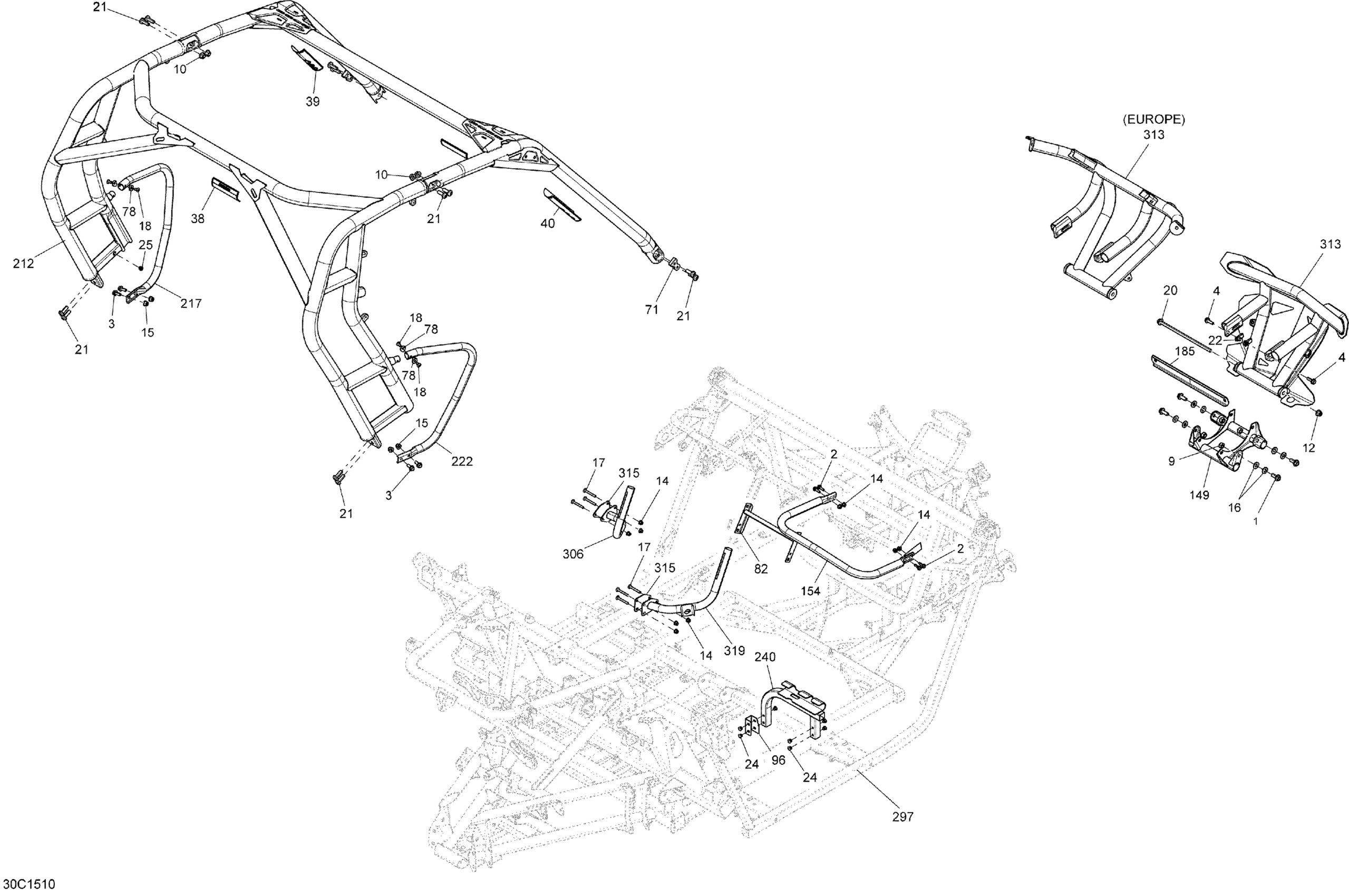

Can-Am Maverick 1000_XDS-DPS, 2015 Frame _30C1510 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

$1.74

2

Hex. Flange Screw M6 X 20

207662046

$1.74

3

Hex. Flange Screw M8 X 20

207682044

$0.92

4

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

9

Elastic Stop Nut M10

232500416

$1.56

10

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$1.74

12

Hex. Flange Elastic Nut M10

233201436

$1.74

14

Elastic Flange Nut M6 X 1.0

233261416

$1.74

15

Hex. Flange Elastic Nut M8

233281414

$1.14

16

Conical Spring Washer 10 mm

234201474

$1.39

17

Torx Screw M6 X 50

250000317

$2.06

18

Torx Truss M6X14

250000789

$4.41

20

Hex. Flange Screw

250000597

$10.30

21

Screw Pan M10 X 30

250000848

$1.56

22

Panel Nut M8 X 1.25

250100118

$1.63

24

Hemlock Rivet, 6.5 mm

293150096

$3.17

25

Threaded Insert M6 X 1.0

250100242

Unavailable

38

Warning Label

704903492

Unavailable

39

Warning Label

704903679

Unavailable

40

Warning Label

704903680

Unavailable

71

Binding Block

705203415

$16.89

78

Offset Washer

705202223

$4.98

82

Reinforcement Panel

705203330

$147.66

96

Seat Support

705202602

$3.98

149

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

154

Black Handle

705203332

$129.20

185

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.74

212

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

212

Green Cage Kit | Manta Green Safety Cage

715003907

$1,039.99

217

TUBE LH B-357 PAINTED - Call your local BRP dealership

705204407

$40.74

222

TUBE RH B-357 PAINTED - Call your local BRP dealership

705204408

Unavailable

240

Not Available As Spare Part - Friction Washer

Unavailable

297

FRAME KIT - Call your local BRP dealership

715003947

Unavailable

306

Black Console Handle | MAVERICK Turbo

705204253

Unavailable

313

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

313

FRONT BUMPER ASS'Y - Call your local BRP dealership | Model-North America, International

705204266

Unavailable

315

Steel Plate

705204606

$9.11

319

Black Console Handle

705204399

$133.82
