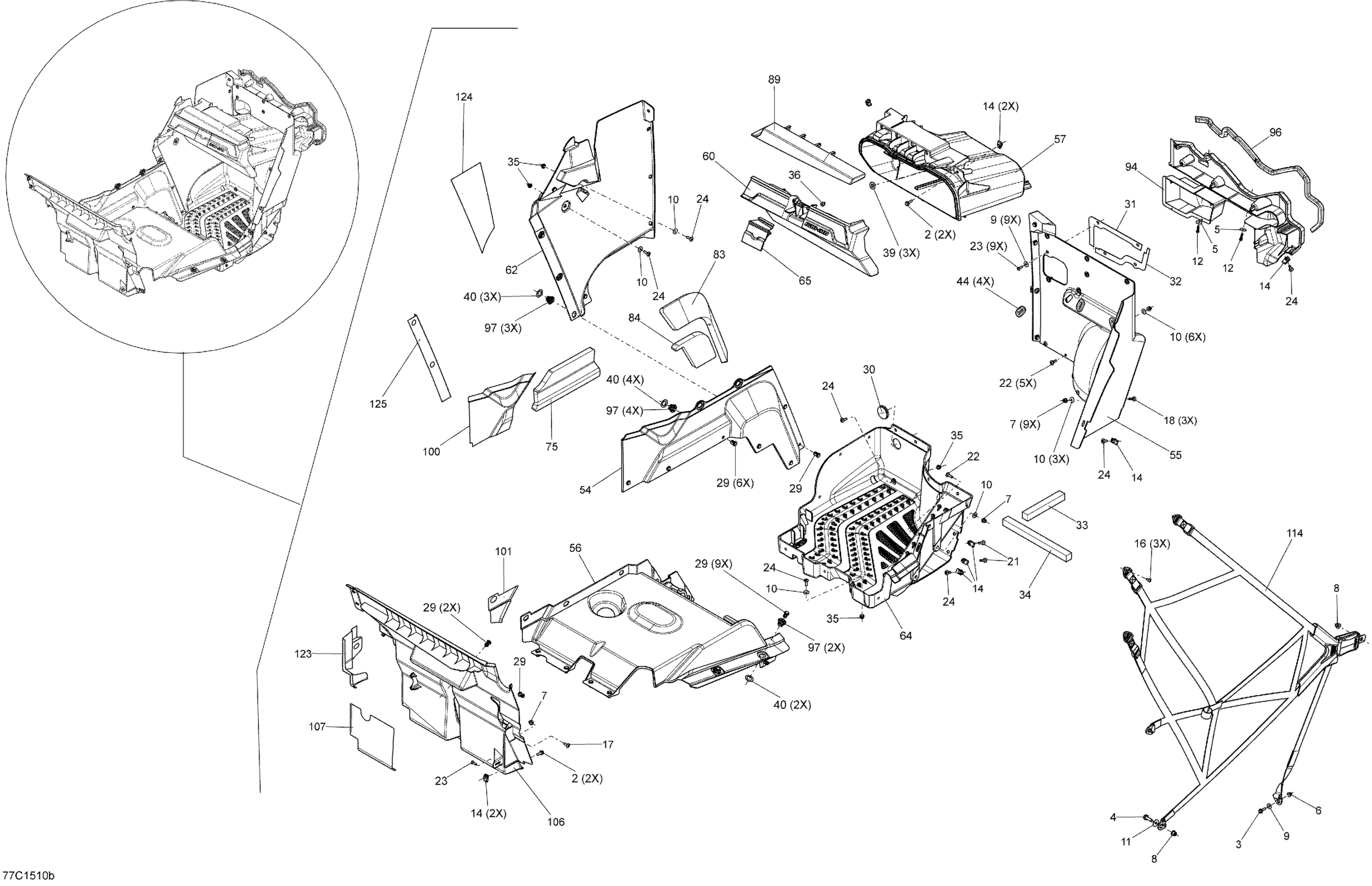

Can-Am Maverick 1000_XDS-DPS, 2015 Cab Interior _Passenger Side_77C1510b Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M8 X 25

207682534

$0.90

5

Flat Washer

224060201

$1.15

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Hex. Flange Elastic Nut M6

233261494

$1.26

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Flat Washer 6 mm

234062410

$0.64

10

Stainless Steel Flat Washer

234062670

$1.74

11

Flat Washer 8 mm

234082410

$1.11

12

Hex. Flange Screw K50 X 20

241152060

$1.57

14

Panel Nut M6 X 1.0

250100198

$1.73

17

Torx Screw M6 X 16

250000755

$0.72

18

Torx Screw M6 x 25

250000284

$1.74

21

Torx Truss Screw M6 X 25

250000807

$1.74

22

Torx Screw M6 X 20

250000712

$1.74

23

Torx Screw K50 X 16

250000720

$1.39

24

Torx Screw M6 X 20

250000722

$1.34

29

Tuflok Plastic Rivet

293150230

$1.21

30

Rubber Cover

293250242

$5.38

31

Upper Seal

293250252

$2.75

32

Bottom Seal

293250253

$2.99

33

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

34

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

35

Threaded Insert M6 X 1.0

250100242

Unavailable

36

Rubber Bumper

293830005

$5.33

39

CAP - Call your local BRP dealership

414859400

Unavailable

40

Washer

503189273

$3.20

44

Oblong Grommet

705003668

$4.54

54

RH Side Console

707900002

$36.89

55

RH Front Floor

707900004

$78.43

56

RH Under Seat Plate

707900006

$106.12

57

Storage Bin

707900009

$110.74

60

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

62

RH Fixe Side Console

707900021

$73.82

64

RH Lower Floor

707900023

$184.58

65

Latch

707900031

$8.29

75

RH Lateral Console Foam

707900622

$15.35

83

RH Lateral Console Foam

707900623

$15.35

84

RH Lateral Console Foam

707900624

$15.35

89

Trim Glove Box

707900062

$17.66

94

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

96

Was 293200017 Neoprene Seal

219704365

$118.27

97

Insert

707900133

$2.75

100

Heat Sheet

707900147

$8.98

101

Heat Sheet

707900148

$7.37

106

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

107

Heat Shield

707900167

$8.45

114

Front RH Safety Net

707900238

$124.58

123

Heat Shield

707900184

$5.52

124

Heat Sheet

707900190

$8.45

125

Heat Sheet

707900191

$1.37
