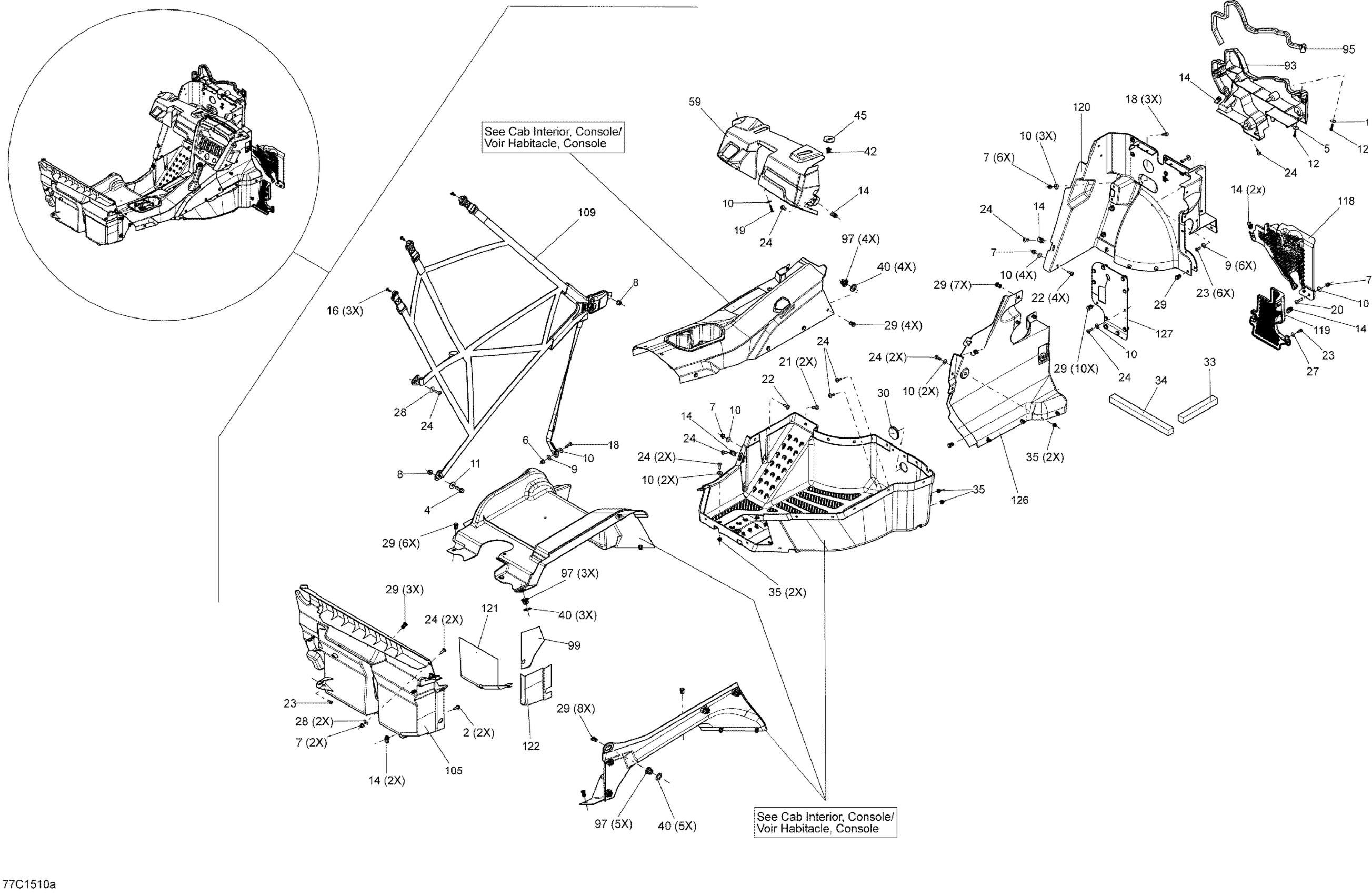

Can-Am Maverick 1000_XDS-DPS, 2015 Cab Interior _Driver Side_77C1510a Diagram

#

Description
Price

1

Flat Washer

224061201

$1.11

2

Hex. Flange Screw M6 X 20

207662034

$1.74

4

Hex. Flange Screw M8 X 25

207682534

$0.90

5

Flat Washer

224060201

$1.15

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Hex. Flange Elastic Nut M6

233261494

$1.26

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Flat Washer 6 mm

234062410

$0.64

10

Stainless Steel Flat Washer

234062670

$1.74

11

Flat Washer 8 mm

234082410

$1.11

12

Hex. Flange Screw K50 X 20

241152060

$1.57

12

Hex. Flange Screw K50 X 20

241152060

$1.57

14

Panel Nut M6 X 1.0

250100198

$1.73

16

Torx Screw M5 X 14

250000742

$1.20

18

Torx Screw M6 x 25

250000284

$1.74

19

Truss Head Torx Screw K50 X 20

250000297

$2.06

20

Torx Truss Screw M6 X 30

250000843

$1.74

21

Torx Truss Screw M6 X 25

250000807

$1.74

22

Torx Screw M6 X 20

250000712

$1.74

23

Torx Screw K50 X 16

250000720

$1.39

24

Torx Screw M6 X 20

250000722

$1.34

27

Washer M5

250200025

$0.61

28

Flat Washer

250200040

$1.82

29

Tuflok Plastic Rivet

293150230

$1.21

30

Rubber Cover

293250242

$5.38

33

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

34

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

35

Threaded Insert M6 X 1.0

250100242

Unavailable

40

Washer

503189273

$3.20

41

Washer

506151252

$3.11

42

Edge Clip

517302785

$0.70

45

Support Plate

705003841

$0.91

54

RH Side Console

707900002

$36.89

59

Dashboard Ass'y

715001250

$78.43

62

RH Fixe Side Console

707900021

$73.82

75

RH Lateral Console Foam

707900622

$15.35

83

RH Lateral Console Foam

707900623

$15.35

84

RH Lateral Console Foam

707900624

$15.35

93

Floor Support LH

707900561

$23.05

95

Was 293200017 Neoprene Seal

219704365

$118.27

97

Insert

707900133

$2.75

99

Heat Sheet

707900146

$11.06

100

Heat Sheet

707900147

$8.98

101

Heat Sheet

707900148

$7.37

105

LH Rear Deflector

707900164

$92.28

107

Heat Shield

707900167

$8.45

109

Front LH Safety Net

707900237

$124.58

118

Grille

707900178

$9.18

119

Grille

707900180

$9.18

120

LH Front Floor

707900181

$78.43

121

Heat Shield

707900182

$8.98

122

Heat Shield

707900183

$5.52

123

Heat Shield

707900184

$5.52

124

Heat Sheet

707900190

$8.45

126

Front Side Dash Panel

707900193

$69.20

127

Deflector | XRS-DPS

707900204

Unavailable

127

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable
