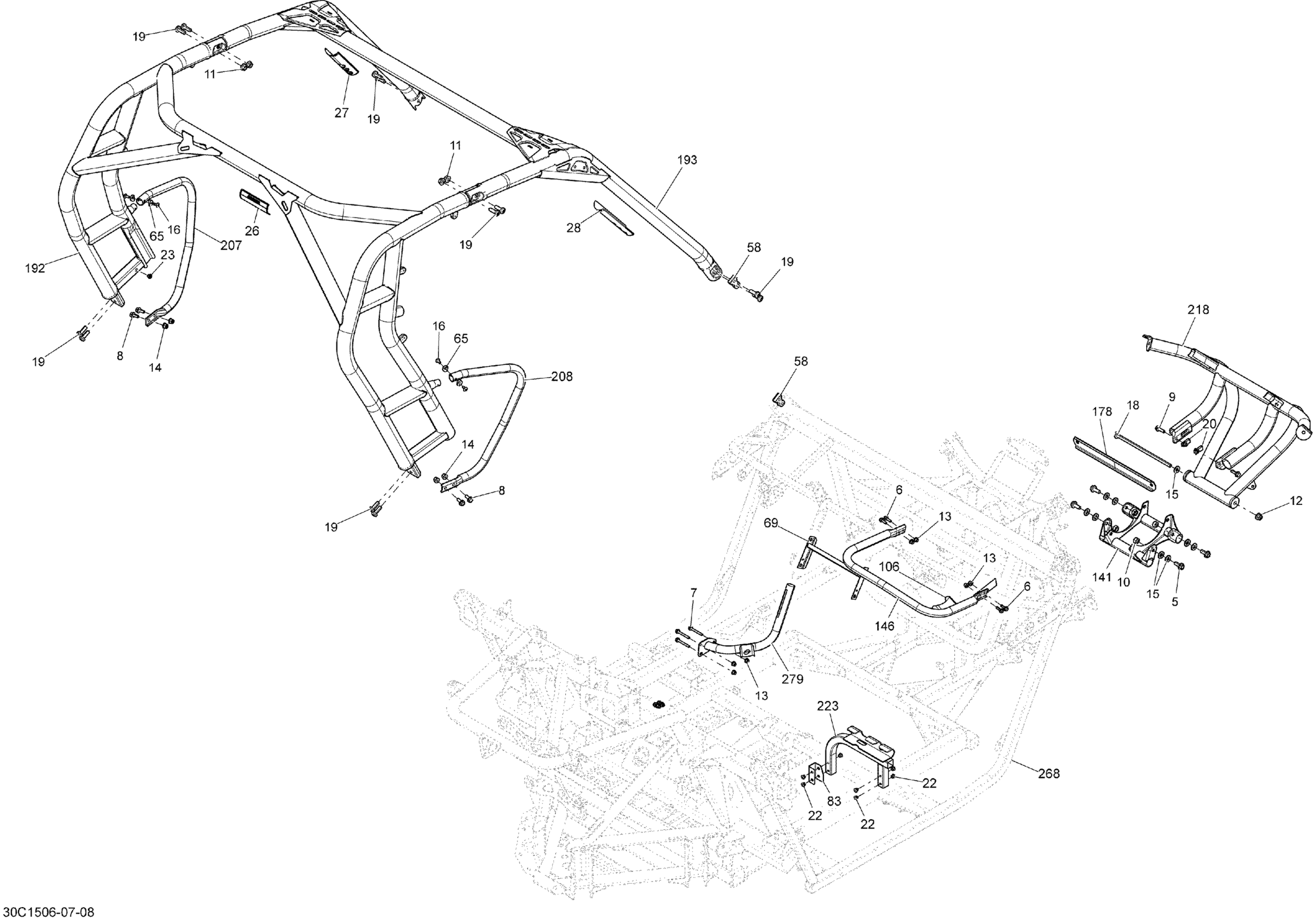

Can-Am Maverick 1000_STD_XRS_XRS-DPS, 2015 Frame _30C1506 Diagram

#

Description
Price

5

Hex. Flange Screw M10 X 25

207602546

$2.00

6

Hex. Flange Screw M6 X 20

207662046

$2.00

7

Hex. Flange Screw M6 X 50

207665044

$3.88

8

Hex. Flange Screw M8 X 20

207682044

$1.06

9

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

10

Elastic Stop Nut M10

232500416

$1.79

11

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.00

12

Hex. Flange Elastic Nut M10

233201436

$2.00

13

Elastic Flange Nut M6 X 1.0

233261416

$2.00

14

Hex. Flange Elastic Nut M8

233281414

$1.31

15

Conical Spring Washer 10 mm

234201474

$1.60

16

Torx Truss M6X14

250000789

$5.06

18

Hex. Flange Screw

250000597

$11.82

19

Screw Pan M10 X 30

250000848

$1.79

20

Panel Nut M8 X 1.25

250100118

$1.87

22

Hemlock Rivet, 6.5 mm

293150096

$3.07

23

Threaded Insert M6 X 1.0

250100242

Unavailable

26

Warning Label

704903492

Unavailable

27

Warning Label

704903679

Unavailable

28

Warning Label

704903680

Unavailable

58

Binding Block

705203415

$16.39

65

Offset Washer

705202223

$4.09

69

Reinforcement Panel

705203330

$138.03

83

Seat Support

705202602

$3.81

141

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

146

Black Handle

705203332

$122.36

178

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.12

192

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

192

Red Cage Kit

715003905

$1,039.99

207

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

207

Red LH Front Side Protector Tube | MAVERICK with Red Cage

705204409

$43.25

208

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$39.52

208

Red RH Front Side Protector Tube | MAVERICK with Red Cage

705204410

$43.25

218

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

223

Not Available As Spare Part - Friction Washer

Unavailable

268

Frame Kit

715004817

$2,319.99

279

Black Console Handle

705204399

$125.34
