Partiron

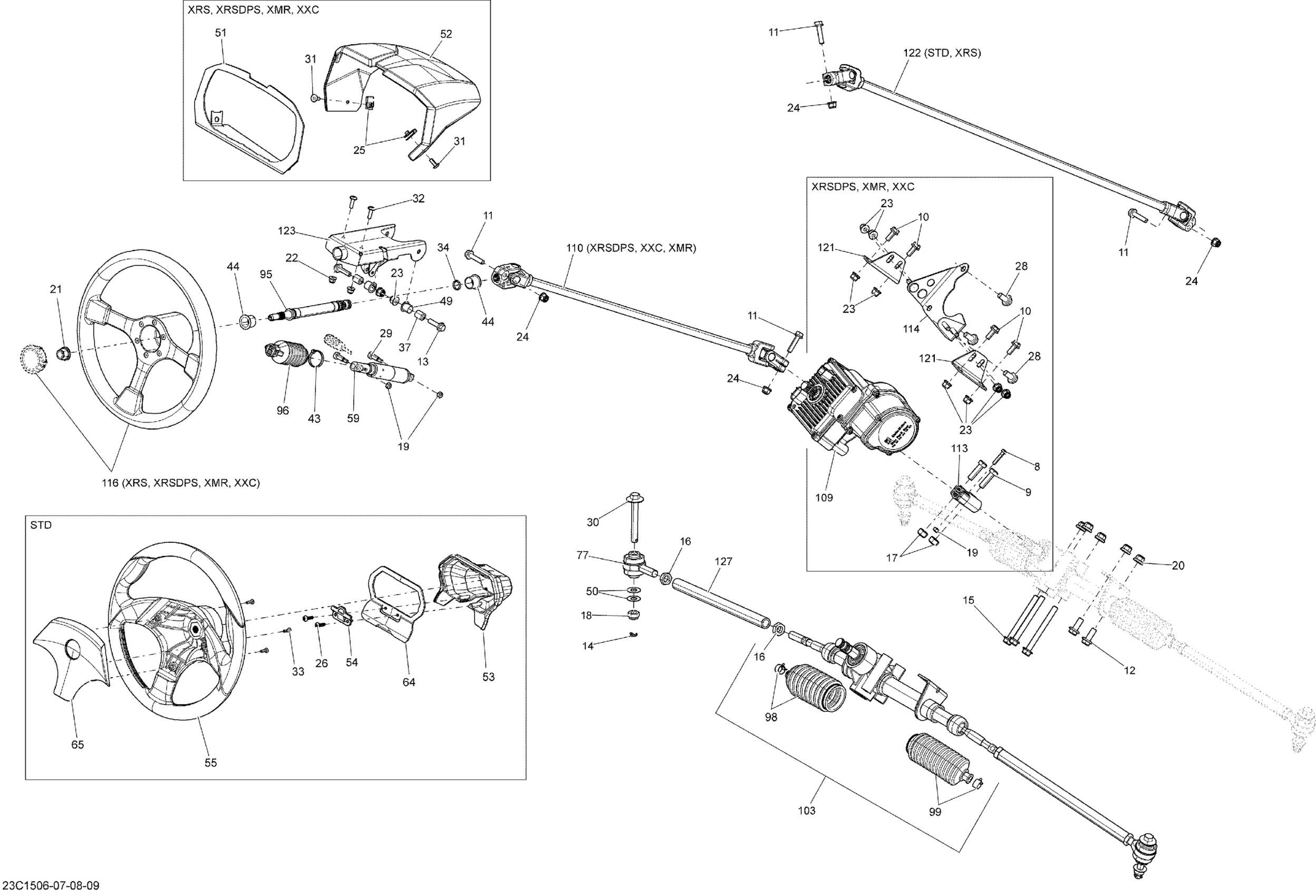

Can-Am Maverick 1000_STD_XRS_XRS-DPS, 2015 Steering _23C1506 Diagram

#

Description
Price

8

Hex. Screw M6 X 30

207063044

$1.12

9

Hex. Screw M10 X 35

207103586

$0.96

10

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

11

Hex. Flange Screw M8 X 35

250000986

$2.00

12

Hex. Flange Screw M10 X 25

207602546

$2.00

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

14

Cotter Pin

211400017

$0.28

15

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

16

Steering Rod Nut

715900238

$1.76

16

Steering Rod Nut

715900238

$1.76

17

Elastic Stop Nut M10

232500416

$1.79

18

Elastic Stop Nut M12

232521416

$1.61

19

Elastic Stop Nut M6

232561434

$1.78

20

Hex. Flange Elastic Nut M10

233201436

$2.00

21

Hex. Flange Elastic Nut M12

233221414

$5.85

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Hex. Elastic Flange Nut M8

233281416

$1.43

25

Panel Nut M6 X 1.0

250100198

$1.99

26

Truss Head Torx Screw K50 X 20

250000297

$2.00

28

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.67

30

Hexagonal Screw M12 X 88

250000657

$5.96

31

Torx Truss Screw M6 X 16

250000721

$1.60

32

Torx Screw M6 X 20

250000722

$1.54

33

Phillips Screw K40 X 16

250000723

$0.93

34

O-Ring

293300144

$3.79

35

Socket Head Screw M8 X 16

250000669

$3.00

37

Bushing

293900106

$4.28

43

Tie-Rap 180 mm

414115200

$0.10

44

Steering Bushing

709402725

$3.07

49

Bushing

705600799

$3.72

50

Hardened Washer

706200281

$2.69

51

Cluster Support | X, XT

707900013

$14.76

52

Upper Cluster Cover | X, XT

707900124

$14.76

53

Speedometer Cover

709400514

$14.90

54

Latch Indicator Cover

709400573

$9.90

55

Steering Wheel | STD

709400650

$126.84

59

Adjustment Cylinder

709402506

$64.90

64

Cluster Support | STD

709400760

$19.37

65

Steering Center | STD

709400780

$10.82

77

Ball Joint

709401125

$49.22

95

Steering Shaft

709401167

$44.00

96

Boot Tube Side

709401232

$15.64

98

Boot Kit, Pinion Side

715900235

$50.72

98

Boot Kit, Pinion Side

715900235

$50.72

99

Boot Kit, Tube Side

715900236

$50.72

99

Boot Kit, Tube Side

715900236

$50.72

103

Rack And Pinion Steering | STD, XRS

709401325

$354.45

103

Rack And Pinion Steering | XRS-DPS

709401236

$354.45

109

Power Steering

709401406

$1,558.49

110

STEERING SHAFT ASS'Y - Call your local BRP dealership | XRS-DPS

709401293

Unavailable

113

COUPLING - Call your local BRP dealership

709401294

Unavailable

114

SUPPORT - Call your local BRP dealership

709401296

Unavailable

116

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

121

SUPPORT - Call your local BRP dealership

709401339

Unavailable

122

Steering Shaft Ass'y

709401388

$177.58

123

Painted Steering Wheel Support

709401391

$76.84

127

Tie Rod

709401427

$30.57
