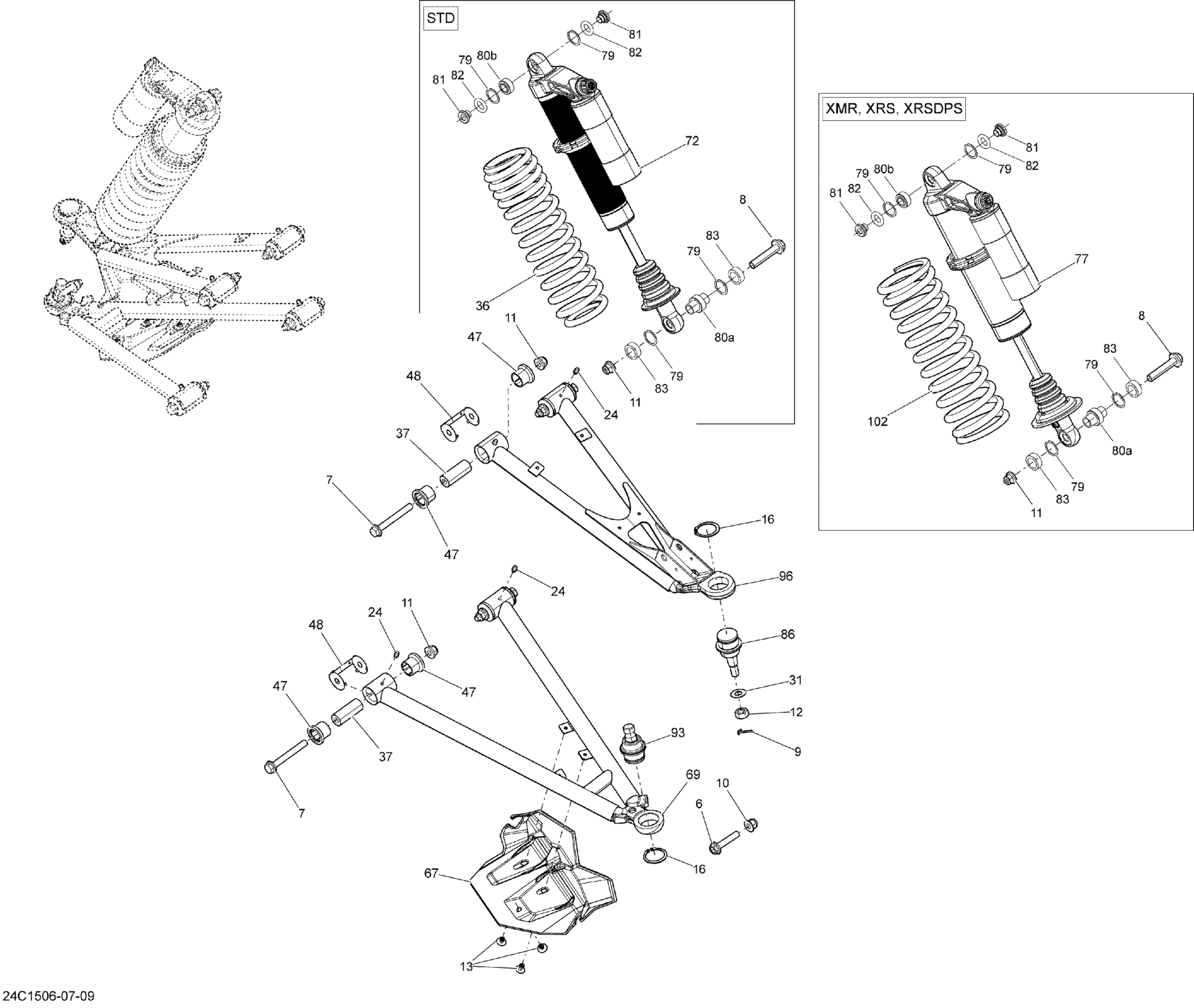

Can-Am Maverick 1000_STD_XRS_XRS-DPS, 2015 Front Suspension _24C1506 Diagram

#

Description
Price

6

Hex. Flange Screw M10 X 50

207605044

$5.04

7

Hex Flange Screw M10 X 80

207608046

$5.12

8

Hex. Flange Screw M12 X 60

207626046

$6.99

9

Cotter Pin

211400017

$0.28

10

Hex. Flange Elastic Nut M10

233201414

$1.45

11

Hex. Flange Elastic Nut M10

233201436

$2.00

12

Nut M12

250100099

$1.88

13

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

16

Circlip

293370035

$2.48

24

Grease Fitting

408200700

$3.21

31

Hardened Washer

706200281

$2.69

35

Not Available As Spare Parts

XXX

Unavailable

36

YELLOW FRONT SPRING - Call your local BRP dealership | STD

706201580

Unavailable

37

Sleeve

706201590

$9.76

47

Suspension Arm Bushing

706204409

$8.40

48

Wear Plate

706201660

$0.85

50

Not Available As Spare Parts

XXX

Unavailable

67

RH Joint Protector

706202809

$8.42

67

LH Joint Protector

706202808

$8.42

69

RH Front Lower Arm

706201862

$187.28

69

LH Front Lower Arm

706201861

$187.28

72

FRONT SHOCK - Call your local BRP dealership | Package-STD

706202247

Unavailable

77

FRONT SHOCK - Call your local BRP dealership | Package-XRSDPS Red

706202248

Unavailable

77

FRONT SHOCK - Call your local BRP dealership | Package-XRSDPS Red

706202248

Unavailable

77

FRONT SHOCK - Call your local BRP dealership | Package-XRSDPS Red

706202248

Unavailable

77

FRONT SHOCK - Call your local BRP dealership | Package-XRSDPS Red

706202248

Unavailable

79

Retaining Ring

715900252

$10.24

80a

Spherical Bearing

715900330

$79.07

80b

Spherical Bearing

715900266

$73.85

81

Internal Bushing

715900267

$24.60

82

O-Ring Bushing

715900268

$12.49

83

Protector

715900331

$12.49

86

Ball Joint

706202044

$34.30

93

Ball Joint

706202045

$34.30

96

Black Front Upper Arm | Model-STD

706202086

$187.28

96

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XRS Black, XRP-DPS Black

706202090

Unavailable

96

YELLOW FRONT UPPER ARM - Call your local BRP dealership | Model-XRS Black, XRP-DPS Black

706202090

Unavailable

96

RED FRONT UPPER ARM - Call your local BRP dealership | Model-XRS White, XRS-DPS White

706202091

Unavailable

96

RED FRONT UPPER ARM - Call your local BRP dealership | Model-XRS White, XRS-DPS White

706202091

Unavailable

102

RED FRONT SPRING - Call your local BRP dealership | Package-XRSDPS Red

706202255

Unavailable

102

RED FRONT SPRING - Call your local BRP dealership | Package-XRSDPS Red

706202255

Unavailable

102

YELLOW FRONT SPRING - Call your local BRP dealership | Package-XRS Black

706202142

Unavailable

102

YELLOW FRONT SPRING - Call your local BRP dealership | Package-XRS Black

706202142

Unavailable
