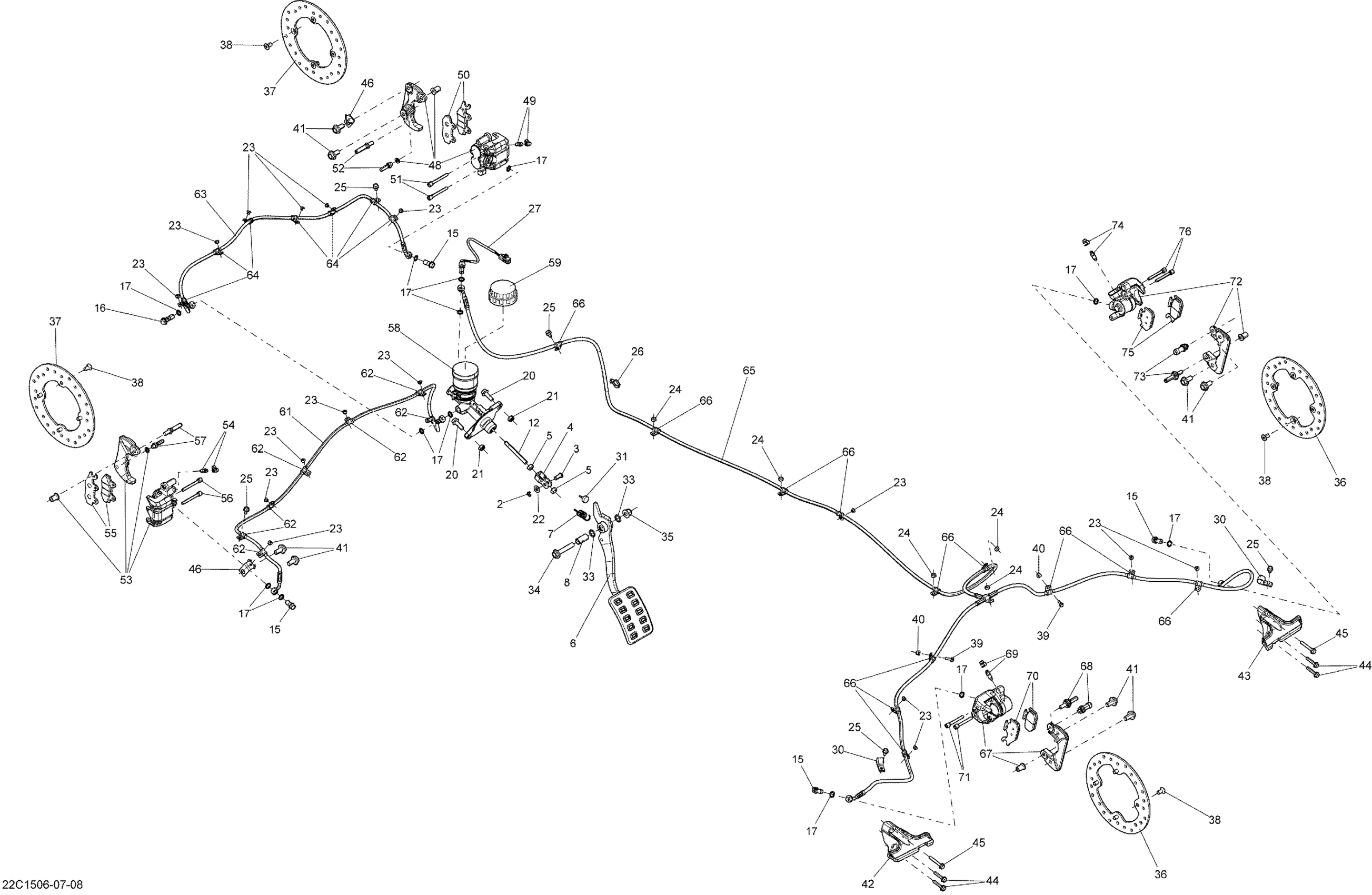

Can-Am Maverick 1000_STD_XRS_XRS-DPS, 2015 Brakes _22C1506 Diagram

#

Description
Price

2

Cotter Pin

371800700

$0.98

3

Pin | Not Shown

250400058

$7.12

4

Yoke | Not Shown

705601142

$14.75

5

Hex. Nut M8

232081414

$0.60

6

Brake Pedal

705600724

$55.35

7

Brake Pedal Spring

705600792

$9.22

8

Inner Spacer

705600815

$10.98

12

Master Cylinder Rod

705600833

$18.43

15

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

16

Banjo Bolt

705600958

$7.60

17

Copper Washer

705601628

$4.34

20

Hex. Flange Screw M8 X 25

207682534

$0.90

21

Hex. Elastic Stop Nut M8

232581414

$0.47

22

Flat Washer M8

234081430

$1.74

23

Pop Rivet 3/16"

390402200

$0.26

24

Elastic Stop Nut M6

232561434

$1.55

25

Hex. Flange Screw M6 X 10

210261040

$1.25

26

Tie-Rap 180 mm

414115200

$0.09

27

Brake Switch

705601250

$59.97

30

Open Clamp

518321570

$6.03

31

Rubber Stopper

708000759

$3.61

33

O-Ring

293300144

$3.98

34

Hex. Flange Screw M10 X 55

207605544

$2.78

35

Hex. Flange Elastic Nut M10

233201414

$1.26

36

Disc Brake

705600999

$85.49

37

Disc Brake

705601178

$103.82

38

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

39

Hex. Forming Screw M5 X 16

210251650

$0.92

40

Flange Elastic Nut M5

233251434

$1.66

41

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

42

LH DEFLECTOR - Call your local BRP dealership

705601403

Unavailable

43

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

44

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

45

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

46

Bracket

705601337

$2.69

48

RH Caliper | Includes 1 to 5

705600678

$219.97

49

Bleeding Screw

705600080

$15.22

50

RH Brake Pad Kit

715500336

$49.39

51

Sliding Pin Kit

715500337

$18.43

52

Spring Boot Bolt Kit

715500383

$17.66

53

LH Caliper | Includes 6 to 10

705600679

$218.49

54

Bleeding Screw

705600080

$15.22

55

LH Brake Pad Kit

715500335

Unavailable

56

Sliding Pin Kit

715500337

$18.43

57

Spring Boot Bolt Kit

715500383

$17.66

58

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

59

Diaphragm Cap Kit

715500332

$27.66

61

LH Front Flexible Hose | Includes 40 to 40a

705601079

$78.43

62

Clamp

293650256

$4.36

63

RH Front Flexible Hose | Includes 45 to 45a

705601080

$78.43

64

Clamp

293650256

$4.36

65

Rear Flexible Hose

705601218

$156.89

66

Clamp

293650256

$4.36

67

LH Caliper Ass'y | Includes 70 to 70d

705601089

$208.99

68

Spring, Protector And Bolt Kit

715500384

$23.05

69

Bleeding Screw

705600080

$15.22

70

LH Brake Pad Kit

705600398

$49.39

71

Pin Set (2)

705600081

$19.20

72

RH Caliper Ass'y | Includes 80 to 80d

705601090

$208.99

73

Spring, Protector And Bolt Kit

715500384

$23.05

74

Bleeding Screw

705600080

$15.22

75

RH Brake Pad Kit

705601147

$49.39

76

Pin Set (2)

705600081

$19.20
