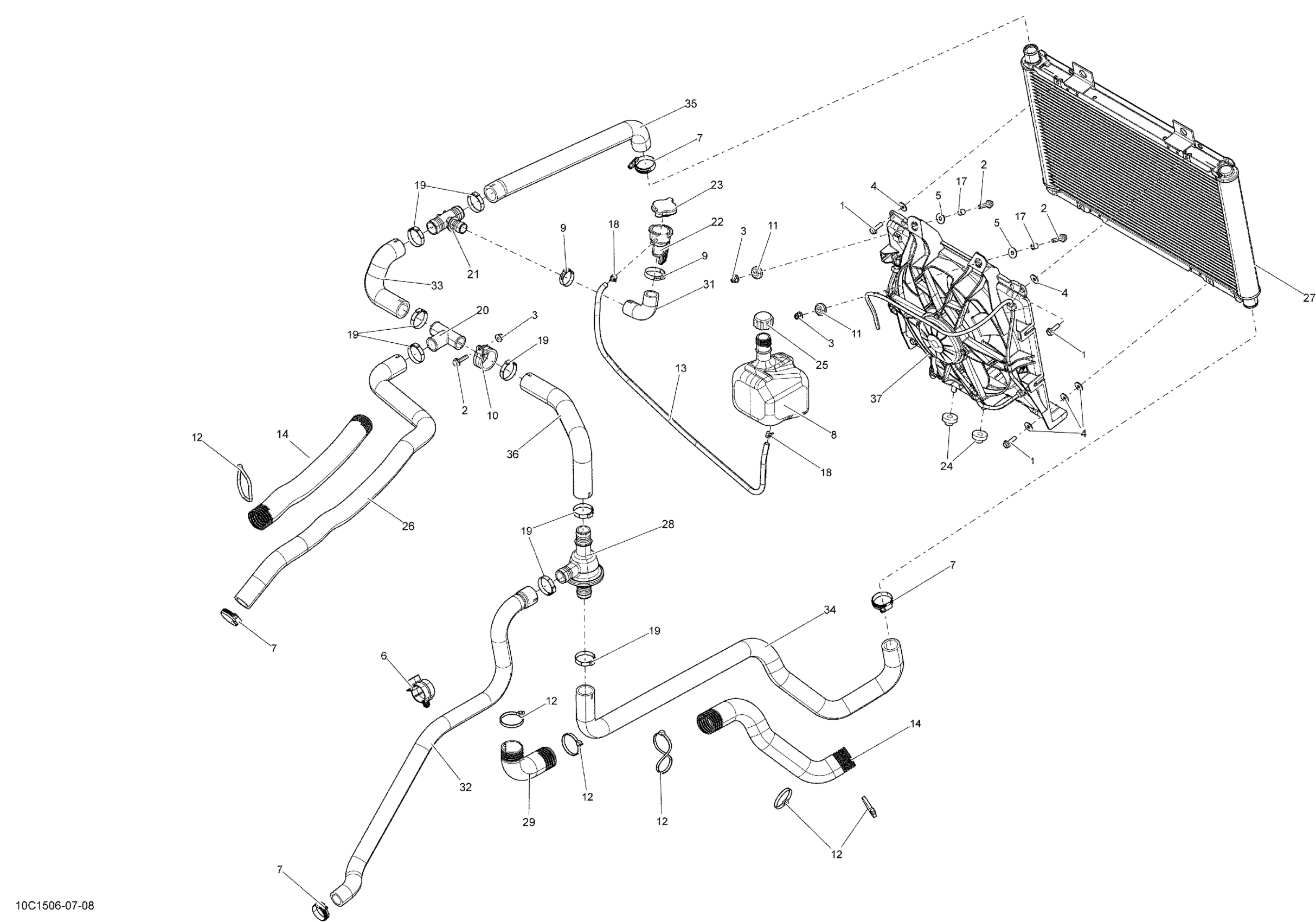

Can-Am Maverick 1000_STD_XRS_XRS-DPS, 2015 Cooling System _10C1506 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Screw M6 X 25

207662534

$2.00

3

Flange Elastic Nut M6

233261434

$4.15

4

Flat Washer 6 mm

234062410

$0.73

5

Flat Washer

250200082

$0.40

6

Retainer

275500590

$8.24

7

Norma Gear Clamp

293650098

$4.15

8

Coolant Tank Ass'y

709200624

$91.76

9

Crimp Clamp

293650099

$4.07

10

Hose Retainer

293650218

$7.72

11

Grommet

709000582

$4.25

12

Tie Wrap 368 mm

293750008

$0.97

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

14

Tubing 35 MM 1000MM Long

219704428

$9.84

17

Bushing

293900105

$6.07

18

Spring Clamp

414554800

$0.81

19

Gear Clamp

509000162

$4.90

20

T-Fitting

509000219

$14.90

21

T-Fitting

509000372

$9.03

22

Filler Neck

709200179

$17.13

23

Radiator Pressure Cap

709200207

$21.61

24

Grommet

709200285

$8.13

25

Tank Cap

709200587

$5.15

26

Intermediate Hose

709200382

$26.09

27

Radiator

709200395

$346.24

28

Thermostat

709200406

$88.78

29

Tubing 35 MM 1000MM Long

219704428

$9.84

31

Filler Neck Hose

709200439

$9.54

32

Pump Hose

709200441

$36.54

33

Hose

709200443

$13.39

34

Radiator Inlet Hose

709200444

$60.42

35

Outlet Hose

709200445

$22.36

36

Hose

709200447

$22.36

37

Fan Ass'y

709200564

$217.88
