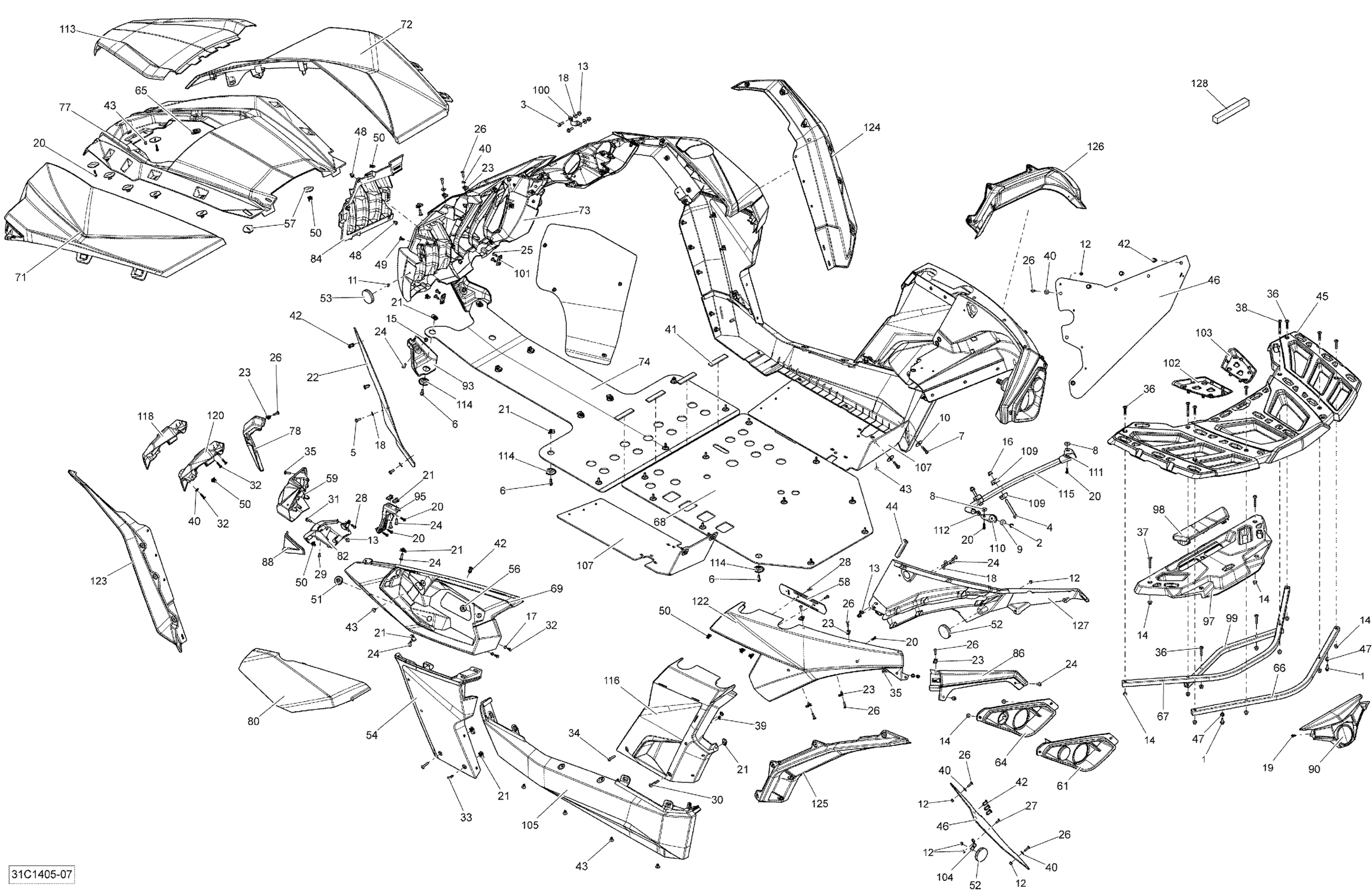

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 Body And Accessories Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

2

Hex. Flange Screw M6 X 25

207562544

$1.39

3

Hex. Flange Screw M6 X 20

207662084

$0.83

4

Hex. Flange Screw M8 X 70

207687044

$6.11

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Hexagonal Head Screw

210262050

$1.74

7

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

8

Flat Washer

224060201

$1.15

9

Flat Washer

224061201

$1.11

10

Flat Washer

224081301

$0.86

11

Hex. Flange Elastic Nut M5

233251414

$1.66

12

Elastic Flange Nut M5

233251494

$1.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Flange Elastic Nut M6

233261434

$3.61

15

Hex. Flange Elastic Nut M6

233261494

$1.26

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Flat Washer M5

234051410

$0.44

18

Stainless Steel Flat Washer

234062670

$1.74

19

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

20

Hex. Flange Screw K50 X 20

241152060

$1.57

21

Panel Nut M6 X 1.0

250100198

$1.73

22

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

23

Panel Nut M5 X 0.8

250000958

$3.48

24

Torx Screw M6 X 20

250000722

$1.34

25

Torx Truss Screw M6 X 16

250000721

$1.39

26

Torx Screw M5 X 20

250000724

$1.39

27

Torx Screw M5 X 14

250000742

$1.20

28

Torx Screw K50 X 16

250000720

$1.39

29

Self Tapping Screw #8 X 5/8

250000202

$1.25

30

Torx Screw M6 X 45

250000215

$1.56

31

Torx Screw M6 x 25

250000284

$1.74

32

Truss Head Torx Screw K50 X 20

250000297

$2.06

33

Torx Truss Screw M6 X 20

250000350

$4.39

34

Torx Truss Screw M6 X 30

250000843

$1.74

35

Torx Truss Screw M6 X 20

250000488

$1.74

36

Black, Torx Screw M6 X 35

250000646

$0.78

37

Torx Screw M6 X 45

250000647

$4.76

38

Torx Screw M6 X 60

250000648

$6.15

39

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

40

Washer M5

250200025

$0.61

41

Pad

291001932

$8.57

42

Tuflok Plastic Rivet

293150230

$1.21

43

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

44

Was 293200017 Neoprene Seal

219704365

$118.27

45

Rear Rack KIT

715002367

Unavailable

46

Deflector

705007828

$51.51

47

Threaded Insert M6 X 1.0

250100242

Unavailable

48

Rubber Bumper

293830005

$5.33

49

Black, Dart

414644300

$0.78

50

Edge Clip

517302785

$0.70

51

Grommet

517303756

$3.15

52

Red Reflector

705011221

$12.32

52

Red Reflector

705011221

$12.32

53

Amber Reflector | Except Europe Model

705011222

$12.32

54

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

54

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

54

White, LH Front Lateral Pannel | Model-White

705007358

$41.51

54

White, RH Front Lateral Pannel | Model-White

705007359

$41.51

54

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

54

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

54

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

54

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

54

PANEL BODY FL B-101 PAINTED - Call your local BRP dealership | Model-Red

705011640

Unavailable

56

Grommet

705003264

$3.43

57

Support Plate

705003841

$0.91

58

Support Plate

705004261

$12.17

59

LH Front Facia

705004508

$47.66

59

RH Front Facia

705004509

$47.66

61

LH Rear Facia | North America, International

705004731

$16.89

61

RH Rear Facia | North America, International

705004732

$16.89

64

LH Rear Facia | Europe

705004927

$14.71

64

RH Rear Facia | Europe

705004926

$14.71

65

Oval Washer

705005156

$4.85

66

Sectional Bent Tube

705016640

$35.35

67

Bent Sectional Tube

705016092

$39.20

68

Rear Skid Plate

705005480

$83.05

69

WHITE LH FRONT FENDER - Call your local BRP dealership | Model-STD White

705007978

Unavailable

69

White RH Front Fender | Model-STD White

705007979

$128.43

69

Black LH Front Fender

705006558

$128.43

69

Black RH Front Fender

705006559

$128.43

69

Black LH Front Fender

705006558

$128.43

69

Black RH Front Fender

705006559

$128.43

69

FENDER FL B-190 - Call your local BRP dealership

705005779

Unavailable

69

Yellow RH Front Fender

705005780

$128.43

69

FENDER FL B-101 PAINTED - Call your local BRP dealership | Model-Red

705011793

Unavailable

69

RED RH FRONT FENDER - Call your local BRP dealership | Model-Red

705007337

Unavailable

71

Yellow LH Fixe Hood

705005781

$514.58

71

White LH Fixe Hood | Model-White

705007348

$125.35

71

Yellow LH Fixe Hood

705005781

$514.58

71

Yellow LH Fixe Hood

705005781

$514.58

71

HOOD FIXED LH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011785

Unavailable

72

Yellow RH Fixe Hood

705005782

$514.58

72

White RH Fixe Hood | Model-White

705007349

$125.35

72

Yellow RH Fixe Hood

705005782

$514.58

72

Yellow RH Fixe Hood

705005782

$514.58

72

HOOD FIXED RH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011786

Unavailable

73

Front Radiator Grille

705005784

$59.97

74

Front Skid Plate

705005798

$92.28

77

Fixe Center Hood

705005821

$369.20

78

YELLOW LH BUMPER CAP - Call your local BRP dealership

705005824

Unavailable

78

YELLOW RH BUMPER CAP - Call your local BRP dealership

705005825

Unavailable

78

WHITE LH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007352

Unavailable

78

WHITE RH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007353

$84.58

78

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

705010791

Unavailable

78

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

705010792

Unavailable

78

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

705010791

Unavailable

78

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

705010792

Unavailable

78

YELLOW LH BUMPER CAP - Call your local BRP dealership

705005824

Unavailable

78

YELLOW RH BUMPER CAP - Call your local BRP dealership

705005825

Unavailable

80

White LH Cover Front Fender | Model-STD White

705007983

$23.05

80

White RH Cover Front Fender | Model-STD White

705007984

$23.05

80

Black LH Cover Front Fender

705006566

$23.05

80

Black RH Cover Front Fender

705006567

$23.05

80

Black LH Cover Front Fender

705006566

$23.05

80

Black RH Cover Front Fender

705006567

$23.05

80

Yellow LH Cover Front Fender

705005852

$22.28

80

Yellow RH Cover Front Fender

705005853

$23.05

80

Red LH Cover Front Fender | Model-Red

705007340

$136.89

80

COVER FENDER RH B-101 PAINTED - Call your local BRP dealership | Model-Red

705011800

Unavailable

82

WHITE LH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007981

Unavailable

82

WHITE RH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007982

Unavailable

82

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

705006562

$23.82

82

Black RH Front Fender Trim

705006563

$26.12

82

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

705006562

$23.82

82

Black RH Front Fender Trim

705006563

$26.12

82

Yellow LH Front Fender Trim

705005953

$26.12

82

YELLOW RH FRONT FENDER TRIM - Call your local BRP dealership

705005954

Unavailable

82

RED LH FRONT FENDER TRIM - Call your local BRP dealership | Model-Red

705007338

Unavailable

82

TRIM FR B-101 PAINTED - Call your local BRP dealership | Model-Red

705011807

Unavailable

84

LH Rear Radiator Grille

705005983

$18.43

84

RH Rear Radiator Grille

705005984

$18.43

86

TRIM_HEADLIGHT REAR L B-160 - Call your local BRP dealership

705006583

Unavailable

86

TRIM_HEADLIGHT REAR R B-160 - Call your local BRP dealership

705006584

Unavailable

86

WHITE LH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007370

Unavailable

86

WHITE RH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007371

Unavailable

86

TRIM_HEADLIGHT REAR L B-160 - Call your local BRP dealership

705006583

Unavailable

86

TRIM_HEADLIGHT REAR R B-160 - Call your local BRP dealership

705006584

Unavailable

86

TRIM_HEADLIGHT REAR L B-160 - Call your local BRP dealership

705006583

Unavailable

86

TRIM_HEADLIGHT REAR R B-160 - Call your local BRP dealership

705006584

Unavailable

86

YELLOW LH REAR FACIA TRIM - Call your local BRP dealership

705005990

Unavailable

86

Yellow RH Rear Facia Trim

705005991

$11.63

86

RED LH REAR FACIA TRIM - Call your local BRP dealership | Model-Red

705007372

Unavailable

86

TRIM RR B-101 PAINTED - Call your local BRP dealership | Model-Red

705011832

Unavailable

88

LH Front Facia Trim

705005992

$9.77

88

RH Front Facia Trim

705005993

$9.77

90

LOGO Support

705005994

$13.83

93

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

93

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

Unavailable

95

LH Front Facia Support

705006078

$10.14

95

RH Front Facia Support

705006079

$10.14

97

Bagage Central Rack

705006128

$50.74

98

Central Bagage Rack Cap

705006132

$9.29

99

Bagage Rack Tube

705006279

$35.35

100

Clamp

705006623

$3.08

101

Radiator Grille Bracket

705006635

$10.14

102

LH Bagage Rack Cover

705006713

$9.29

103

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

104

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

705006828

Unavailable

105

LH Lateral Middle Panel | STD

705006991

$69.20

105

RH Lateral Middle Panel | STD

705006992

$69.20

107

RH Lateral Skid Plate

705007038

$64.58

109

Rear Support Facia Clip

705007044

$2.99

110

LH Rear Facia Support

705007045

$10.14

111

RH Rear Facia Support

705007046

$10.14

112

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

113

Black Removable Hood | Black Models

705007060

$314.58

114

Cup | Package Hunter

705007171

$6.18

115

Body Tube

705007299

$62.28

116

Yellow LH Rear Lateral Panel

705007872

$101.51

116

Yellow RH Rear Lateral Panel

705007873

$101.51

116

White LH Rear Lateral Panel | Model-White

705007362

$106.12

116

White RH Rear Lateral Panel | Model-White

705007363

$106.12

116

Yellow LH Rear Lateral Panel

705007872

$101.51

116

Yellow RH Rear Lateral Panel

705007873

$101.51

116

Yellow LH Rear Lateral Panel

705007872

$101.51

116

Yellow RH Rear Lateral Panel

705007873

$101.51

116

RED LH REAR LATERAL PANEL - Call your local BRP dealership | Model-Red

705007364

Unavailable

116

PANEL BODY RR B-101 PAINTED - Call your local BRP dealership | Model-Red

705011705

Unavailable

118

LH Bumper Grille

705007497

$23.05

118

RH Bumper Grille

705007498

$23.05

120

LH BUMPER GRILL - Call your local BRP dealership | Europe

705007499

Unavailable

120

RH BUMPER GRILL - Call your local BRP dealership | Europe

705007500

Unavailable

122

FENDER REAR L B-160 - Call your local BRP dealership

705009035

Unavailable

122

Black RH Rear Fender

705009036

$128.43

122

White LH Rear Fender | Model-STD White

705009037

$128.43

122

White RH Rear Fender | Model-STD White

705009038

$128.43

122

FENDER REAR L B-160 - Call your local BRP dealership

705009035

Unavailable

122

Black RH Rear Fender

705009036

$128.43

122

FENDER REAR L B-160 - Call your local BRP dealership

705009035

Unavailable

122

Black RH Rear Fender

705009036

$128.43

122

FENDER REAR L B-190 - Call your local BRP dealership

705009033

Unavailable

122

Yellow RH Rear Fender

705009034

$128.43

122

RED LH REAR FENDER - Call your local BRP dealership | Model-Red

705007368

Unavailable

122

FENDER REAR R B-101 - Call your local BRP dealership | Model-Red

705009042

Unavailable

123

LH Front Deflector | Model-Red

705008988

$49.97

124

RH Front Deflector | Model-Red

705008989

$49.97

125

LH Rear Deflector | Model-Red

705007637

$51.51

126

RH Rear Deflector | Model-Red

705007638

$51.51

127

LH Inner Fender

705009548

$55.35

127

RH Inner Fender

705009549

$55.35

128

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable
