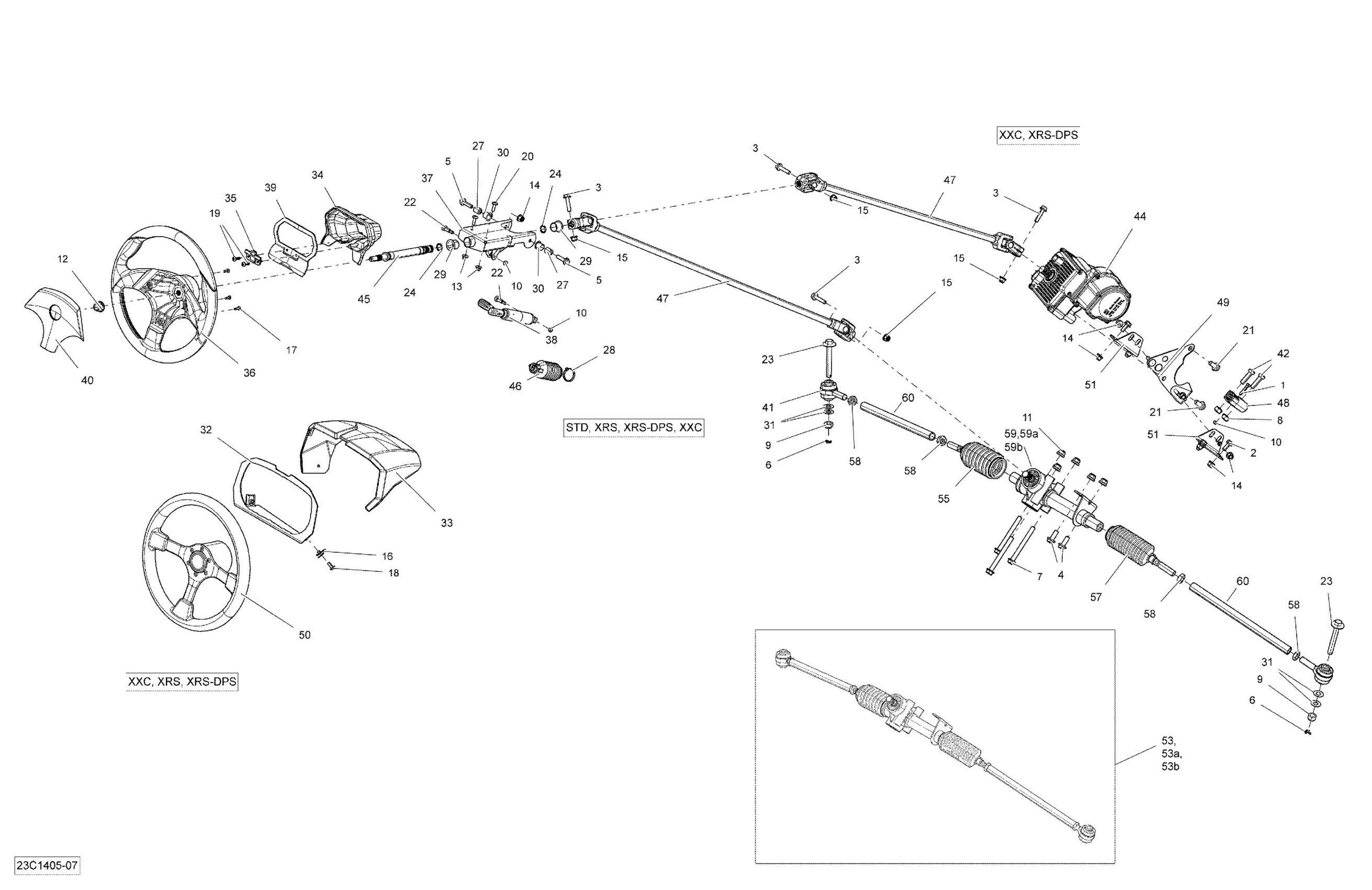

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063044

$1.12

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

3

Hex. Flange Screw M8 X 35

250000986

$2.00

4

Hex. Flange Screw M10 X 25

207602546

$2.00

5

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

6

Cotter Pin

211400017

$0.28

7

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

8

Elastic Stop Nut M10

232500416

$1.79

9

Elastic Stop Nut M12

232521416

$1.61

10

Elastic Stop Nut M6

232561414

$1.78

11

Hex. Flange Elastic Nut M10

233201436

$2.00

12

Hex. Flange Elastic Nut M12

233221414

$5.85

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Hex. Flange Elastic Nut M8

233281414

$1.31

15

Hex. Elastic Flange Nut M8

233281416

$1.43

16

Panel Nut M6 X 1.0

250100198

$1.99

17

Phillips Screw K40 X 16

250000723

$0.93

18

Torx Truss Screw M6 X 16

250000721

$1.60

19

Truss Head Torx Screw K50 X 20

250000297

$2.00

20

Torx Truss Screw M6 X 20

250000350

$5.04

21

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.67

22

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

23

Hexagonal Screw M12 X 88

250000657

$5.96

24

O-Ring

293300144

$3.79

27

Bushing

293900106

$4.28

28

Tie-Rap 180 mm

414115200

$0.10

29

Steering Bushing

709402725

$3.07

30

Bushing

705600799

$3.72

31

Hardened Washer

706200281

$2.69

32

Cluster Support | X, XT

707900013

$14.76

33

Upper Cluster Cover | X, XT

707900124

$14.76

34

Speedometer Cover

709400514

$14.90

35

Latch Indicator Cover

709400573

$9.90

36

Steering Wheel | STD

709400650

$126.84

37

Painted Steering Wheel Support

709401391

$76.84

38

Adjustment Cylinder

709402506

$64.90

39

Cluster Support | STD

709400760

$19.37

40

Steering Center | STD

709400780

$10.82

41

Ball Joint

709401125

$49.22

42

Hex. Screw M10 X 35

207103586

$0.96

44

Power Steering

709401406

$1,558.49

45

Steering Shaft

709401167

$44.00

46

Boot Tube Side

709401232

$15.64

47

STEERING SHAFT ASS'Y - Call your local BRP dealership | XRS-DPS

709401293

Unavailable

47

Steering Shaft Ass'y

709401388

$177.58

48

COUPLING - Call your local BRP dealership

709401294

Unavailable

49

SUPPORT - Call your local BRP dealership

709401296

Unavailable

50

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

51

SUPPORT - Call your local BRP dealership

709401339

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

55

Boot Kit, Pinion Side

715900235

$50.72

57

Boot Kit, Tube Side

715900236

$50.72

58

Steering Rod Nut

715900238

$1.76

59

Not Available As Spare Parts

XXX

Unavailable

60

Tie Rod

709401427

$30.57

53a

Control Rack Ass'y | STD, XRS

709401352

Unavailable

53b

Control Rack Ass'y | XRS-DPS

709401353

Unavailable

59a

Rack And Pinion Steering | STD, XRS

709401325

$354.45

59b

Rack And Pinion Steering | XRS-DPS

709401236

$354.45
