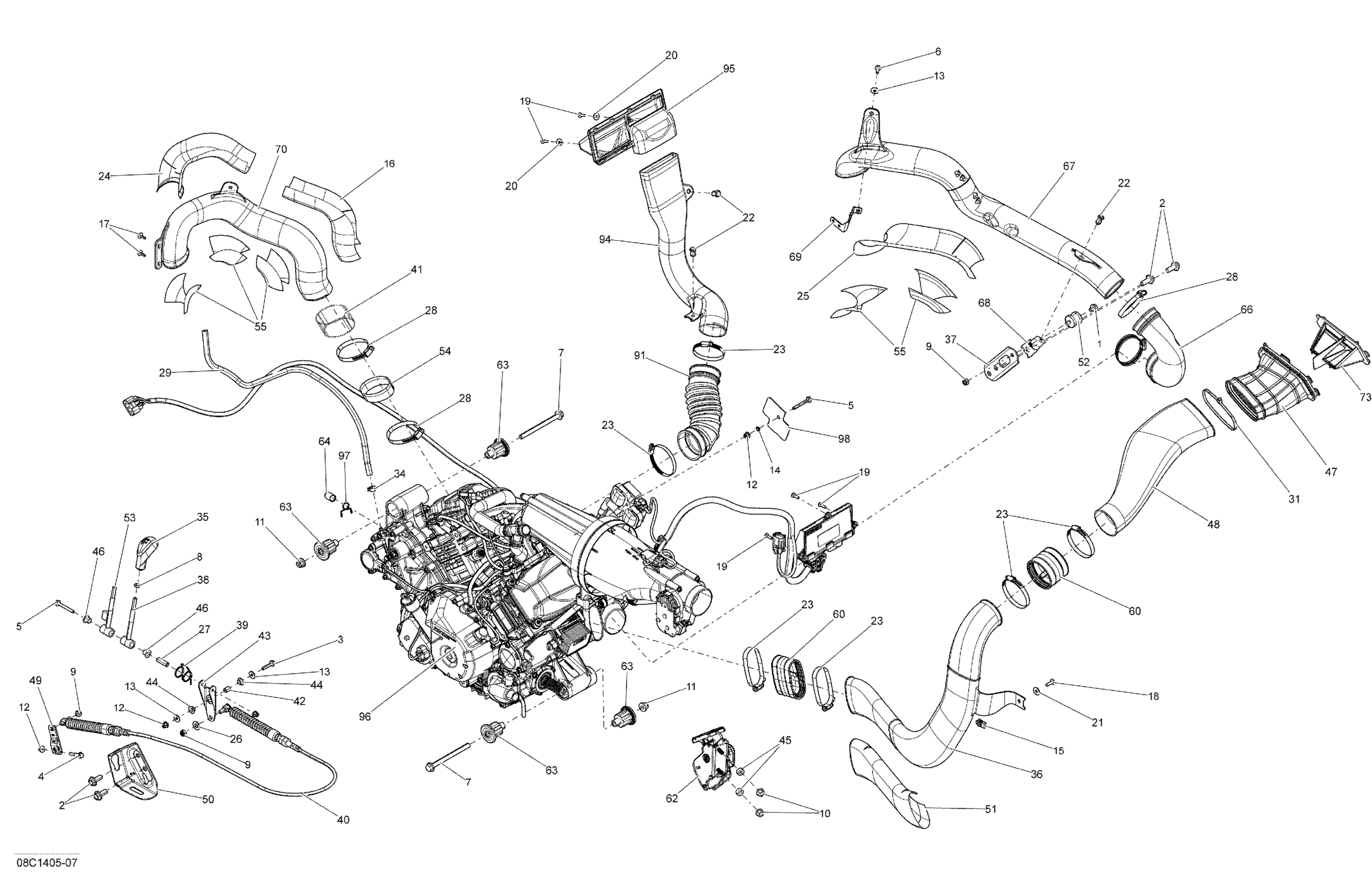

Can-Am Maverick 1000, STD, XRS, XRS-DPS, 2014 Engine Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

2

Hex. Flange Screw M10 X 25

207602544

$1.33

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

4

Hex. Flange Screw M6 X 35

207663544

$0.74

5

Hex. Flange Screw M6 X 50

207665044

$3.38

6

Hex. Flange Screw M6 X 16

210261650

$1.22

7

Hex. Flange Screw M10 X 125

230602546

$6.08

8

Hex. Jam Nut M8

232180491

$6.18

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Hex. Flange Nut M8

233081416

$1.63

11

Hex. Flange Elastic Nut M10

233201436

$1.74

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Flat Washer 6 mm

234062410

$0.64

14

External Serrated Lock Washer 6 mm

234461608

$0.92

15

Panel Nut M6 X 1.0

250100198

$1.73

16

Reflector

707001284

$7.69

17

Screw M4 X 16

250000725

$2.87

18

Torx Screw M6 X 20

250000722

$1.34

19

Torx Screw K50 X 16

250000720

$1.39

20

Washer M5

250200025

$0.61

21

Flat Washer

250200082

$0.35

22

Tuflok Plastic Rivet

293150230

$1.21

23

Norma Clamp

293650091

$4.60

24

Reflector

707001360

$7.69

25

Reflector

707001286

$7.69

26

Flat Washer 10 mm

234001410

$0.98

27

Bushing

707001376

$4.22

28

Norma Gear Clamp

293650118

$9.74

29

Hose

219704549

$47.66

31

Tie Wrap 368 mm

293750008

$0.85

34

Spring Clamp

414415200

$0.83

35

Lever Handle

707000284

$18.43

36

Air Inlet

707000639

$18.43

37

Upper Engine Bracket

707000707

$5.54

38

Upper Lever Arm

707000711

$36.89

39

Lever Arm Spring

707000750

$2.75

40

Shifting Cable

707000775

$64.58

41

Adaptor

707000789

$10.98

42

Bushing

707000801

$2.48

43

Lower Lever Arm

707000828

$16.89

44

Flanged Bushing

707000847

$1.00

45

Bushing

707000848

$1.08

46

Flanged Bushing

707000869

$2.20

47

Adaptor

707000908

$36.89

48

Primary Air Intake

707000909

$23.05

49

Lever

707000911

$18.43

50

Cable Support | Engine 1000

707000919

Unavailable

51

Reflective Sheet

707000924

$32.28

52

Rubber Isolator

707000949

$9.00

53

UPPER LEVER ARM - Call your local BRP dealership | Europe

707000978

Unavailable

54

Reflector

707000988

$4.98

55

Reflective Sheet

707000991

$9.29

60

Flexibale Adaptor

707002585

$14.75

62

Accelerator Pedal

707001166

$281.51

63

Vibration Damper

707001169

$41.51

64

Plug

707001185

$1.37

66

Front Adaptor

707001229

$23.05

67

CVT Outlet

707001230

$46.12

68

Front Support

707001231

$14.37

69

Rear Support

707001232

$8.46

70

CVT Outlet

707001243

$64.58

73

CVT Filter

707001344

$14.75

91

Flexible Adaptor

707001400

$20.74

94

Air Inlet

707001403

$46.12

95

Filter

707001422

$19.20

96

Long Block Kit

420101006

$3,995.99

97

Retainer Clip

707800506

$10.98

98

Insulator Pad

710000073

$11.06
