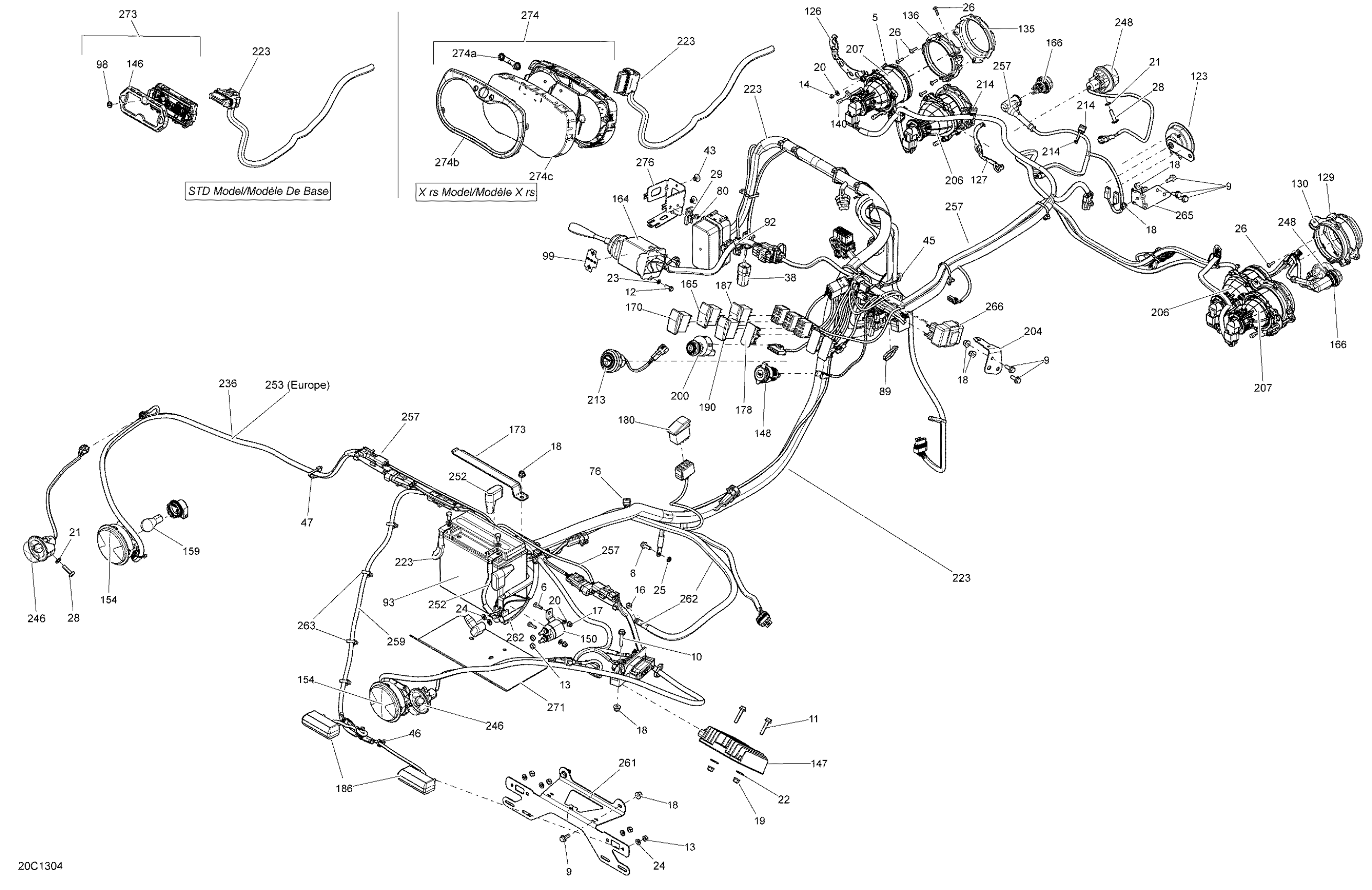

Can-Am Maverick 1000, STD, XRS, 2013 Electrical System Diagram

Hex. Screw M4 X 25

207142544

$1.87

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 16

207661644

$0.70

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Hex. Forming Screw M5 X 16

210251650

$1.06

Hex. Nut M6

232061600

$1.04

Hex. Nut M6

232061600

$1.04

Elastic Stop Nut M4

232541414

$0.55

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Elastic Nut M5

233251414

$1.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Elastic Nut M6

233261494

$1.45

Flat Washer M5

234051410

$0.51

Flat Washer 6 mm

234061410

$1.19

Stainless Steel Flat Washer

234062670

$2.00

Lock Washer 5 mm | Europe

234151401

$0.52

Lock Washer Helical M6

234161601

$1.06

Lock Washer Helical M6

234161601

$1.06

External Serrated Lock Washer 6 mm

234461608

$1.06

Phillips Screw K40 X 16

250000723

$0.93

Torx Screw M6 x 25

250000284

$2.00

Clip

270000141

$9.57

Diagnostic Connector

278002704

$17.88

Pop Rivet 3/16"

293150103

$0.52

Mount Dart

293730040

$0.99

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

Clip Tie-Rap

293750063

$7.51

Pop Rivet 3/16"

390402400

$0.28

Tie-Rap 180 mm

414115200

$0.10

Clip

414227300

$1.40

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

BRP Logo13 mm

704904615

$11.09

Flasher Decal | Europe

704902614

$16.39

Horn

710004791

$36.54

LH High Light Support

710001036

$4.76

RH High Light Support

710001115

$4.76

LH Low Light Support

710001037

$8.15

RH Low Light Support

710001094

$8.15

RH Low Front Housing

710001081

$16.39

LH Low Front Housing

710001083

$16.39

RH Low Rear Housing

710001082

$10.55

LH Low Rear Housing

710001084

$10.55

RH High Front Housing

710001085

$16.39

LH High Front Housing

710001087

$16.39

RH High Rear Housing

710001086

$10.55

LH High Rear Housing

710001088

$10.55

Setting Screw

710001147

$11.81

Trim Ring Ass'y

710001183

$17.88

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

DC Outlet

710001248

$35.79

Starter Relay

710007777

$45.49

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

Bulb

520000758

$8.60

Turn Signal | Europe

710001721

$187.28

Hi/Low Switch | Except Europe

710001725

$21.49

Day Light | Europe

710001726

$32.81

4X4 Switch

710001737

$29.82

Battery Holder

710001916

$16.39

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Switch, Over ride

710002053

$19.27

License Light

710002055

$59.67

Switch Hazard | Europe

710002076

$17.88

PPS Sport Switch

710002199

$17.88

Ignition Switch

710008400

$72.36

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

Engine Start Button

710002594

$55.94

Tie-Rap Clip

710002896

$3.93

WIRING HARNESS ASSY - Call your local BRP dealership

710002924

Unavailable

Rear Harness

710003680

$26.09

Flasher | Europe

710002964

$34.30

CABLE-POSITIVE - Call your local BRP dealership

710004388

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership | Europe

710003681

Unavailable

Harness Ass'y | Europe

710004346

$384.30

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

LIGHT SUPPORT - Call your local BRP dealership | Europe

710003150

Unavailable

Cable Positif *Cable-Positive

710004389

$32.81

Dart Tie Rap 200MM

710003168

$6.57

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

Flasher Unit

710003239

$73.10

Heat Deflector

710003265

$14.76

Calibrated Speedometer | Includes 16 to 17

710003288

$314.90

CALIBRATED SPEEDOMETER - Call your local BRP dealership | X

710003292

Unavailable

Fuse Holder

710003335

$8.60

Speedometer Button | XTP

415129355

$13.52

Gauge Ring

415129348

$11.36

Lens | XTP

415129349
