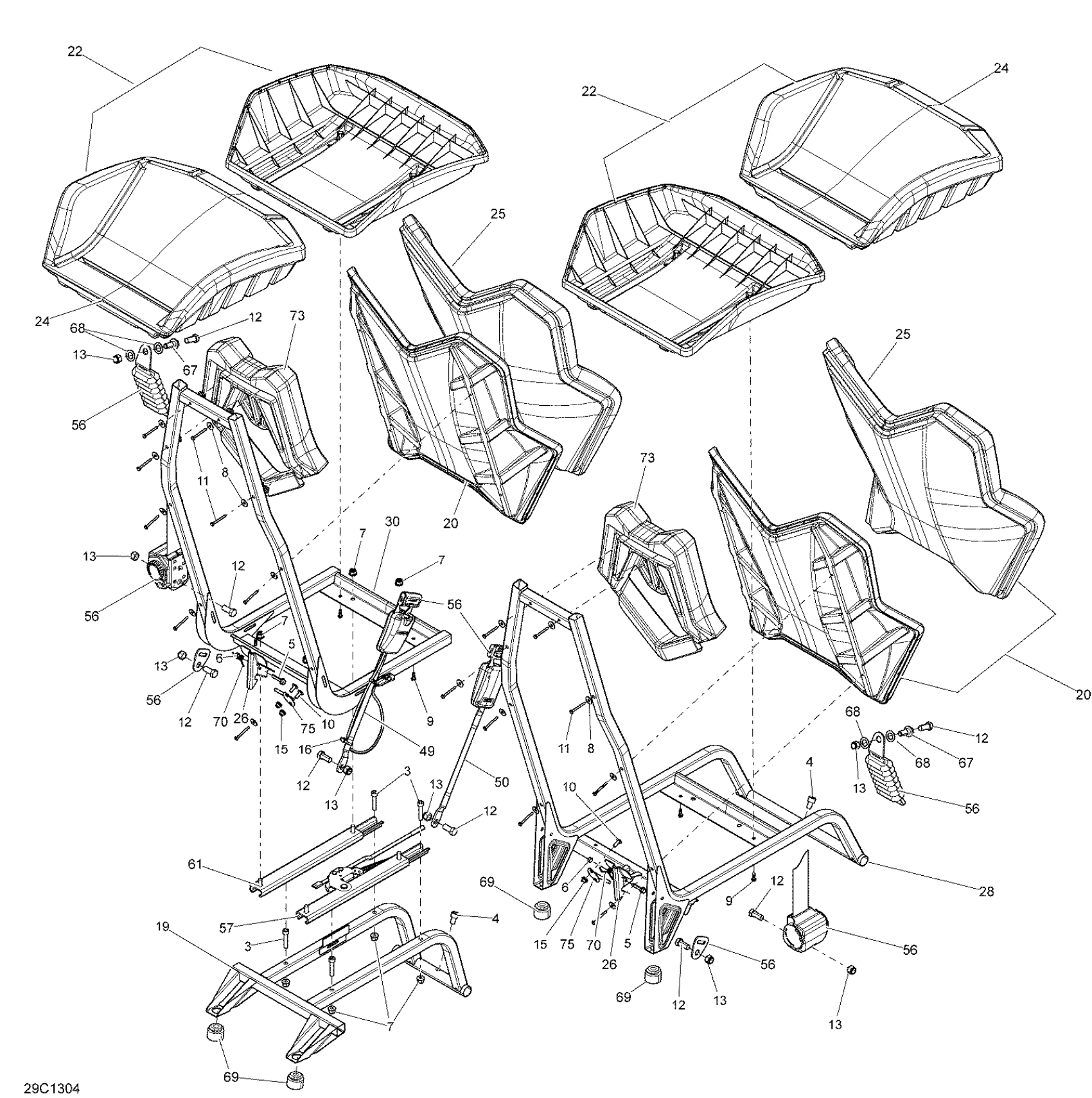

Can-Am Maverick 1000, STD, XRS, 2013 Seat Diagram

#

Description
Price

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

4

Socket Screw M10 X 16

205501644

$3.38

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Stainless Steel Flat Washer

234062670

$1.74

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

10

Torx Screw M6 X 16

250000223

$1.74

11

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

12

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

13

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

15

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Tie Wrap 368 mm

293750008

$0.85

19

Seat Member

708000667

$55.35

20

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

20

KIT BACKREST ASS'Y, X MODEL - Call your local BRP dealership | Black/Yellow

703500946

Unavailable

22

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

22

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

24

Seat Cover

708001103

$110.74

24

SEAT COVER - Call your local BRP dealership | Black/Yellow

708001084

Unavailable

25

Backrest Cover

708000675

$92.28

25

BACKREST COVER - Call your local BRP dealership | Black/Yellow

708001080

Unavailable

26

Seat Latch

708001355

$2.75

28

Passenger Seat Frame

708000690

Unavailable

30

Driver Seat Frame

708000739

Unavailable

49

Driver Buckle Side | Europe

708000856

Unavailable

49

Driver Buckle Side

708002061

$69.20

50

Passenger Buckle Side

708000844

$50.74

50

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

56

SAFETY BELT - Call your local BRP dealership

708001108

Unavailable

56

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

57

RH RAIL - Call your local BRP dealership

708000846

Unavailable

61

LH Rail

708000848

$50.74

67

Safety Belt Screw

708000890

$3.68

68

Position Washer

708000891

$1.15

69

Rubber Bumper

708001671

$2.31

70

Spring

708000921

$1.15

73

Head Rest

708001074

$96.89

75

RETAINING ROD - Call your local BRP dealership

708001238

Unavailable
