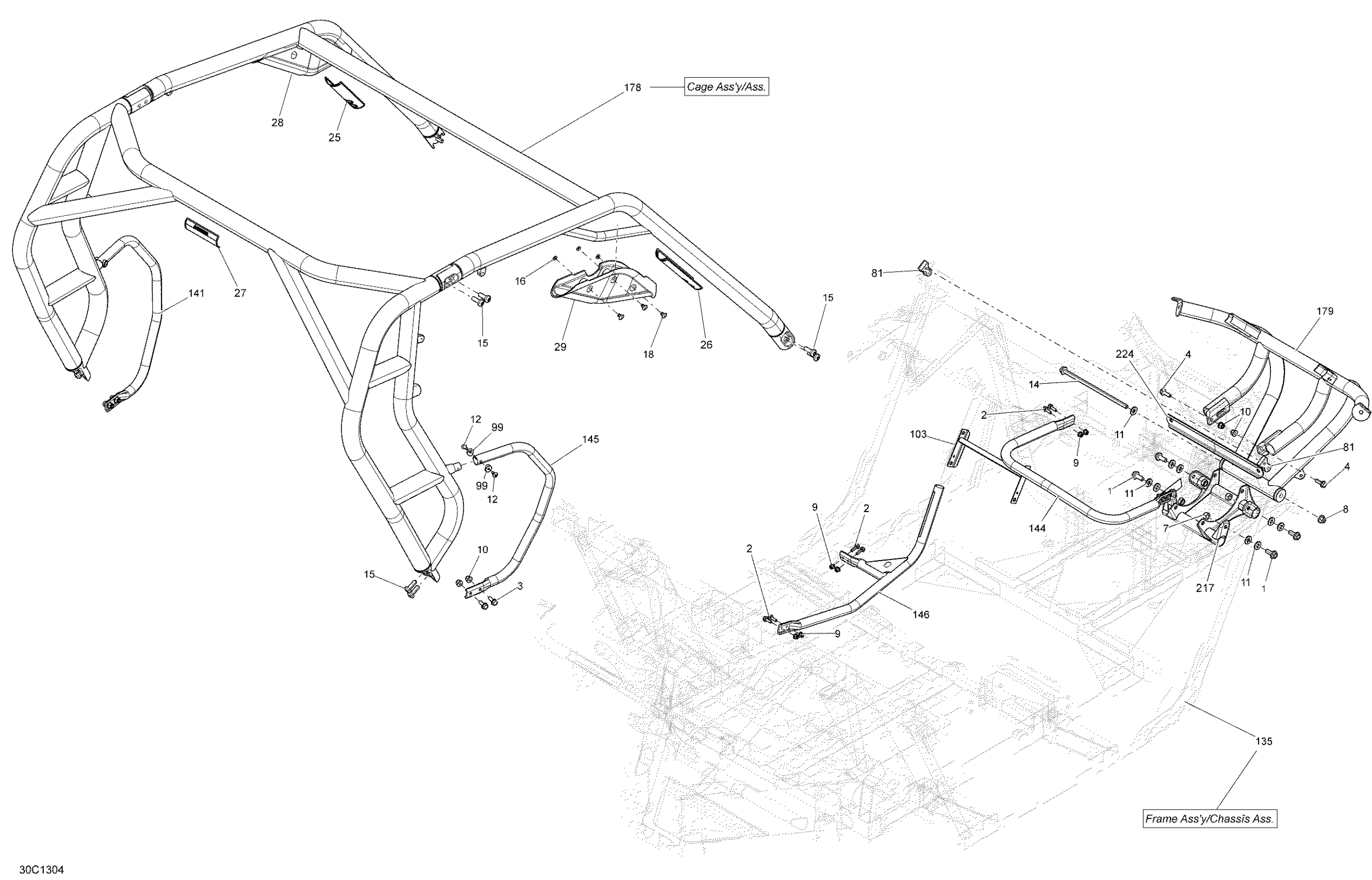

Can-Am Maverick 1000, STD, XRS, 2013 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

$1.74

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M8 X 20

207682044

$0.92

4

Hex. Flange Screw M8 X 25

207682544

$0.90

7

Elastic Stop Nut M10

232500416

$1.56

8

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Conical Spring Washer 10 mm

234201474

$1.39

12

Torx Truss M6X14

250000789

$4.41

14

Hex. Flange Screw

250000597

$10.30

15

Screw Pan M10 X 30

250000848

$1.56

16

Flat Washer

250200121

$1.49

18

Pop Rivet 3/16”

293150108

$1.23

25

WARNING LABEL - Call your local BRP dealership

704902413

Unavailable

26

WARNING LABEL - Call your local BRP dealership

704902415

Unavailable

27

Warning Label

704903492

Unavailable

28

LH CAGE CAP MOULDING - Call your local BRP dealership

705004985

Unavailable

29

RH CAGE CAP MOULDING - Call your local BRP dealership

705004986

Unavailable

81

Binding Block

705203415

$16.89

99

Offset Washer

705202223

$4.98

103

Reinforcement Panel

705203330

$147.66

135

Frame Ass'y, Black

715001976

Unavailable

141

LH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203323

Unavailable

144

Black Handle

705203332

$129.20

145

RH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203321

Unavailable

146

HANDLE - Call your local BRP dealership

705203828

Unavailable

178

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

179

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

217

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

224

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$20.74
