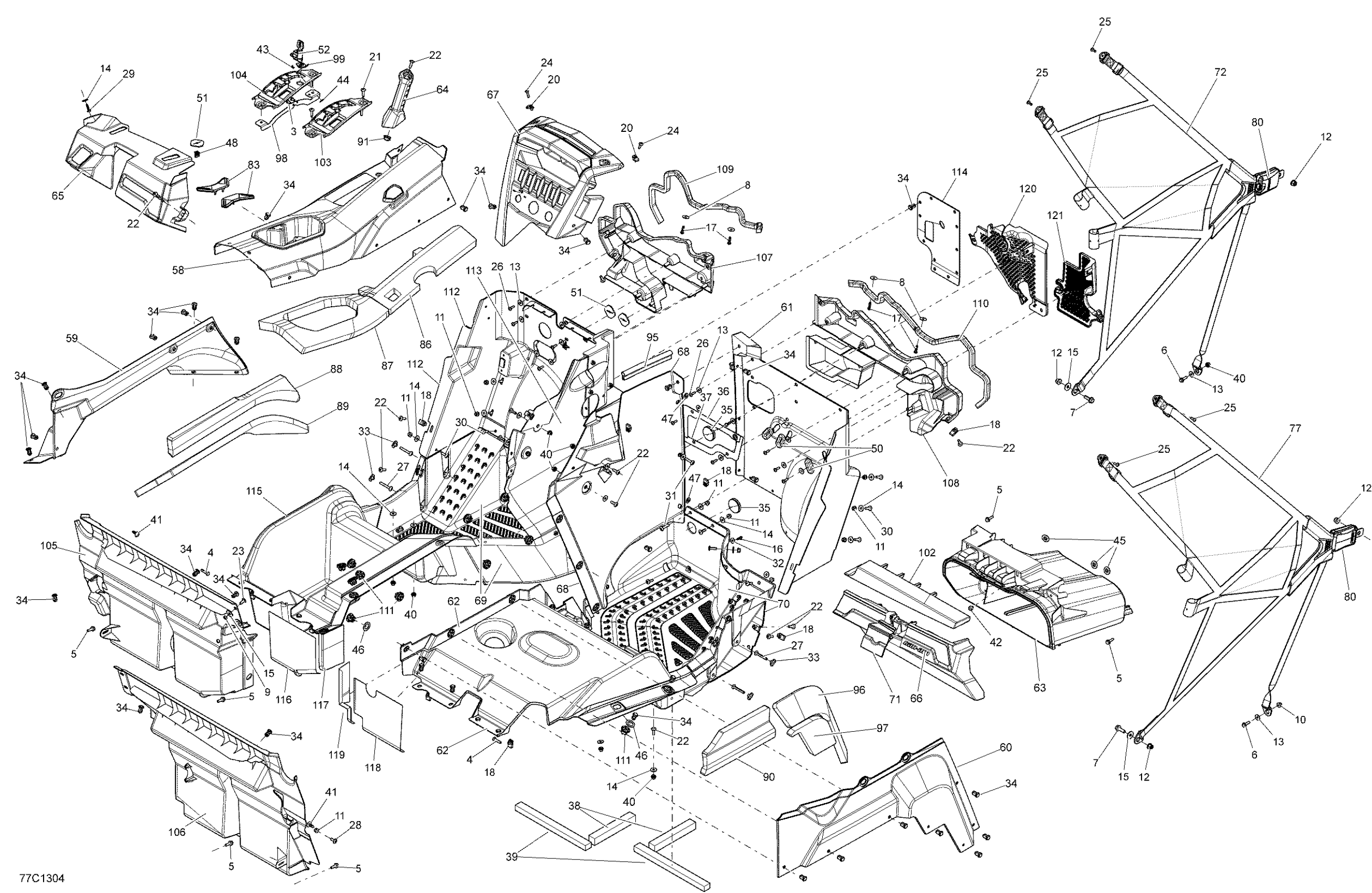

Can-Am Maverick 1000, STD, XRS, 2013 Cab Interior Diagram

#

Description
Price

3

Socket Head Screw M5 X 10

205951046

$2.38

4

Torx Screw K50 X 16

250000720

$1.39

5

Hex. Flange Screw M6 X 20

207662034

$1.74

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M8 X 25

207682544

$0.90

8

Flat Washer

224060201

$1.15

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Elastic Nut M6

233261494

$1.26

12

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Flat Washer 6 mm

234062410

$0.64

14

Stainless Steel Flat Washer

234062670

$1.74

15

Flat Washer 8 mm

234082410

$1.11

15

Flat Washer

250200040

$1.82

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

17

Hex. Flange Screw K50 X 20

241152060

$1.57

18

Panel Nut M6 X 1.0

250100198

$1.73

20

Panel Nut M5 X 0.8

250000958

$3.48

21

Torx Screw M6 X 25 | XT Models

250000728

$3.61

22

Torx Screw M6 X 20

250000722

$1.34

23

Torx Truss Screw M6 X 20

250000350

$4.39

24

Torx Screw M5 X 20

250000724

$1.39

25

Torx Screw M5 X 14

250000742

$1.20

26

Torx Screw K50 X 16

250000720

$1.39

27

Torx Screw M6 X 45

250000215

$1.56

28

Torx Screw M6 X 16

250000755

$0.72

29

Truss Head Torx Screw K50 X 20

250000297

$2.06

30

Hex. Socket Screw M6 X 20

250000770

$1.63

31

Torx Truss Screw M6 X 30

250000843

$1.74

32

Washer M5

250200025

$0.61

33

Nut Welded, M6

293100003

$6.32

34

Tuflok Plastic Rivet

293150230

$1.21

35

Rubber Cover

293250242

$5.38

36

Upper Seal

293250252

$2.75

37

Bottom Seal

293250253

$2.99

38

SEAL TRAY - Call your local BRP dealership

293250318

Unavailable

39

SEAL TRAY - Call your local BRP dealership

293250319

Unavailable

40

Threaded Insert M6 X 1.0

250100242

Unavailable

41

Black, Dart

293730011

$0.79

42

Rubber Bumper

293830005

$5.33

43

Rivet

390401400

$0.51

44

WASHER - Call your local BRP dealership

391301000

$0.65

45

CAP - Call your local BRP dealership

414859400

Unavailable

46

Washer

503189273

$3.20

47

Washer

506151252

$3.11

48

Edge Clip

517302785

$0.70

50

Oblong Grommet

705003668

$4.54

51

Support Plate

705003841

$0.91

52

Padlock with Key

707000666

$27.66

58

Central Console Ass'y

715001247

$226.12

58

CENTRAL CONSOLE ASS'Y - Call your local BRP dealership | Europe

715001249

Unavailable

59

LH Side Console

707900001

$41.51

60

RH Side Console

707900002

$36.89

61

RH Front Floor

707900004

$78.43

62

RH Under Seat Plate

707900006

$106.12

63

Storage Bin

707900009

$110.74

64

Passenger Handle

707900011

$12.91

65

Dashboard Ass'y

715001250

$78.43

66

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

67

Central Dashboard Ass'y

715001265

$59.97

67

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

68

RH Fixe Side Console

707900021

$73.82

69

LH Lower Floor

707900022

$253.82

70

RH Lower Floor

707900023

$184.58

71

Latch

707900031

$8.29

72

LH Lateral Net | Upper Link 707900049

707900127

$193.05

77

RH Lateral Net | Upper Link 707900049

707900128

$193.05

80

Buckle

707900035

$50.74

83

Cup Retainer

707900036

$6.45

86

Front Central Console Foam

707900619

$16.12

87

REAR CENTRAL CONSOLE FOAM - Call your local BRP dealership

707900042

Unavailable

88

Left Upper Lateral Console Foam

707900620

$15.35

89

LH Lower Lateral Console Foam

707900621

$20.74

90

RH Lateral Console Foam

707900622

$15.35

91

Connector Tube

707900048

$6.45

95

Was 293250240 Neoprene Seal

219704451

$49.37

96

RH Lateral Console Foam

707900623

$15.35

97

RH Lateral Console Foam

707900624

$15.35

98

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

99

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

102

Trim Glove Box

707900062

$17.66

103

Lever Indicator

707900070

$14.75

104

Lever Indicator | Europe

707900071

$14.75

105

LH Rear Deflector

707900164

$92.28

106

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

107

Floor Support LH

707900561

$23.05

108

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

109

Was 293200017 Neoprene Seal

219704365

$118.27

110

Was 293200017 Neoprene Seal

219704365

$118.27

111

Insert

707900133

$2.75

112

LH Front Floor

707900181

$78.43

113

Front Side Dash Panel

707900193

$69.20

114

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable

115

LH Under Seat Plate Kit

715002356

Unavailable

116

HEAT SHIELD - Call your local BRP dealership

707900159

Unavailable

117

HEAT SHIELD - Call your local BRP dealership

707900160

Unavailable

118

Heat Shield

707900167

$8.45

119

HEAT SHIELD - Call your local BRP dealership

707900168

Unavailable

120

Grille

707900178

$9.18

121

Grille

707900180

$9.18
