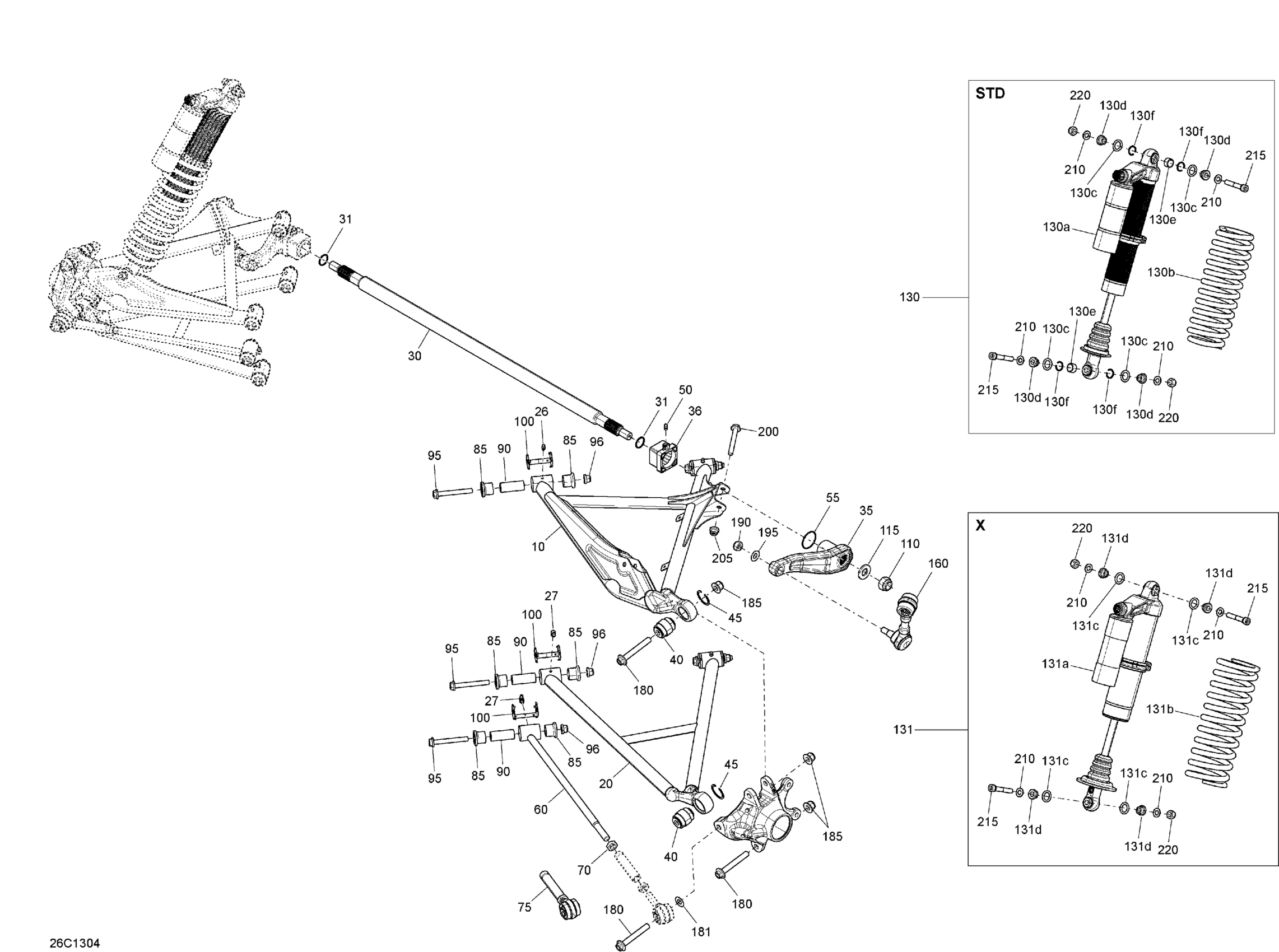

Can-Am Maverick 1000, STD, XRS, 2013 Rear Suspension Diagram

#

Description
Price

10

LH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

706001352

Unavailable

10

LH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

706001380

Unavailable

10

RH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

706001353

Unavailable

10

RH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

706001381

Unavailable

20

Black LH Rear Lower Arm

706001354

$187.28

20

Black RH Rear Lower Arm

706001355

$187.28

26

Grease Fitting

408200700

$3.21

27

Grease Fitting 90°

293550056

$1.04

30

Sway Bar

706001356

$170.87

31

Retaining Ring

706000251

$5.90

35

Sway Bar Lever

706001371

$152.96

36

Sway Bar Housing

706001402

$13.78

40

Radial Joint

706001373

$49.22

45

Retaining Ring

293370093

$6.75

50

Grease Fitting

408200700

$3.21

55

O-Ring

293300100

$5.34

60

Rear Coupling Bar

706001357

$44.00

70

LH Hex. Lock Nut M14

232175411

$6.21

75

LH Ball Joint

706001438

$50.72

85

Suspension Arm Bushing

706204409

$8.40

90

Sleeve

706201590

$9.76

95

Hex Flange Screw M10 X 80

207608046

$5.12

96

Hex. Flange Elastic Nut M10

233201436

$2.00

100

Wear Plate

706201660

$0.85

110

Elastic Stop Nut M18

232591414

$4.00

115

Washer

250200045

$7.21

130

Not Available As Spare Part - Friction Washer

Unavailable

130a

REAR SHOCK - Call your local BRP dealership | STD

706001240

Unavailable

130b

YELLOW REAR SPRING - Call your local BRP dealership | STD

706001241

Unavailable

130c

O-Ring Bushing

715900209

$12.49

130d

Interior Bushing | XTP

715900210

$13.58

130e

Spherical Bearing

715900251

$73.85

130f

Retaining Ring

715900252

$10.24

131

Not Available As Spare Part - Friction Washer

Unavailable

131a

REAR SHOCK - Call your local BRP dealership | X

706001312

Unavailable

131b

YELLOW REAR SPRING - Call your local BRP dealership | X

706001313

Unavailable

131c

O-Ring Bushing

715900209

$12.49

131d

Interior Bushing | XTP

715900210

$13.58

160

LH Double Ball Joint

706001741

$95.49

160

RH Double Ball Joint

706001742

$95.49

180

Hex. Flange Screw M12 X 85

207628546

$6.36

181

Hardened Washer

706200281

$2.69

185

Elastic Flange Nut M12

233221416

$2.67

190

Hex. Flange Elastic Nut M12

250000047

$1.79

195

Hardened Washer

706200281

$2.69

200

Hex. Flange Screw M10 X 70

207607046

$2.82

205

Hex. Flange Elastic Nut M10

233201436

$2.00

210

Elastic Locking Nut M10 X 1.5

233601416

$1.63

215

Socket Screw M10 X 60

250001083

$3.73

220

Washer

503183800

$3.10
