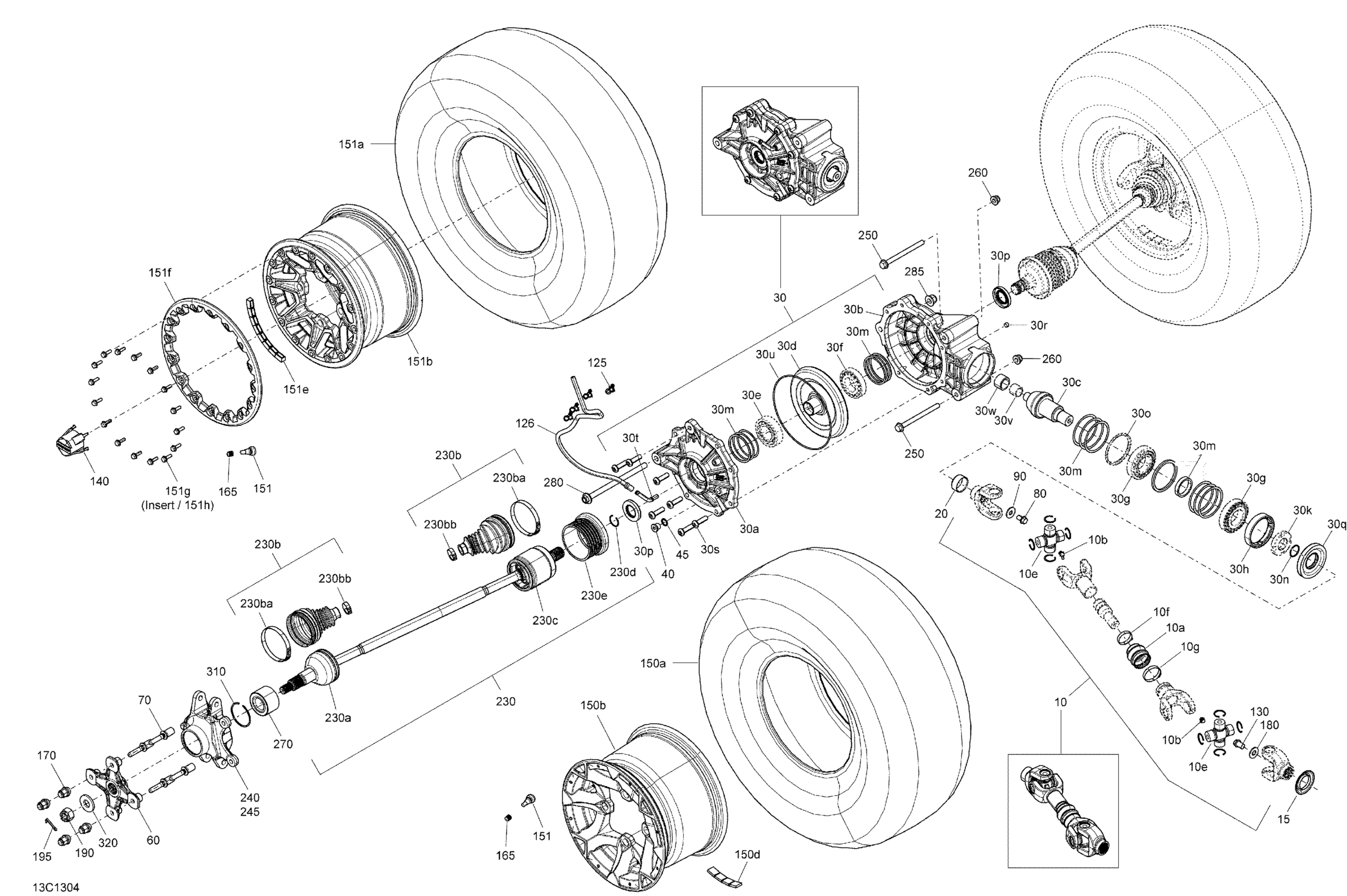

Can-Am Maverick 1000, STD, XRS, 2013 Drive System, Rear Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

10a

Rubber Boot

715900118

$13.83

10b

GREASE FITTING - Call your local BRP dealership

715900239

Unavailable

10e

Universal Joint

715900326

$69.20

10f

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

15

Protector

705501123

$7.37

20

Wear Ring | 4X4

705400036

$25.35

30

Final Drive Unit | Includes 30 to 30m

705502275

$1,324.99

30a

REAR COVER - Call your local BRP dealership

705501735

Unavailable

30b

PINION COVER - Call your local BRP dealership

705501736

Unavailable

30c

Pinion Kit

703500867

$406.12

30d

GEAR 36 TEETH KIT - Call your local BRP dealership

703500837

Unavailable

30e

Not Available As Spare Part - Friction Washer

Unavailable

30f

Not Available As Spare Part - Friction Washer

Unavailable

30g

Not Available As Spare Part - Friction Washer

Unavailable

30h

NUT - Call your local BRP dealership

705501740

Unavailable

30k

Not Available As Spare Part - Friction Washer

Unavailable

30m

Differential Shim Kit

703500839

$50.74

30n

O-Ring

705501554

$4.62

30o

Not Available As Spare Part - Friction Washer

Unavailable

30p

Oil Seal

705501556

$17.66

30q

Oil Seal

705502276

$14.75

30r

Plug Drain

705501724

$5.98

30s

Bolt

705501562

$5.98

30t

Breather Tube

705501584

$13.86

30u

Oil Seal

705501749

$8.45

30v

Not Available As Spare Part - Friction Washer

Unavailable

30w

Needle Bearing

703500840

$59.97

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

60

Wheel Hub

705501900

$129.20

70

Wheel Stud

250300060

$9.58

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

125

Dart Tie Rap 200MM

710003168

$5.72

126

Polyurethane Hose 10000Mm Long

219704410

$46.12

130

Hex Flange Screw M12 X 16

250001039

$1.74

140

Wheel Cap

705400928

$11.06

150a

Rear Tire 27X11X12 | X

705502938

$221.51

150b

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$139.97

150c

Rim Valve With Cap

705400193

$6.69

150d

1/2 Oz Weight

219704465

$4.35

151a

Rear Tire 27X11X12 | X

705502938

$221.51

151b

Black, Rim | XXC

705502244

$139.97

151d

Rim Valve With Cap

705400193

$6.69

151e

1/2 Oz Weight

219704465

$4.35

151f

Yellow Reinforcement Disc

705401329

$78.43

151g

Hex. Flange Screw M6 X 25

250000787

$1.83

151h

Insert | XXC

293450317

$6.69

151a

Rear Tire | X Model Europe

705501818

$243.82

151b

Black, Rim | XXC

705502244

$139.97

151d

Rim Valve With Cap

705400193

$6.69

151e

1/2 Oz Weight

219704465

$4.35

151f

Yellow Reinforcement Disc

705401329

$78.43

151g

Hex. Flange Screw M6 X 25

250000787

$1.83

151

Rim Valve With Cap

705400193

$6.69

165

Valve Cap

293000110

$1.18

170

Black, Wheel Nut M10 X 1.25

250100184

$2.48

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400036

$1.74

230

Half Shaft | Includes 230 to 230e

705502356

$232.74

230a

CV_JOINT EXT - Call your local BRP dealership

705501863

Unavailable

230b

Boot Kit

705501864

$41.51

230ba

Oetiker Clamp, 82.1 mm

715900241

$7.84

230bb

Oetiker Clamp, 27.3 mm

715900242

$7.84

230c

Plunging Joint

705501865

$249.20

230d

Circlip

705501781

$5.38

230e

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

240

LH Rear Knuckle

705501730

$184.58

245

RH Rear Knuckle

705501731

$193.82

250

Hex. Flange Screw M10 X 125

230602546

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

280

Hex. Flange Screw M12 X 190

230629087

Unavailable

285

Elastic Flange Nut M12

233221416

$2.33

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
