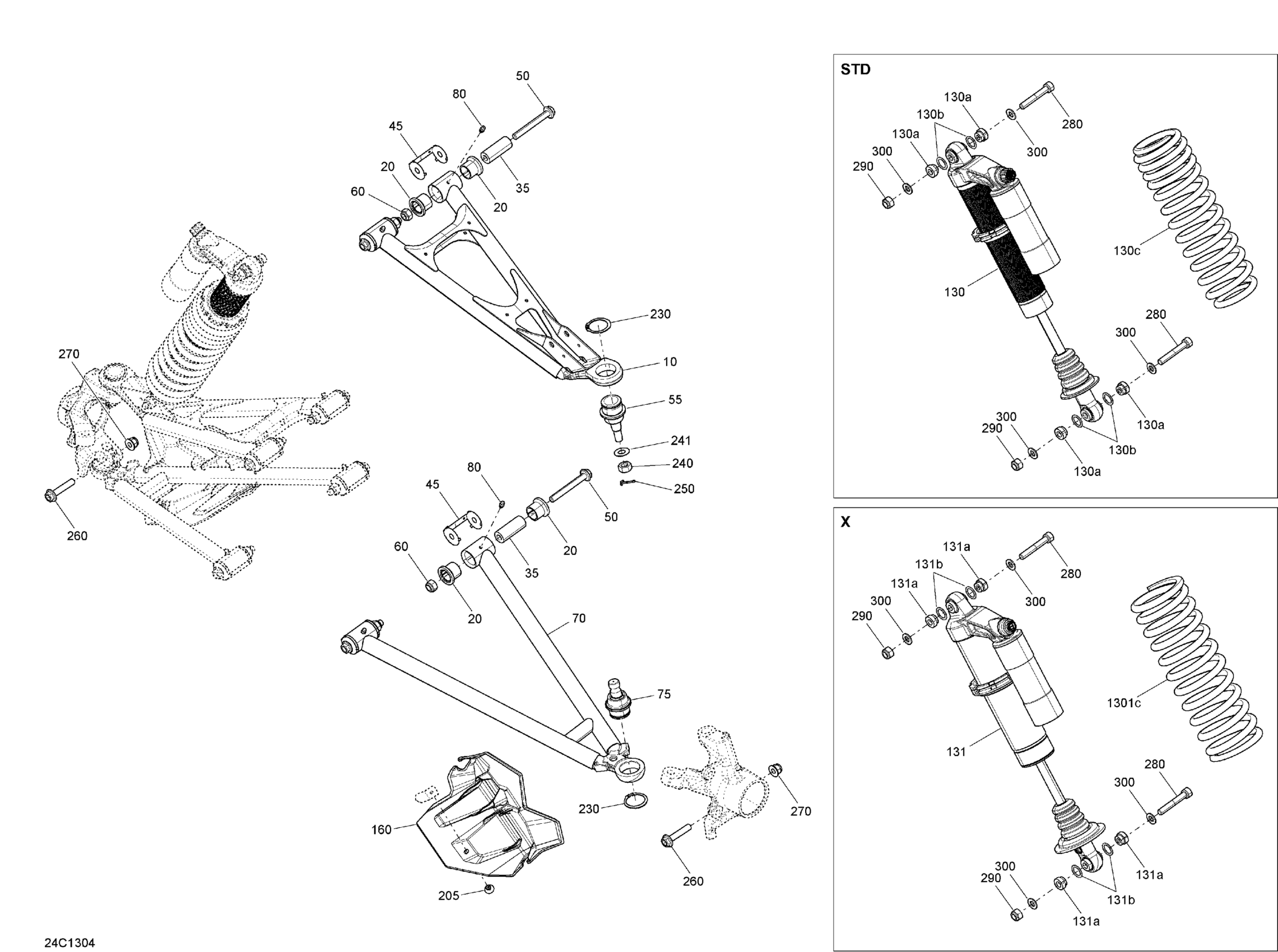

Can-Am Maverick 1000, STD, XRS, 2013 Front Suspension Diagram

#

Description
Price

10

Painted Upper Front Arm | STD

706201602

Unavailable

10

Upper Front Arm Yellow | X

706201644

Unavailable

20

Suspension Arm Bushing

706204409

$8.40

35

Sleeve

706201590

$9.76

45

Wear Plate

706201660

$0.85

50

Hex Flange Screw M10 X 80

207608046

$5.12

55

Ball Joint

706202044

$34.30

70

RH Front Lower Arm

706201862

$187.28

70

LH Front Lower Arm

706201861

$187.28

75

Ball Joint

706202045

$34.30

80

Grease Fitting

408200700

$3.21

130

FRONT SHOCK - Call your local BRP dealership | STD

706201579

Unavailable

130a

Interior Bushing | XTP

715900210

$13.58

130b

O-Ring Bushing

715900209

$12.49

130c

YELLOW FRONT SPRING - Call your local BRP dealership | STD

706201580

Unavailable

131

FRONT SHOCK - Call your local BRP dealership | X

706201599

Unavailable

131b

O-Ring Bushing

715900209

$12.49

131a

Interior Bushing | XTP

715900210

$13.58

131c

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201600

Unavailable

160

RH Joint Protector

706202809

$8.42

160

LH Joint Protector

706202808

$8.42

205

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

260

Hex. Flange Screw M10 X 50

207605044

$5.04

270

Hex. Flange Elastic Nut M10

233201414

$1.45

280

Socket Screw M10 X 60

250001083

$3.73

290

Elastic Locking Nut M10 X 1.5

233601416

$1.63

300

Washer

503183800

$3.10
