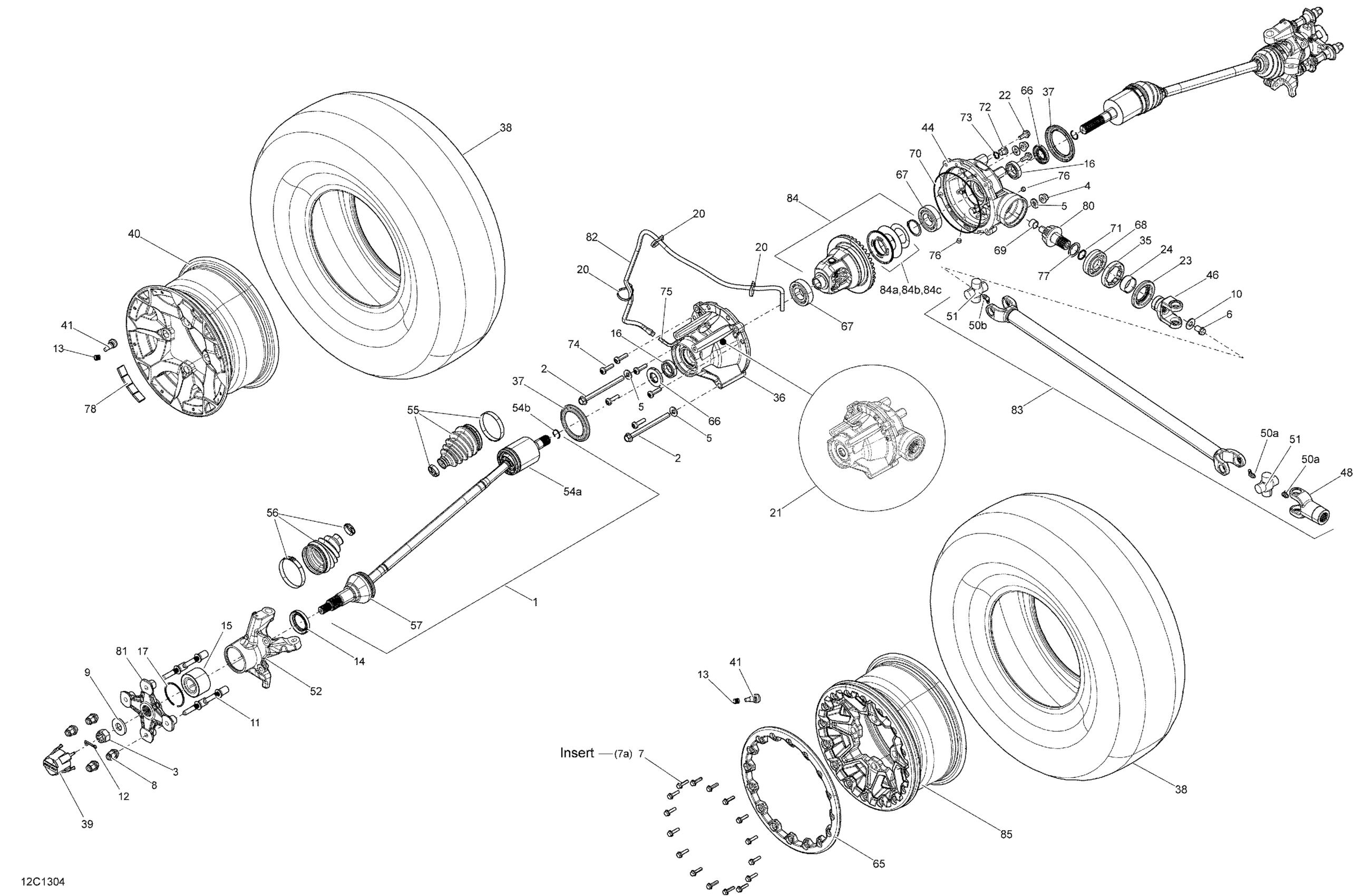

Can-Am Maverick 1000, STD, XRS, 2013 Drive System, Front Diagram

#

Description
Price

1

RH CV Joint

705401874

$232.74

1

LH CV Joint

705401873

$232.74

2

Hex. Flange Screw, M10 X 130

230603046

$6.08

3

Hex. Flange Castellated Nut M18

232291413

$2.82

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Conical Spring Washer 10 mm

234201474

$1.39

6

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

7

Hex. Flange Screw M6 X 25

250000787

$1.83

7a

Insert | XXC

293450317

$6.69

8

Black, Wheel Nut M10 X 1.25

250100184

$2.48

9

Conical Spring Washer M18

250200171

$5.28

10

Flat Washer M12

250200102

$1.74

11

Wheel Stud

250300060

$9.58

12

Cotter Pin

250400036

$1.74

13

Valve Cap

293000110

$1.18

14

O-Ring

293250246

$7.37

15

Ball Bearing

293350150

$51.93

16

Ball Bearing | 4X4

293350044

$30.39

17

Circlip

293370019

$4.98

20

Tie-Rap 180 mm

414115200

$0.09

21

Front Differential | Includes 8 to 31

703500907

$1,476.89

22

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

23

Oil Seal | 4X4

705401481

$18.43

24

Wear Ring | 4X4

705400036

$25.35

35

Nut | 4X4

705401603

$36.89

36

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

37

Wear Sleeve

705400780

$7.28

38

Front Tire 27X9X12 | X

705402560

$198.43

38

Front Tire | X Model, Europe

705401386

$228.43

39

Wheel Cap

705400928

$11.06

40

Deep Black, 12" X 6 Rim | STD

705401417

$132.99

41

Rim Valve With Cap

705400193

$6.69

44

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

46

Fixed Yoke Joint

715900116

$59.97

48

Yoke Joint | Cover 715900483

715900231

$27.66

50a

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

50b

Grease Fitting

703500815

$4.62

51

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

52

LH Front Knuckle

705401548

$129.20

52

RH Front Knuckle

705401549

$106.12

54a

LH Plunging Joint

705401350

$249.20

54a

RH Plunging Joint

705401348

$249.20

54b

Circlip Joint | Not shown

705401349

$5.38

55

Boot Kit, Differential Side

705401346

$41.51

56

Boot Kit, Wheel Side

705401345

$41.51

57

CV Joint

705401344

$253.82

65

Yellow Reinforcement Disc

705401329

$78.43

66

Gasket | 4X4

705401618

$17.66

67

Ball Bearing | 4X4

705401606

$49.20

68

Ball Bearing | 4X4

705500260

$30.39

69

Needle Bearing | 4X4

705500261

Unavailable

70

Seal | 4X4

705500265

$16.12

71

O-Ring | 4X4

705500267

$6.25

72

Fill Level Plug | 4X4

705500504

$7.61

73

Copper Washer | 4X4

705500506

$0.36

74

Screw | 4X4

705401601

$9.29

75

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

76

Drain Plug | 4X4

705500894

$11.06

77

Pinion Gear Shim

705501162

$15.17

78

1/2 Oz Weight

219704465

$4.35

80

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

81

Wheel Hub

705501900

$129.20

82

Polyurethane Hose 10000Mm Long

219704410

$46.12

83

Drive Shaft Assembly

705402068

$230.74

84

Ens Differentiel*Differential Kit | 4X4

703500871

$710.74

84a

Pinion Gear Shim 1.67 mm

705502061

$16.12

84b

Shim | 4X4

705401604

$55.35

84c

Shim | 4X4

705401604

$55.35

85

Black, Rim | XXC

705401678

$244.58
