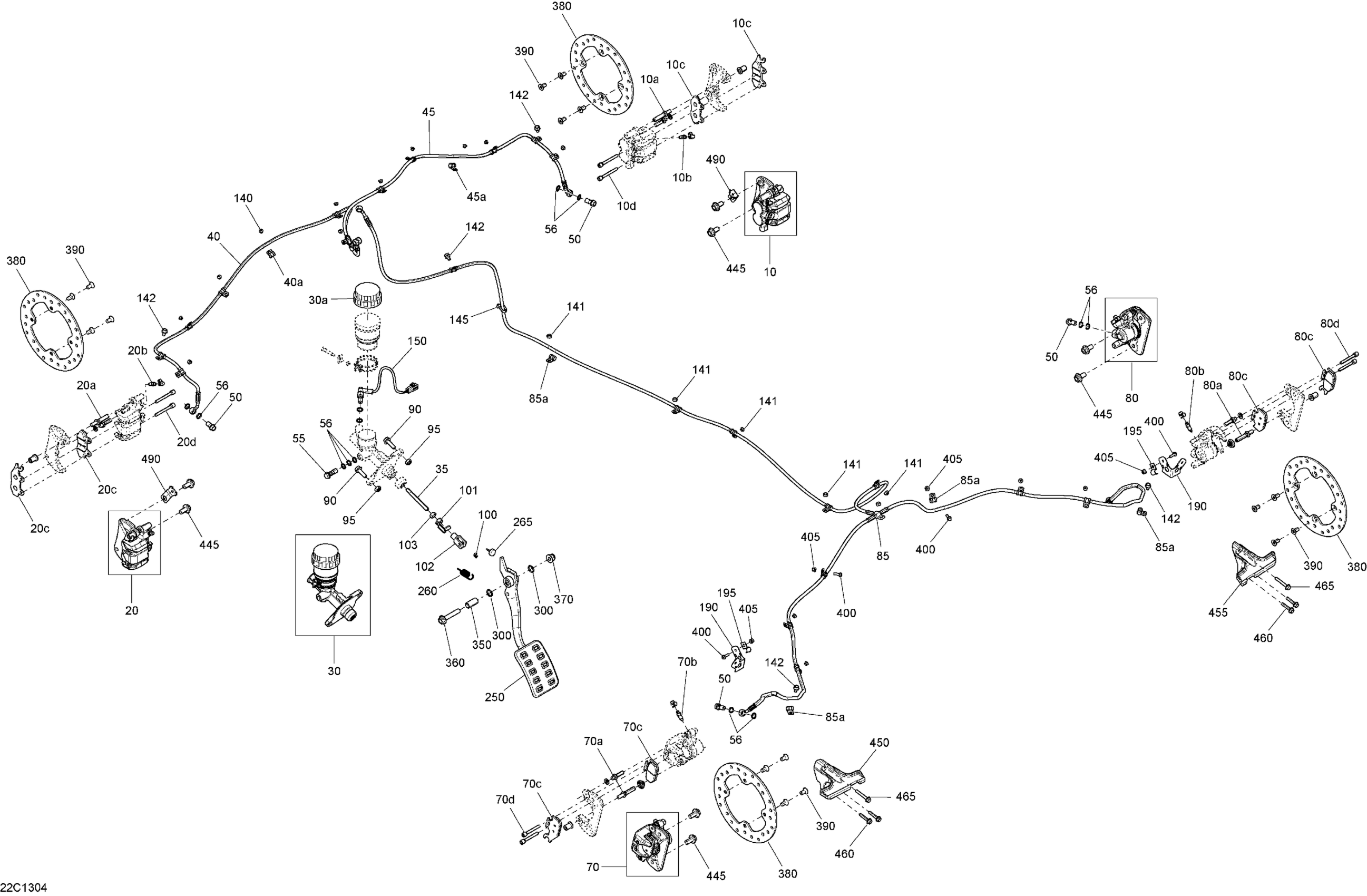

Can-Am Maverick 1000, STD, XRS, 2013 Brakes Diagram

#

Description
Price

10

RH Caliper | Includes 1 to 5

705600678

$219.97

10a

Spring Boot Bolt Kit

715500383

$17.66

10b

Bleeding Screw

705600080

$15.22

10c

RH Brake Pad Kit

715500336

$49.39

10d

Sliding Pin Kit

715500337

$18.43

20

LH Caliper | Includes 6 to 10

705600679

$218.49

20a

Spring Boot Bolt Kit

715500383

$17.66

20b

Bleeding Screw

705600080

$15.22

20c

LH Brake Pad Kit

715500335

Unavailable

20d

Sliding Pin Kit

715500337

$18.43

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

30a

Diaphragm Cap Kit

715500332

$27.66

35

Master Cylinder Rod

705600833

$18.43

40

LH Front Flexible Hose | Includes 40 to 40a

705601079

$78.43

40a

Clamp

293650256

$4.36

45

RH Front Flexible Hose | Includes 45 to 45a

705601080

$78.43

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Banjo Bolt

705600958

$7.60

56

Copper Washer

705601628

$4.34

70

LH Caliper Ass'y | Includes 70 to 70d

705601089

$208.99

70a

Spring, Protector And Bolt Kit

715500384

$23.05

70b

Bleeding Screw

705600080

$15.22

70c

LH Brake Pad Kit

705600398

$49.39

70d

Pin Set (2)

705600081

$19.20

80

RH Caliper Ass'y | Includes 80 to 80d

705601090

$208.99

80a

Spring, Protector And Bolt Kit

715500384

$23.05

80b

Bleeding Screw

705600080

$15.22

80c

RH Brake Pad Kit

705601147

$49.39

80d

Pin Set (2)

705600081

$19.20

85

FLEXIBLE HOSE - Call your local BRP dealership | Includes 85 to 85a

705601081

Unavailable

85a

Clamp

293650256

$4.36

90

Hex. Flange Screw M8 X 25

207682544

$0.90

95

Hex. Elastic Stop Nut M8

232581414

$0.47

100

Cotter Pin

371800700

$0.98

101

Pin

250400062

$7.12

102

Yoke

705600100

Unavailable

103

Hex. Nut M8

232081414

$0.60

140

Pop Rivet 3/16"

390402200

$0.26

141

Elastic Stop Nut M6

232561414

$1.55

142

Hex. Flange Screw M6 X 10

210261040

$1.25

145

Tie-Rap 180 mm

414115200

$0.09

150

Brake Switch

705600798

$50.74

190

Hose Support

705601160

Unavailable

195

Half Clip

705601161

Unavailable

250

Brake Pedal

705600724

$55.35

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

300

O-Ring

293300144

$3.98

350

Inner Spacer

705600815

$10.98

360

Hex. Flange Screw M10 X 55

207605544

$2.78

370

Hex. Flange Elastic Nut M10

233201414

$1.26

380

Disc Brake

705600999

$85.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Hex. Forming Screw M5 X 16

210251650

$0.92

405

Hex. Flange Elastic Nut M5

233251414

$1.66

445

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$1.72

450

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

455

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

460

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

465

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

490

Bracket

705601337

$2.69
