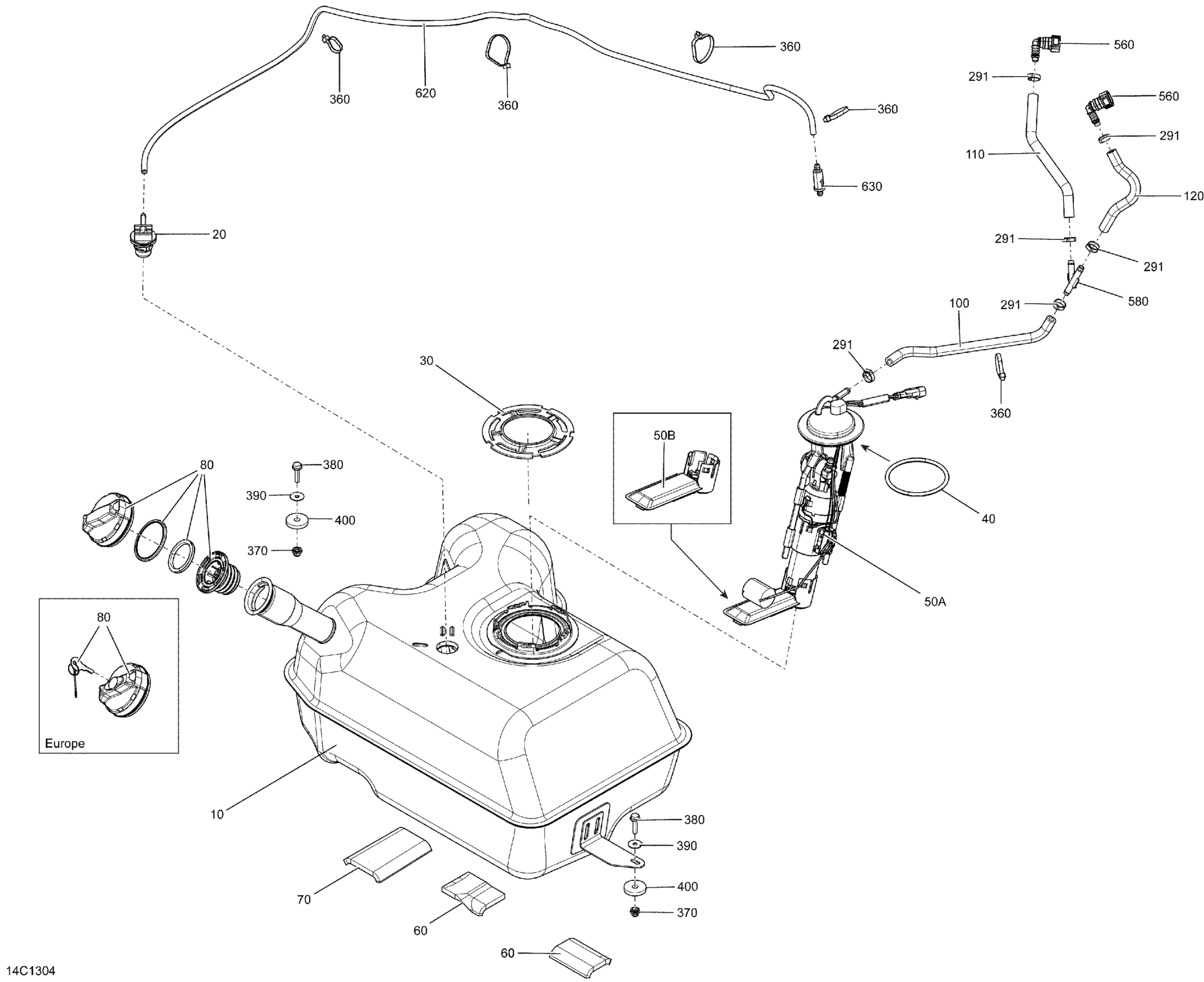

Can-Am Maverick 1000, STD, XRS, 2013 Fuel System Diagram

#

Description
Price

10

Fuel Tank

709000753

Unavailable

20

Rollover Valve

709000413

$50.72

30

Ring

709000274

$14.40

40

O-Ring

709000275

$15.64

50A

Fuel Pump | Includes 5 to 6

709000759

$353.87

50B

Fuel Pre-Filter Kit

709000389

$73.85

60

Neoprene Pad

709000288

$12.49

70

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

80

Fuel Cap | Except Europe

709000529

$28.18

80

FUEL CAP KIT - Call your local BRP dealership | Europe

715001124

Unavailable

100

Was 709000163 Fuel Line

219704440

$25.34

110

Was 709000163 Fuel Line

219704440

$25.34

120

Was 709000163 Fuel Line

219704440

$25.34

291

Oetiker Clamp

293650046

$2.67

360

Tie-Rap 180 mm

414115200

$0.10

370

Threaded Insert M6 X 1.0

250100242

Unavailable

380

Hex. Flange Screw M6 X 25

207662544

$0.61

390

Flat Washer

224060201

$1.12

400

Rubber Washer

293830037

$2.68

560

Quick Attach 90°

275500700

$14.48

580

Y-Fitting, 5/16''

293710136

$5.76

620

Polyurethane Hose 10000Mm Long

219704410

$52.96

630

Filter

709000330

$7.48
